Aluminium Sliding Door CP 155 Concept Patio System

Name: Aluminium Sliding Door CP 155 Concept Patio System
Brand: cTgs49c9Ki3Xneo5DTkEst
SKU: unNhVQvJPCJAdMFDCRVv9J

Reynaers Aluminium

Single, double and triple track, highly insulated aluminium sliding door in a choice of colour and finish.

Jump to:

+44 (0)121 4211999 www.reynaers.co.uk

Description

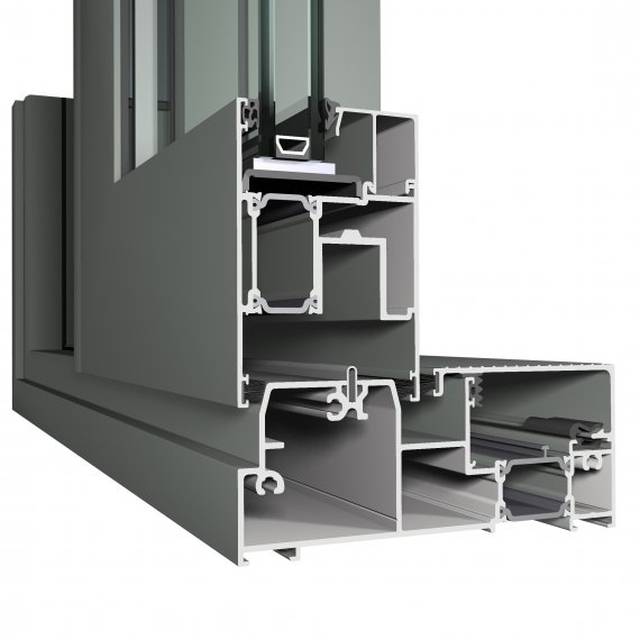

CP 155 Concept Patio® System is a premium insulated slide and lift-slide system, which meets the highest requirements with regard to insulation, stability and safety.

A complete range of solutions for all types of sliding patio door, it can be combined with CS 86 windows and doors, and Ventalis ventilation units.

Features and benefits:

Single, double and triple track, straight slide or lift and slide variants.

Monorail option with beaded fixing light for minimal appearance.

Accommodates sash weights of up to 400 kg.

Motorized versions with remote control.

Drained and ventilated glazing with EPDM synthetic rubber gaskets.

Choose from a full range of polyester powder coat colours and anodized finishes.

Dual colour available offering a different colour inside and out.

Weather stripped profiles with polyamide thermal breaks.

High insulation variant available.

10 year systems guarantee provided as standard.

Awarded the coveted Swiss Minergie® component accreditation for thermal performance.

Meets the very stringent requirements to be awarded the Secured By Design accreditation.

CAD and BIM details available on request.

Performance:

Air permeability: Up to 600 Pa (class 4).

Wind load resistance: Up to 1600 Pa (class 3).

Water tightness: Up to 600Pa (class 9A).

Acoustic performance: Rw (C;Ctr) = 35 (-2;-5) dB/ 42 (-1;-3) dB, depending on the glazing type.

Please refer to Reynaers product CE Passport certificates for clarification

Thermal insulation (to EN 10077-2:2012):

Double glazing: 1.8 W/m²K (Ud value depending on the frame/ vent combination and glass unit specification).

Triple glazing: 1.0 W/m²K (Ud value depending on the frame/ vent combination and glass unit specification).

Security:

PAS24:2012 (UK Secured By Design Standard) and RC2/ WK2 (European standard EN(V)1627–EN(V)1630 (windows).

Fixing:

Fixings must ensure the window is retained securely within the opening without damage or distortion to the window frame.

Generally, fasteners should be positioned 150 mm from each corner and each mullion/ transom, and at centres not exceeding 600 mm.

General information

Size	Refer to drawings or schedule.
Finish	Anodized Polyester powder coated Insert requirement.
Uniclass 2015	Pr_30_59_24_80 Sliding door and partition setsPrimary
CAWS	L20/520 Sliding doors L20/60 Doors

Specification data - Sliding door and partition sets

Product Reference	Aluminium CP 155 Concept Patio Aluminium CP 155-HI Concept Patio High Aluminium CP 155-LS Concept Patio Lift and Slide Aluminium CP 155-LS/HI Concept Patio Lift and Slide High Aluminium CP 155-Minergie Concept Patio
Configuration	Fixed Monorail Insert requirements: single or bi-parting sliding sash with beaded fixing light for minimal appearance. 2-rail Insert requirements: one or two sliding sash combinations or bi-parting sliding sash. 3-rail Insert requirements: two or three sliding sash combinations.
Size	Refer to drawings or schedule.
Finish	Anodized Polyester powder coated Insert requirement.
Colour	-
External	Insert requirement.
Internal	Insert requirement.
Glazing details	Insert details of glazing unit including, spacer type and dimension, glass type (emissivity, safety, solar, g value and energy factors) and thickness.
Ironmongery	-
Type	Horizon handles Orchid handles Shield handles Standard handles
Colour	Insert requirement.
Accessories	None Remote operation Ventalis trickle ventilator Window restrictor

Standard product features

Reynaers frame and components:

Aluminium profiles shall be extruded from EN AW-6060 (AlMgSi0.5 F22) aluminium alloy to comply with EN 573 – parts 3 and 4.

Designed and manufactured to comply with BS 4873.

Outer frame members shall be 155 mm front to back and square cut. All corner joints to be assembled with screwed corner joints and glued. All joints shall be sealed during fabrication against water entry.

Reynaers profiles are insulated with glass fibre reinforced polyamide strips, separating the internal and external faces, mechanically jointed and glued to form a single compound profile.

Dry glazed to accommodate a wide range of single, double and triple glazing units with internal clip-in aluminium glazing beads.

Weather-stripping to be EPDM extruded synthetic rubber gaskets to DIN 7863 and ISO 3934, set in undercut grooves in the frame and vent.

The Reynaers systems carry CE – Marking fully compliant with the EU Construction Products Directive (CPD) to the relevant product standard BS EN 14351-1 for windows and doors and BS EN 13830 for curtain walls.

Manufactured and supplied under the requirements of ISO 14001, the internationally accepted standard that outlines an effective environmental management system.

Manufactured and supplied under a quality system certified to BS EN ISO 9001: 2000.

Reynaers Aluminium guarantees that the Reynaers Aluminium systems meet the technical specifications and standards of the country and the product in question. The current processing and maintenance regulations mentioned in the Reynaers Aluminium catalogues determine the extent of this 10 year guarantee (five year guarantee for wearing parts).

Product Options

Product reference:

Aluminium CP 155 Concept Patio: straight sliding door system.

Aluminium CP 155-HI Concept Patio High: thermally enhanced straight sliding door system.

Aluminium CP 155-LS Concept Patio Lift and Slide: lift and slide sliding door for improved operation.

Aluminium CP 155-LS/HI Concept Patio Lift and Slide High: thermally enhanced lift and slide sliding door for improved operation.

Aluminium CP 155-Minergie Concept Patio: accredited enhanced thermal performance lift and slide sliding door.

Ironmongery:

- Horizon handles:

Available anodized, or powder coated in one of 250+ RAL colours.

Accessories:

- Ventalis trickle ventilator:

A controllable ventilation system with a self-regulating airflow. The patented self-regulating units automatically open and close the air inlet when wind pressure increases or decreases, keeping the incoming airflow constant. Acoustic option available to 34/43 Db (Windows and Doors), 36/45 Db (Sliding Doors).

Consult manufacturer for ironmongery recommendations and details.

Glazing:

4-52 mm single, double or triple glazing options. Contact the glass supplier for details of the glazing unit including, spacer type and dimension, glass type (emissivity, safety, solar, g value and energy factors), thickness and weight.
