Aluminium Rail and Pedestal System for Decking

Adjustable pedestal and aluminium rail joist system for supporting decking.

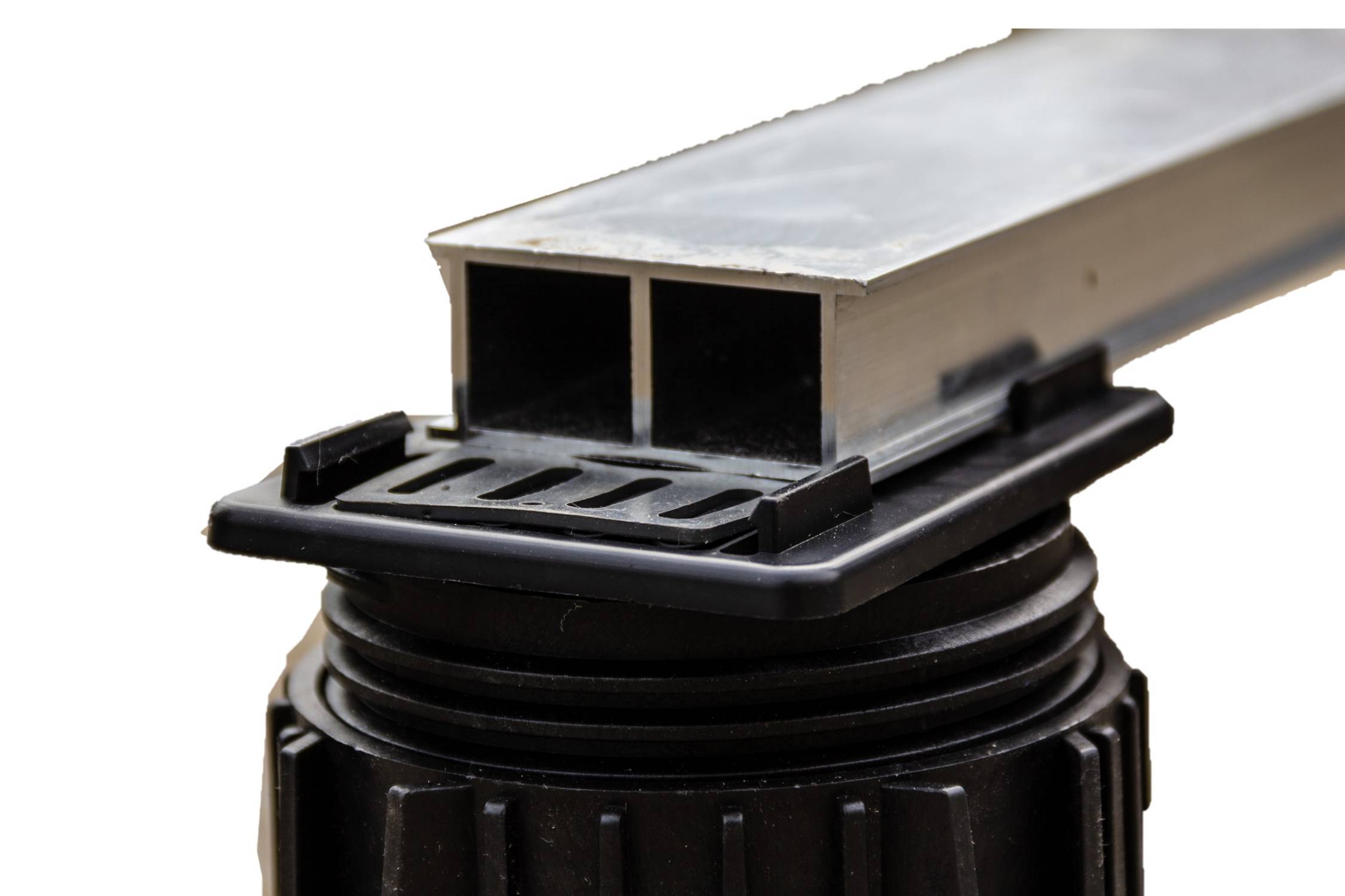

Includes integrated clip and locking mechanism for fixing the aluminium joist into adjustable height Minipads or Megapads. Deck boards are fixed to the rail/ joist.

Features and benefits:

• Includes aluminium box detailed rail, 20, 25 or 50 mm high (all 60 mm wide).
• Aluminium single I beam rail with seamless wing nut connection pieces also available, 50mm, 75mm or 100mm high (all 60 mm wide).
• Rail length 2, 2.5 or 3.6m long as standard, with longer, non-standard lengths available on request.
• Pedestal headpiece clips are installed on the headpiece of the pedestal.
• Fully integrated, mechanical-fixing-free substructure.
• Greatly enhances lateral stability.
• Allows pedestals to be placed at larger centres whilst maintaining weight tolerance.
• Ultra-low height threshold for decking; 30 mm from the floor to the underside of the deck board.
• Very high weight tolerance: 1560 kg, with a break point of 2057 kg.

Rail:

Aluminium I beam or double box profiled rail with upper and lower horizontal ledges to fit into headpiece clips.

Rail sizes:

• 20 mm x 60 mm x 2000 mm (2 mm thick).
• 25 mm x 60 mm x 2500 mm (2 mm thick) double box detail.
• 50 mm x 60 mm x 2500 mm (3 mm thick) double box detail.
• 50 mm x 60 mm x 3600 mm (3 mm thick) I beam detail.
• 75 mm x 60 mm x 3600 mm (3 mm thick) I beam detail.
• 100 mm x 60 mm x 3600 mm (3 mm thick) I beam detail.
• Alternative rail lengths available as non-standard products.

Pedestal head diameter:

150 mm.

Pedestal base plate diameter:

• Megapads: 200 mm.
• Minipads: 150 mm.

Pedestal to integrated rail clip height:

5 mm.

Pedestal to integrated rail clip width:

60 mm.

Pedestal loading:

• Minipad: 683 kg.
• Megapad: 1560 kg.

Maximum span between pedestals:

• 20 and 25 mm profile: 600 x 600 mm.
• 50 mm profile: 900 x 1200 mm.
