Aluminium Pro Trim
Verified by manufacturer 6 months ago
ETA060
ETA060

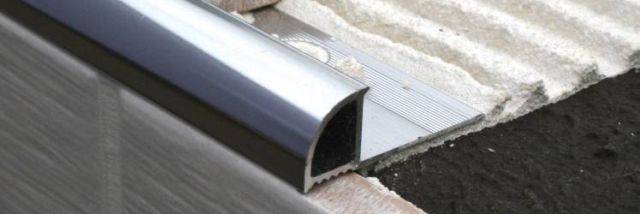

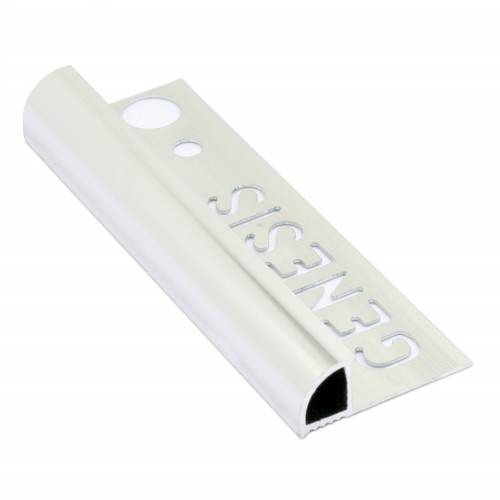

Aluminium profile with a quadrant face.
Application
Designed to protect the edge of ceramic or similar hard surface in wall or floor installations.
- Select ETA according to tile thickness.
- Trowel tile adhesive over the area that forms the perimeter of the tiled covering.
- Press the perforated anchoring leg of the ETA into the tile adhesive and align, mechanical fix if required
- Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
- Solidly embed the tiles so that the tiled surface is flush with the top of the profile, the profile should not be higher than the tiled surface.
- Fill the joint completely with grout.
Description
ETA aluminium profile offers a perfect quadrant face. Designed to protect the edge of ceramic or similar hard surface in wall or floor installations. Designed with a vertical anchor leg to give the front face more strength.
General information
Color | Black Silver White Yellow |
Finish | Matt Bright Brass Mill Brushed |
Material | Aluminium |
Length | 2500 mm |
Height | 6 mm 8 mm 10 mm 12 mm |
Uniclass | |
CAWS | M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/12 Mosaic to M40/120 Mosaic to M40/5 Tiling to M41/110 Terrazzo tiling M41/120 In situ terrazzo M41/130 Precast terrazzo M41/140 Marble tiling |
Product range |
Specification data - Floor edging strips
Material | Aluminium. |
Finish | Black 16.Bright brass effect 86.Mill Aluminium 80.Bright silver 91.Brushed effect 94.Matt silver 81.Mill aluminium 80.White 01. |
Cross section size | 2500 x 6 mm.Guidance for specification option: (L x D). |
Corners | ETC062. Guidance for specification option: External corner, depth: 6 mm. EAC082. Guidance for specification option: External corner, depth: 8 mm. EAC102. Guidance for specification option: External corner, depth: 10 mm. EAC122. Guidance for specification option: External corner, depth: 12 mm. EAC152. Guidance for specification option: External corner, depth: 15 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Literature
ETA Datasheet
