Application

Internal and external applications.

Description

Aluminium and PVC coving designed to eliminate corners.


Features and benefits:

  • Create fully flushed corner transitions and seamless wall-ceiling connections.
  • Corner cups available for three-way connecting coving.

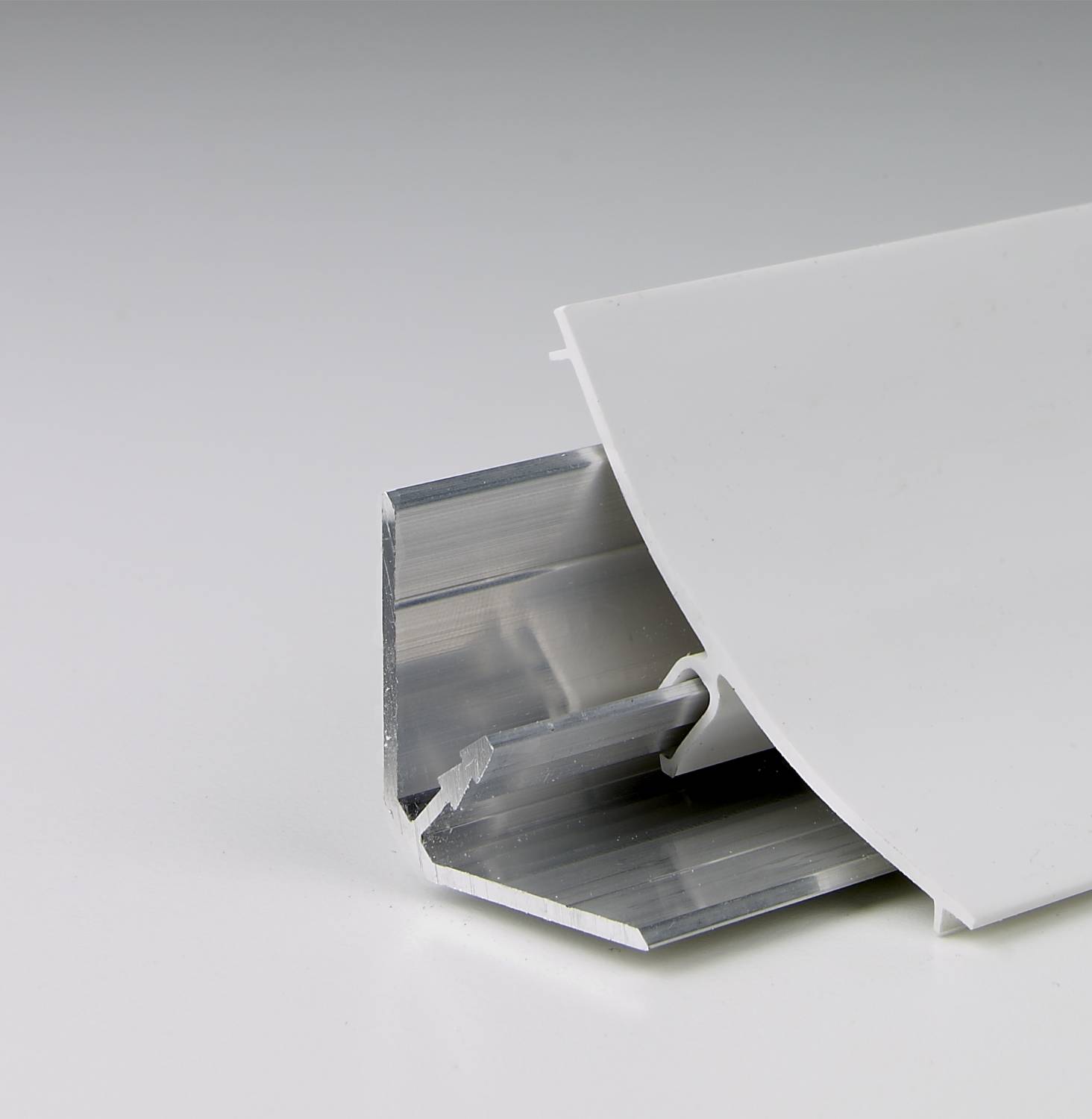

  • Supplied in two parts, the coving provides a rounded, flush and easy to clean corner.
  • Coving provides a way to eliminate 90° angles within the cleanroom environment.

General information

Color

White

Material

Aluminium

Guidance for specification option:

Backing angle.

PVC

Guidance for specification option:

Facing.

Shape

Other

Length

4000 mm

Width

65 mm

Warranty description

Nine year

Uniclass

Pr_35_90_43_12 Ceiling perimeter trimsPrimary

CAWS

K40/260 Perimeter trims

P20/170 Proprietary

P20/30 Proprietary

Specification data - Ceiling perimeter trims

Fixing

Backing angle fixed with screws and coving clips into place.

Sealing

Coving can be sealed at either edge with proprietary sealant.

Standard

FM approved, BRE global certification, ASTM certification.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Guidance for specification option:

Backing angle.

PVC

Guidance for specification option:

Facing.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

35 %

BIM objects

Platform Compatible Version
Revit
-

1

Literature

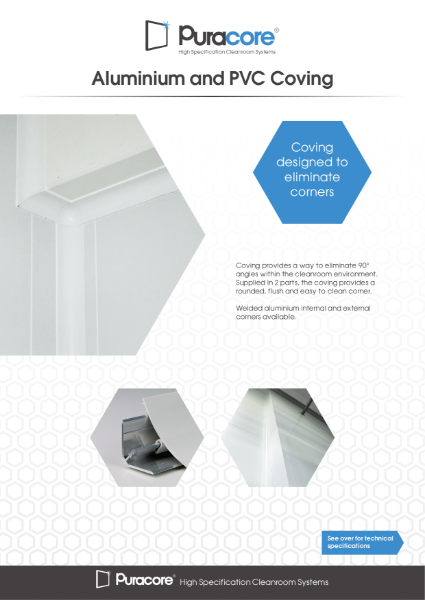

Aluminium-PVC-Coving

Aluminium-PVC-Coving
