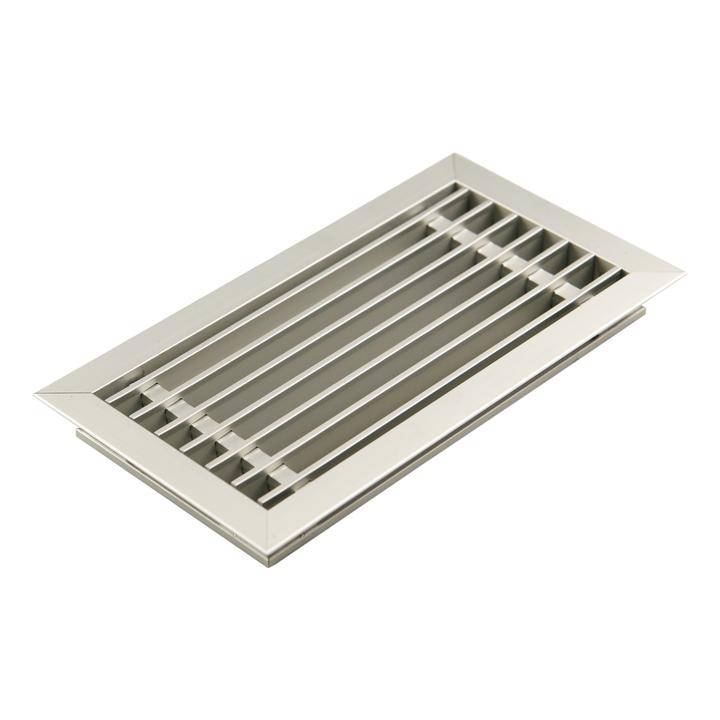

Aluminium Linear Bar Grille 392

Verified by manufacturer 2 months ago

392/2 Vent with Z-frame with stop

Renson Fabrications Ltd Variant:

Linear bar grille.

Jump to:
+44 (0)1622 754123 Website

Application

Radiator frame - applied with radiator casings.

Description

Aluminium tablet vent light version, applied with radiator casings.


Features and benefits:

  • Invisible installation.
  • Lightweight construction.
  • Not walkable.
  • Manufactured from aluminium profiles AlMgSi 0.5 (according EN 12020-2).
  • Stainless steel 304 mesh (2.3 x 2.3 mm) as standard.
  • Anodized or powder-coated finish.
  • No fasteners.
  • With or without flanged 'Z' frame.
  • Minimum dimensions: 100 x 60 mm.

General information

Color

Grey

Other

Finish

Anodized

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_70_65_04_03 Air grillesPrimary

CAWS

U90/380 Room extract grilles

P31/370 Access covers/ gratings

Product range

Louvres / Linear Bar Grilles

Specification data - Air grilles

Application

Extract.

Duty

-

Size

Guidance for specification option:

Insert requirements.

  • Length linear bar grille: 130 mm (minimum); 3500 mm (maximum) from 1600 mm multiple grille elements.
  • Width linear bar grille: 55 mm (minimum); 311 mm (maximum).
  • Minimum dimensions: 100 x 60 mm.
  • Effective opening: length and width – 50 mm.

Shape

Linear.

Grille type

Bar.

Guidance for specification option:

  • Bars arranged lengthwise.
  • Bar spacing: 10 mm.
  • Grille section: 16 x 3 mm.

Position

Radiator frame.

Material

Aluminium.

Finish

Anodized.

Guidance for specification option:

  • Anodized (grey) in satin colour.
  • Insert requirements.

Powder-coated, RAL colour.

Guidance for specification option:

  • Layer thickness: 40 microns.
  • Insert requirements.

Powder-coated, Syntha Pulvin colour.

Guidance for specification option:

  • Layer thickness: 40 microns.
  • Insert requirements.

Deflection

15°.

Air flow

K-factor (entry) to EN 13030, 5.71.
K-factor (discharge) to EN 13030, 5.71.

Free area

Visual free area: 76%.
Physical free area: 76%.

Weather performance

To BS EN 13030, Class 1.

Guidance for specification option:

  • Ce coefficient 0.419.
  • Cd coefficient 0.419.

Manufacturer guidance

Discharge loss coefficient (minimum).

Frame

With flanged “Z” frame.

Without flanged “Z” frame.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

100% recyclable
