Aluminium Gutter - Strongline - Gutter

Verified by manufacturer 13 days ago

J57S UP (Anodised Finish)

Dales Fabrications Ltd - Aluminium Eaves Products Variant:
Third party certifications:

  • ISO 9001 Quality Management

    Certificate type

  • Independent sustainability assessment

    Independent sustainability assessment

    Certificate type

  • EN 13501-1 (Efectis)

    EN 13501-1 (Efectis)

    Certificate type

  • R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

    R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

    Certificate type

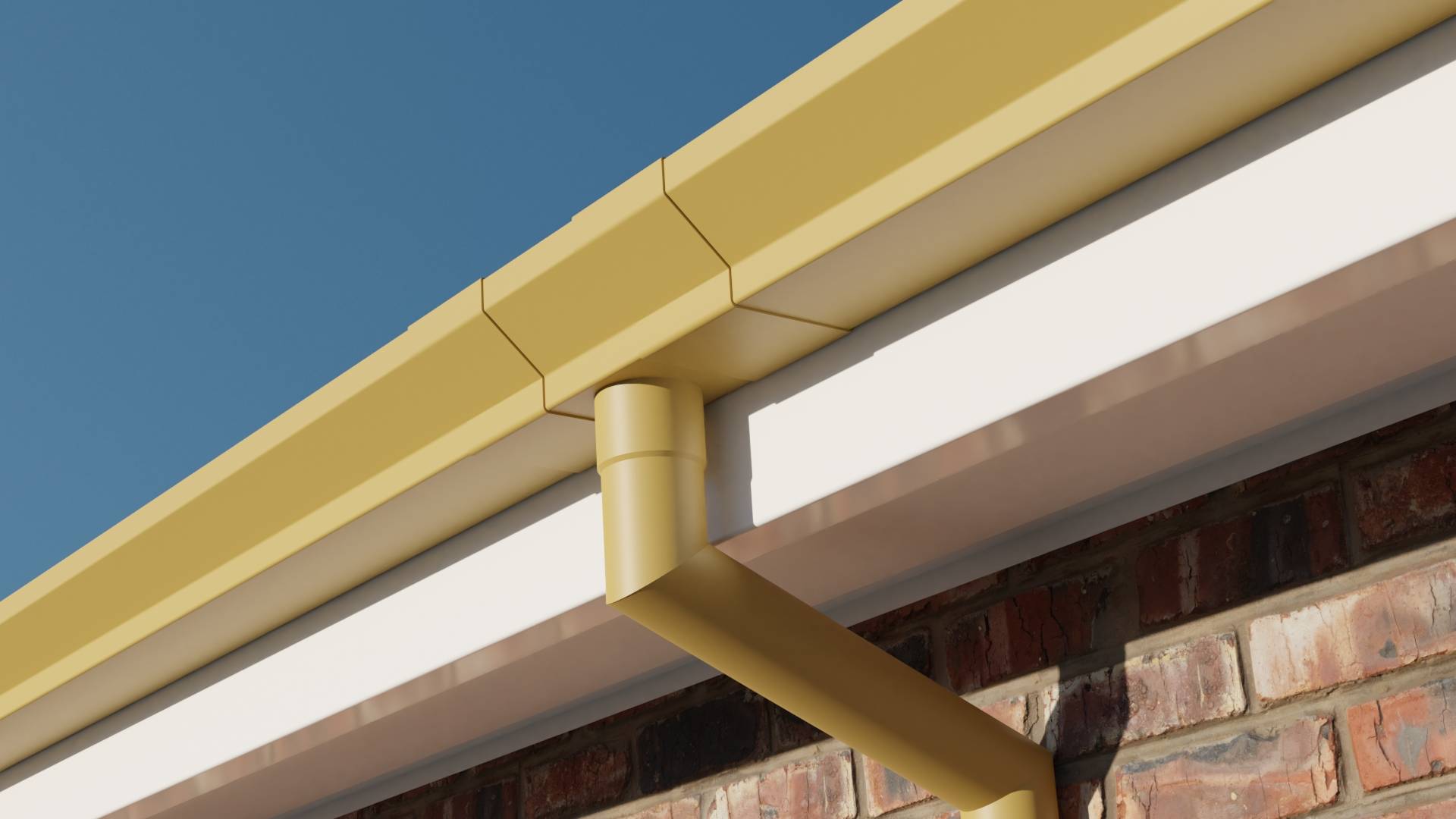

Aluminium gutter for domestic scale use, strongly indented front face, 138 x 104 mm.

Jump to:
BOS
 +44 (0)115 9301521 Website

Application

  • Residential.
  • Education.
  • Healthcare.
  • Commercial.
  • Leisure.
  • Mixed Use.
  • Infrastructure.
  • Retail.


Description

Dales Strongline gutter offers an attractive appearance, longevity and economy. Dales over-strap joint system with silicon sealant allows for aluminium’s high coefficient of expansion. This ensures leak-free joints whatever the temperature.


Features and benefits:

  • Polyester powder coated to BS 12206-1:2004.
  • Available in gloss, matt and satin (subject to availability).
  • Also available anodized.
  • A wide range of standard components are available.
  • Purpose-made components can be manufactured to suit individual projects.

General information

Color

-

Manufacturer guidance

Refer to manufacturer's website for available colour choices.

Finish

Powder-coated

Guidance for specification option:

(Polyester)

PPC - Matt.

PPC - Satin.

PPC - Gloss.

Also available in special effect:

PPC - Timber grain.

PPC - Corten.

PPC - Simulated anodized.

Metallic

Guidance for specification option:

PPC - Metallic.

Anodized

Material

Aluminium

Shape

Rectangle

Length

3000 mm

Width

140 mm

Height

90 mm

Warranty description

25 year

Guidance for specification option:

Contact manufacturer for further details.

Uniclass

Pr_65_50_35_06 Aluminium eaves guttersPrimary

CAWS

R10/11 Aluminium gutters

R10/311 Aluminium gutters

Product range

Gutters / Strongline gutters
Gutters / Domestic & Strongline Model

Specification data - Aluminium eaves gutters

Form

Pressed to BS 9101:2017.

Profile

Indented front face.

Size (nominal width)

140 mm.

Thickness or gauge

1.5 mm.

Finish

Anodized.

Colour

ANOLOK BRONZE 541.

ANOLOK BRONZE 543.

ANOLOK BRONZE 545.

ANOLOK BRONZE 547.

ANOLOK BRONZE 549.

ANOLOK BRONZE 54B.

ANOLOK II BLUE-GREY B711.

ANOLOK II BLUE-GREY B713.

ANOLOK II BLUE-GREY B715.

ANOLOK II BLUE-GREY B717.

ANOLOK II STONE GREY.

UA 100-0.

Guidance for specification option:

Lime green.

UA 100-1.

Guidance for specification option:

Yellow.

UA 100-2.

Guidance for specification option:

Dark grey / black.

UA 100-A.

Guidance for specification option:

White / beige.

UA 120-0.

Guidance for specification option:

Yellow / brown.

UA 120-1.

Guidance for specification option:

Light brown.

UA 120-2.

Guidance for specification option:

Brown.

UA 130-0.

Guidance for specification option:

Light red.

UA 130-1.

Guidance for specification option:

Red.

UA 130-2.

Guidance for specification option:

Red /brown.

UA 140-0.

Guidance for specification option:

Dark red.

UA 140-1.

Guidance for specification option:

Pink.

UA 150-0.

Guidance for specification option:

Light blue.

UA 150-1.

Guidance for specification option:

Dark blue.

UA 150-2.

Guidance for specification option:

Metallic.

UA 160-1.

Guidance for specification option:

Dark blue.

UA REGENCY GOLD 1.

UA REGENCY GOLD 2.

UA REGENCY GOLD 3.

Film thickness (minimum)

60 microns.

Texture

Gloss.

Guidance for specification option:

Subject to availability: www.dales-eaves.co.uk/finishes/

Matt.

Guidance for specification option:

Subject to availability: www.dales-eaves.co.uk/finishes/

Satin.

Guidance for specification option:

Subject to availability: www.dales-eaves.co.uk/finishes/

Corners

Not required.

ST-05-090-E 90° external corner.

ST-05-090-I 90° internal corner.

ST-05-135-E 135° external corner.

ST-05-135-I 135° internal corner.

Show more

Outlets

ST-04-076-D 76.2 mm round outlet.

ST-04-076-S 76.2 mm square outlet.

ST-04-101-D 101.6 mm round outlet.

ST-04-101-S 101.6 mm square outlet.

As drawing ___.

Show more

Stop end

ST-03-000-L left hand stop end.

ST-03-000-R right hand stop end.

As drawing ___.

Contractor's choice.

Joint strap

ST-02-000-X.

Length

3 m.

Size

140 x 90 mm.

Capacity

2.47 L/s.

Guidance for specification option:

Gutter.

2.26 L/s.

Guidance for specification option:

76.2 mm round outlet.

2.82 L/s.

Guidance for specification option:

76.2 mm square outlet.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
 -

1

Revit
 -

2

Third party certifications

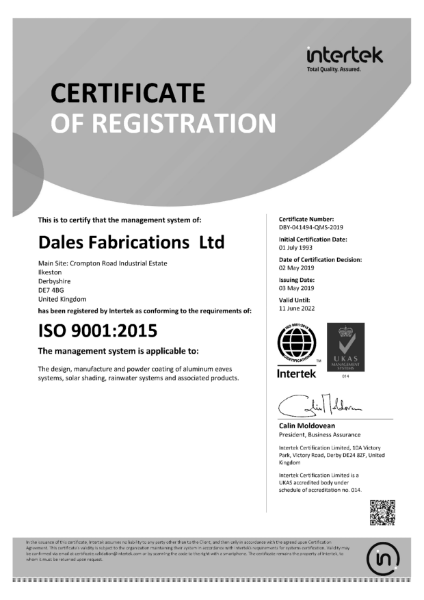

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Assurance

Independent sustainability assessment

Independent sustainability assessment

CLOSED LOOP RECYCLING SCHEME (CAB)

EN 13501-1 (Efectis)

EN 13501-1 (Efectis)

INTERPON-D PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION

R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

SYNTHA PULVIN PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION

Literature

ISO 9001 Quality Assurance

ISO 9001 Quality Assurance

Syntha Pulvin Fire Certificate

Syntha Pulvin Fire Certificate

Domestic and Strongline Gutter Range

Domestic and Strongline Gutter Range
