Application

Residential front door.

Description

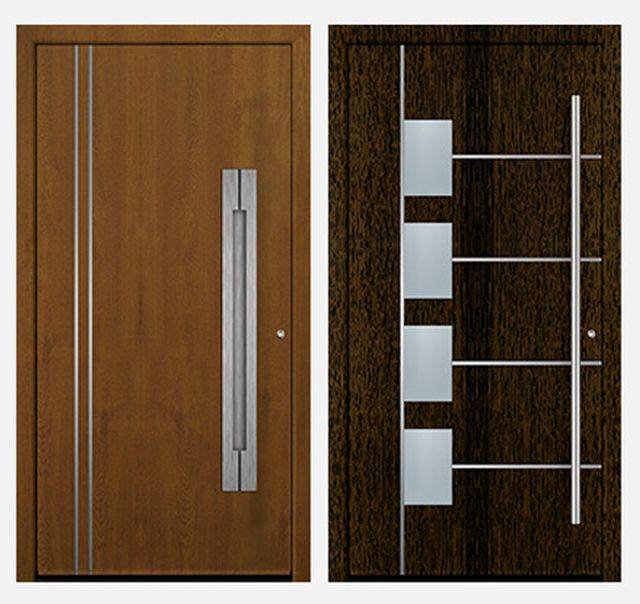

Aluminium doorset with 94 mm thick leaf and rounded door frame. The door leaf is completely covered, creating a very modern door design.

As a standard feature, three seals along the entire edge of the door provide a high level of wind and weather proofing.

Features and benefits:

  • Various model designs are available.
  • Stable corner joints: Mitred profiles are screwed, glued and bolted together.
  • Security pins: Two pin retainers in the upper and lower part of the hinge side prevent the door from being levered out of the frame in the event of attempted burglary.
  • Many RAL colours are available, with seven standard colours.
  • 16 types of highly realistic powder coated wood-grain finishes.
  • Six types of glazing and a variety of glazing designs are available.
  • Compliant with BS EN 14351-1.

Applications:

Residential front door.

General information
Size

As drawing

Insert reference.

As schedule

Insert reference.

Material

Aluminium

Uniclass 2015 Metal doorsets (Pr_30_59_24_52)
Specification data
Product Reference

Aluminium Entrance Door Premium

Size

As drawing

Insert reference.

As schedule

Insert reference.

Design

Insert requirement from manufacturer's literature.

Configuration

Single leaf

Double leaf

Finish/ Colour

As design

Polyester powder coated

See 'Options' and insert requirement.

Wood effect

See 'Options' and insert requirement.

Glazing

Chinchilla white

Float sandblasted

Mastercarré white

Masterpoint white

Mastershine white

Ornament 504 white

Silvit white

Over/ side panels

Insert requirements.

Interior handle

18600

Standard, RAL 9016, EV1, C34.

18600/0053

Stainless steel.

18900

DALLAS, stainless steel.

18120/9016

With long plate.

18120/0053

With long stainless steel plate.

18901

STOCKHOLM, stainless steel.

Cylinder -
Type

26105

Standard.

26050

Knob cylinder.

Knob

Not applicable

For standard cylinder

27701, RAL 9016

EV1, C34.

27701, stainless steel

27900

DALLAS, stainless steel.

27901

STOCKHOLM, stainless steel.

Rosette

19023

Standard.

190XX

Armoured rosette, cylinder overlay.

Locking

20027

GU Security automatic lock with three-point deadlocked latchbolt.

20028

GU Security automatic lock with three-point deadlocked latchbolt and A-opener function.

20066

Standard, three-point hook bolt lock.

20070

Five-point hook bolt lock, includes solid bolt.

Hinges

23040

Standard, RAL 9016, EV1, C34.

23061

Concealed hinge.

23091

Roller hinge, RAL 9016, EV1, C34.

Door sill

Thermally insulated aluminium door sill

Standard, for older buildings.

Polyvinyl chloride (PVC) floor recess profile, 25 mm

For new builds.

Polyvinyl chloride (PVC) floor recess profile, 50 mm

For new builds.

Polyvinyl chloride (PVC) floor recess profile, 100 mm

For new builds.

Accessories

None

18903

Security door fitting.

22055

ENTRAsys finger scanner.

26020

Security identify card.

699523

Classic handheld transmitter.

699626

Slider handheld Transmitter.

900088/89

Scratch guard for profile cylinder face.

Base trim

Insert requirement.

Special order

Insert requirements.

Standard product features

Material:

Aluminium.

Door leaf depth:

94 mm.

Glazing:

Triple thermal insulation glazing P4A/ WSG 9.5 mm thick on exterior, decorative pane in middle and float on interior.

Sealing:

Four-sided continuous centre bar and interior seals along entire edge. Three-sided exterior seal along edge.

Weather strip:

Drains water away from sill area, riveted to door panel.

Bar push/ pull handles:

Dependent on chosen design. Consult manufacturer for details.

U-value:

Dependent on chosen design but can be up to 0.71 W/m2K. Consult manufacturer for details.

Product Options

Finish/ Colour:

- Polyester powder coated:

  • Standard colours: Anthracite grey - Similar to RAL 7016, Brown - Similar to RAL 8077, Grey aluminium - Similar to RAL 9007, Spec-effect varnish - DB 703, White aluminium - Similar to RAL 9006, Wine red - Similar to RAL 3005.
  • Custom RAL colours: Available in fine texture, glossy or matt finishes on both sides of door and panel (exterior and interior), or custom RAL on door and panel exterior with interior in Traffic white, similar to RAL 9016.

- Wood effect:

Ash - FD008, Cherry - FD005, Cherry, Rustic - FD009, Douglas Fir - FD003, Golden Oak - FD017, Golden Oak, Dark - FD011, Mahogany - FD016, Mature Timber - FD024, Oak Board - FD023, Oak, Dark - FD013, Oak, Gold - FD006, Oak, Light - FD019, Oak, Rustic Dark - FD018, Rusted - FD021,Sapeli - FD020 or Wenge - FD012 finishes available.
