Stick curtain wall facade system. Mullion drained stick curtain wall facade with multiple options for capping.

Jump to:
+44 (0)121 4211999 Website

Application

The system is available in several design and glazing variants, including different technical variants to comply with specified levels of fire-resistance and thermal insulation.


The design variants offer solutions for both the exterior and the interior of the building. The glazing variants range from using standard pressure plates, to structurally glazed and structurally clamped solutions.

Description

Curtain Wall CW 50 is a 50 mm facade and roof system that offers unlimited design freedom and allows maximum transparency. Innovative solutions contribute towards the tendency of big heavy and high insulated glass panes.


The system is available in several design and glazing variants, but also includes different technical variants to comply with specified levels of fire-resistance and thermal insulation, along with blast resistance as options.


The design variants offer solutions for both the exterior and the interior of the building. The glazing variants range from using standard pressure plates, to structurally glazed and structurally clamped solutions.


Features and benefits:

  • Pressure-equalized stick-type curtain wall.
  • Profiles manufactured from extruded EN AW-6060 (AlMgSi0.5 F22) aluminium alloy to comply with EN 573-3 and -4.
  • Available with or without mullion and transom caps and a range of capping depths.
  • Infills include vision and spandrel panels, inward and outward opening windows and doors.
  • Supports up to 150, 310 and even 450 kg in various glass support configurations.
  • Structural box sizes from 41 to 300 mm to suit application.
  • Concealed casement options in open in or open out configurations.
  • Roof application pitches from 5 to 75 degrees with integral opening lights.
  • Drained and ventilated glazing with EPDM synthetic rubber gaskets.
  • Choose from a full range of polyester powder coat colours and anodized finishes.
  • Dual colour available offering a different colour inside and out.
  • Ten-year systems guarantee provided as standard.
  • Corresponds to the BRE Global Green Guide online generic specification for curtain wall and achieves a summary rating of B or C.
  • Dry glazed and weather-stripping with EPDM extruded synthetic rubber gaskets to DIN 7863 and ISO 3934, set in undercut grooves in the mullion and transom.
  • CE Marking fully compliant with the EU Construction Products Directive (CPD) to the relevant product standard BS EN 14351-1 for windows and doors and BS EN 13830 for curtain walls.
  • CAD and BIM details available on request.

General information

Color

-

Manufacturer guidance

Reynaers offers more than 450 colour AAMA finishes for their frames, including natural, champagne, bronze, and black 12. The AAMA classifications refer to durability and humidity exposure resistance, with higher numbers indicating longer-lasting finishes 2. Please contact us direct for further information.

Finish

Anodized

Powder-coated

Material

Aluminium

Glass

Shape

-

Manufacturer guidance

Various capping, mullion and capping details available. Please contact Reynaers Aluminium Ltd direct for further information.

Length

Bespoke

Width

Bespoke

Guidance for specification option:

Frame width 50 mm.

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

Standard system guarantee (five-year guarantee for wearing parts).

Uniclass

Ss_25_10_20_85 Stick curtain walling systemsPrimary

CAWS

H11/110 Curtain walling

Specification data - Stick curtain walling systems

Framing

-

Frame members

Aluminium curtain wall frame sections, colour/ finish.

Guidance for specification option:

Colour/ finish:

  • Profiles can be powder coated in a range of RAL or ‘Coatex’ colours to APA Qualicoat standard or BS EN 12206-1:2004, or anodized in satin or bronze colours to EWAA/ EURAS-Qualanod standard or BS 3987:1991.
  • Profiles can be finished with different internal and external colours, powder coated or anodized.

Consult manufacturer and insert requirements.

Fasteners

Manufacturer's standard.

Cladding units

-

Glass units

Double glazed.

Guidance for specification option:

Insert requirements; 6–62 mm.

Include details of spandrel and/ or vision panels as required.

Triple glazed.

Guidance for specification option:

Insert requirements; 6–62 mm.

Include details of spandrel and/ or vision panels as required.

Single glazed.

Guidance for specification option:

Insert requirements; 6–62 mm.

Include details of spandrel and/ or vision panels as required.

Manufacturer guidance

Glazing units: Gaskets, cover plate fixed.


Contact the glass supplier for details of the glazing unit including, spacer type and dimension, glass type (emissivity, safety, solar, G-value and energy factors), thickness and weight.


Glass to be set against extruded EPDM rubber gaskets retained in undercut grooves within the aluminium profile.

Panels and facings

-

Material

-

Manufacturer guidance

Insert requirements, including:

Panel type, external material/ finish/ colour and core insulation.


Finish/ colour:

  • Powder coated in a range of RAL or ‘Coatex’ colours to APA Qualicoat standard or BS EN 12206-1:2004, or anodized in satin or bronze colours to EWAA/ EURAS-Qualanod standard or BS 3987:1991.
  • Can be finished with different internal finish/ colour; internal details specified under Internal linings below.

Thermal insulation

-

Manufacturer guidance

Insert requirements.

Internal linings

-

Manufacturer guidance

Insert requirements (internal material/ finish/ colour).


Can be powder coated in a range of RAL or ‘Coatex’ colours to APA Qualicoat standard or BS EN 12206-1:2004, or anodized in satin or bronze colours to EWAA/ EURAS-Qualanod standard or BS 3987:1991.

Fasteners

-

Manufacturer guidance

Insert requirements.

Perimeter seals

None.

Perimeter flashings.

External cover cap

Aluminium, colour/ finish.

Guidance for specification option:

Colour/ finish:

  • Can be powder coated in a range of RAL or ‘Coatex’ colours to APA Qualicoat standard or BS EN 12206-1:2004, or anodized in satin or bronze colours to EWAA/ EURAS-Qualanod standard or BS 3987:1991.
  • Profiles can be finished with different internal and external colours, powder coated or anodized.

Insert 'As Framing members.' or consult manufacturer and insert requirements.

Incorporated components

None.

Doors.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Opening lights.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Sun screens.

Guidance for specification option:

Sun screen systems from a range of Brise Soleil components; consult the manufacturer and insert requirements.

Manufacturer guidance

CW 60 concealed inserts, top hung, parallel opening options available. Consult the manufacturer for details and insert requirements.

Air permeability

Up to 1200 Pa (class AE1200).

Guidance for specification option:

Refer to manufacturer’s product CE Passport certificates for clarification.

Watertightness

Up to 1200 Pa (class RE1200).

Guidance for specification option:

Refer to manufacturer’s product CE Passport certificates for clarification.

Resistance to wind load

Up to 2000 Pa (class 5).

Guidance for specification option:

Refer to manufacturer’s product CE Passport certificates for clarification.

Acoustic performance

Rw (C;Ctr) = 33 (-1;-3) to 60 (-2;-6) dB.

Guidance for specification option:

Depending on the glazing type specified.

Security

RC2/ WK2 and RC3/ WK3 (European standard EN 1627–EN 1630).

Third-party certification

Tested and certified in accordance with the relevant BS EN and Centre for Window and Cladding Technology (CWCT) Curtain Wall Standards (tested and certified to the CWCT Standard Sequence B).

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Aluminium

Glass

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

On a project specific basis Reynaers can offer 75% + post consumer scrap. Please contact Reynaers direct for further information.

Recyclability

-

Manufacturer guidance

Aluminium is one of the most recycled materials on Earth and can be recycled endlessly into itself. It is 100% recyclable and retains its properties indefinitely

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

​Due to the global limited availability of recycled aluminium, the objective to increase recycled content to 75% doesn't have any environmental benefit. Increasing recycled content for 1 project or product only means other projects/products contain less.

However, Reynaers Aluminium works closely together with its suppliers to ensure a correct % of recycled content. As there is a variation between the recycled content provided by these suppliers, we communicate the annual averages.


For specific projects, Reynaers Aluminium can select a supplier with high recycled content, possibly with price impact and extended delivery times.


​To improve the environmental impact of aluminium, Reynaers Aluminium focusses on following important aspects:

  • Use recycled content: work together with suppliers to ensure the use of recycled content.
  • Purchase low carbon primary aluminium: decrease the CO2 impact of the primary aluminium, which is necessary for the production of extrusion billets, by using low carbon primary aluminium, produced by green electricity (primarily hydro power).
  • Work closely together with European Aluminium to improve the global impact of aluminium production, and improve sorting and recycling.

This approach has the most impact as it combines short term with long term improvements of the aluminium industry, to make a clear environmental shift.



Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

QMS ISO 9001

Cradle to Cradle Certified

Cradle to Cradle Certified

C2C Bronze Certificate

Literature

Aluminium Curtain Walling System - CW 50

Aluminium Curtain Walling System - CW 50

Case Study: Ambar Centre, featuring CW 50 aluminium curtain wall

Case Study: Ambar Centre, featuring CW 50 aluminium curtain wall

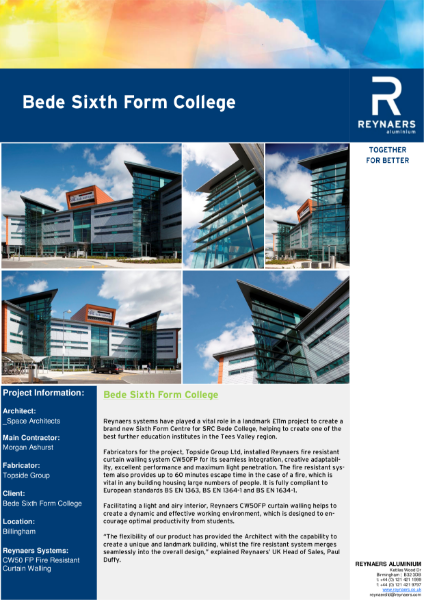

Case Study: Bede Sixth Form College, featuring CW 50-FP fire resistant curtain wall

Case Study: Bede Sixth Form College, featuring CW 50-FP fire resistant curtain wall

Case Study: Broadway One, featuring CW 50 curtain wall

Case Study: Broadway One, featuring CW 50 curtain wall

Case Study: Clydebank College, featuring CW 50 curtain wall

Case Study: Clydebank College, featuring CW 50 curtain wall

Case Study: Coca Cola, featuring CW 50 curtain wall

Case Study: Coca Cola, featuring CW 50 curtain wall

Case Study: Matchmaker's Wharf, featuring CW 50 aluminium curtain wall

Case Study: Matchmaker's Wharf, featuring CW 50 aluminium curtain wall

Case Study: The Cooperative Supermarket, Reynaers CW 50 aluminium curtain wall

Case Study: The Cooperative Supermarket, Reynaers CW 50 aluminium curtain wall

Case Study: Eleven Brindleyplace, featuring aluminium curtain wall

Case Study: Eleven Brindleyplace, featuring aluminium curtain wall

Case Study: Radisson Hotel, East Midlands Airport, featuring CW 50 aluminium curtain wall

Case Study: Radisson Hotel, East Midlands Airport, featuring CW 50 aluminium curtain wall

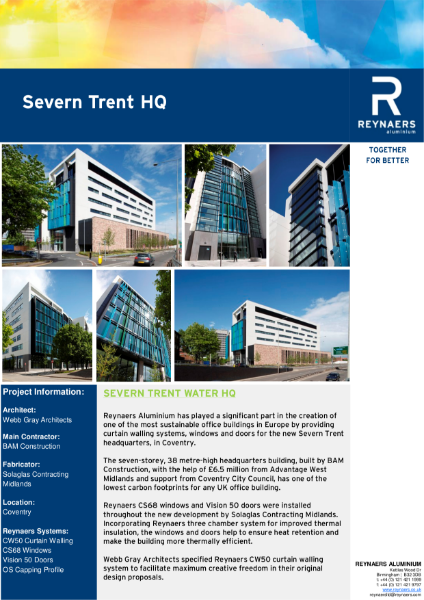

Case Study: Severn Trent HQ, featuring aluminium windows, doors and curtain walls

Case Study: Severn Trent HQ, featuring aluminium windows, doors and curtain walls

ISO 14001:2004 Certificate

ISO 14001:2004 Certificate

ISO 50001:2011 Certificate

ISO 50001:2011 Certificate

ISO 9001:2008 Certificate

ISO 9001:2008 Certificate

Product Overview Brochure for Aluminium Windows, Doors, Curtain Walls, Sliding Systems, Ventilation and Sunscreen Shading

Product Overview Brochure for Aluminium Windows, Doors, Curtain Walls, Sliding Systems, Ventilation and Sunscreen Shading

Reynaers Aluminium Professional Services Brochure

Reynaers Aluminium Professional Services Brochure

Reynaers Aluminium Reference book

Reynaers Aluminium Reference book

Reynaers EPDs

Reynaers EPDs

Case studies

Sainsbury’s Maidenhead featuring Reynaers CW 50-SC aluminium curtain walling system

Sainsbury’s Maidenhead featuring Reynaers CW 50-SC aluminium curtain walling system

Wembley Park featuring Reynaers CW 50 aluminium curtain walling system

Wembley Park featuring Reynaers CW 50 aluminium curtain walling system

Cleland House, featuring Reynaers CS 77 aluminium windows and CW 50 curtain wall

Cleland House, featuring Reynaers CS 77 aluminium windows and CW 50 curtain wall

Eleven Brindleyplace featuring Reynaers CW50 and CW60 aluminium curtain walling systems

Eleven Brindleyplace featuring Reynaers CW50 and CW60 aluminium curtain walling systems

Fulham Reach featuring Reynaers Aluminium curtain wall, sliding doors and solar shading solutions

Fulham Reach featuring Reynaers Aluminium curtain wall, sliding doors and solar shading solutions

Prestigious Vista Luxury Apartments, London, featuring Reynaers aluminium sliding doors, curtain wall and windows

Prestigious Vista Luxury Apartments, London, featuring Reynaers aluminium sliding doors, curtain wall and windows

Reynaers Knowledge Centre, Aluminium systems, visit the showroom

Reynaers Knowledge Centre, Aluminium systems, visit the showroom

Curtain Hotel

Curtain Hotel

The Curtain - Mondrian Hotel, featuring Reynaers Slim Line aluminium windows and doors

The Curtain - Mondrian Hotel, featuring Reynaers Slim Line aluminium windows and doors

Regency Place featuring Reynaers SL 68 Slim line aluminium window system

Regency Place featuring Reynaers SL 68 Slim line aluminium window system

Jersey Esplanade featuring a combination of Reynaers Aluminium unitised and stick curtain wall systems

Jersey Esplanade featuring a combination of Reynaers Aluminium unitised and stick curtain wall systems

Great Marlborough Street Student Accommodation, featuring Reynaers CW 50 and CW 60 curtain wall systems with bespoke profiles and Reynaers CS 77 system

Great Marlborough Street Student Accommodation, featuring Reynaers CW 50 and CW 60 curtain wall systems with bespoke profiles and Reynaers CS 77 system

Similar products from Reynaers Aluminium

Aluminium CW 50 BP Stick Curtain Wall - Blast Proof

Aluminium CW 50 BP Stick Curtain Wall - Blast Proof

Aluminium CW 50 FP Stick Curtain Wall - Fire Proof

Aluminium CW 50 FP Stick Curtain Wall - Fire Proof

Aluminium CW 50 HI Stick Curtain Wall (High Insulation) - PassivHaus Certified

Aluminium CW 50 HI Stick Curtain Wall (High Insulation) - PassivHaus Certified

Aluminium CW 50 HL Stick Curtain Wall - Horizontally Lined

Aluminium CW 50 HL Stick Curtain Wall - Horizontally Lined

Aluminium CW 50 RA Stick Curtain Wall - Roof Application

Aluminium CW 50 RA Stick Curtain Wall - Roof Application

Aluminium CW 50 SC Stick Curtain Wall - Structurally Clamped

Aluminium CW 50 SC Stick Curtain Wall - Structurally Clamped

Aluminium CW 50 VL Stick Curtain Wall - Vertically Lined

Aluminium CW 50 VL Stick Curtain Wall - Vertically Lined

Aluminium CW 60 Stick Curtain Wall

Aluminium CW 60 Stick Curtain Wall

© 2024 NBS Enterprises Ltd. All rights reserved.
