Application

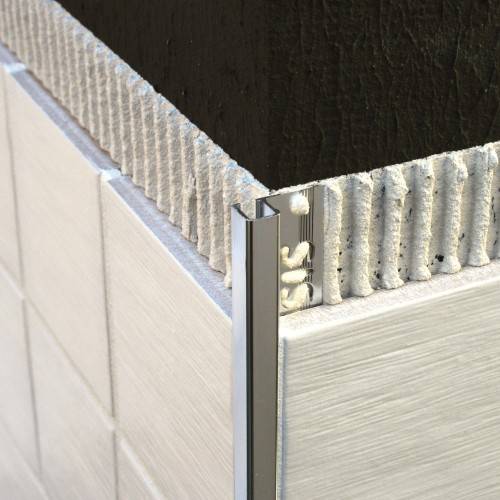

Can be used as a vertical edge trim with wall tiles or horizontally with floor tiles, or as a feature strip in wall or floor applications.


  1. Select TDG according to tile thickness.
  2. Trowel tile adhesive over the area that forms the perimeter of the tiled covering.

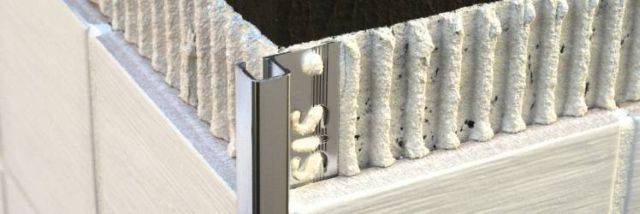

  3.  Press the perforated anchoring leg of the profile into the tile adhesive and align, mechanical fix if required
  4. Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
  5. Solidly embed the tiles so that the tiled surface is flush with the top of the profile - the profile should not be higher than the tiled surface, but rather up to approx. 1 mm lower.
  6. Fill the joint completely with grout.


Description

An alternative to ordinary straight edge profile, the TDG offers a finish to any edge. It can be used as a vertical edge trim on wall tiles or horizontally with floor tiles, or as a feature strip in wall or floor applications. The extruded aluminium profile gives a square appearance when installed with a slight bevelled edge for a smooth finish, and is available with corner pieces (ECG) to obviate sharp edges when mitring is required.

General information

Color

Silver

Finish

Matt

Bright

Material

Aluminium

Length

2500 mm

Height

8 mm

10 mm

12 mm

Uniclass

Pr_35_90_31_32 Floor edging stripsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/12 Mosaic to

M40/120 Mosaic to

M40/5 Tiling to

M41/110 Terrazzo tiling

M41/120 In situ terrazzo

M41/130 Precast terrazzo

M41/140 Marble tiling

Product range

Aluminium Tile Trims

Specification data - Floor edging strips

Material

Aluminium.

Finish

Matt silver 81.

Bright silver 91.

Colour where exposed to view

Silver.

Cross section size

2500 x 10 x 10 mm.

Guidance for specification option:

(L x W x D).

Corners

ECG082.

Guidance for specification option:

Aluminium external corner trim, 8 mm.

ECG102.

Guidance for specification option:

Aluminium external corner trim, 10 mm.

ECG122.

Guidance for specification option:

Aluminium external corner trim, 12 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Literature

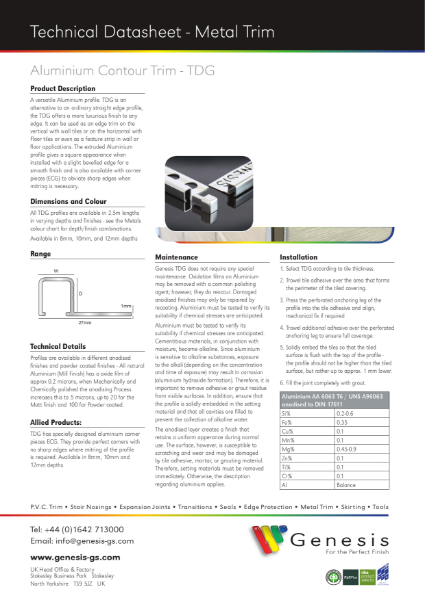

TDG Datasheet

TDG Datasheet
