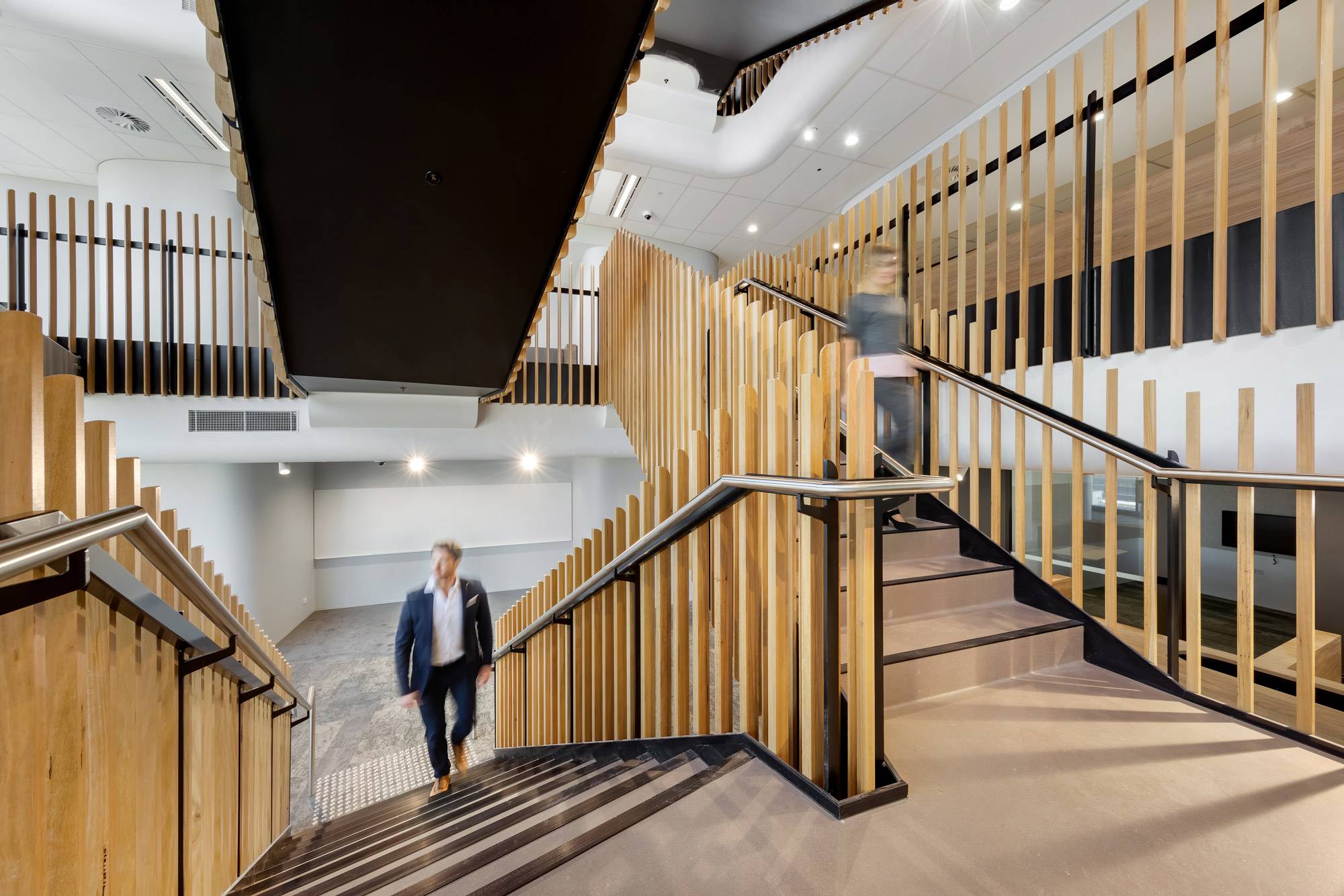

Aluminium Click-on Screens
Verified by manufacturer 26 days ago
Wood Finish (Olefin Embossed Film)
Wood Finish (Olefin Embossed Film)
Declare
Certificate type
Open battens for balustrade infills and free standing screens with a clip connection.
Application
External applications:
- Screens
- Sheltered areas
- Facades
Internal applications:
- Free standing screens
- Balustrades
- Privacy screening
Description
Click-on Screens have been meticulously designed to provide a clean, linear, 360-degree screening product.
Click-on Screens in aluminium are ideal as balustrade infills and free standing screens.
The Click-on connection features a button fixed to the back or ends of the batten, which clicks securely into the clip base. Available in a range of finishes.
General information
Color | Brown Other |
Finish | Veneered Anodized Powder-coated Metal Woodgrain |
Material | Aluminium Metal |
Shape | Rectangle |
Length | Bespoke |
Width | 25 mm 30 mm 40 mm 50 mm |
Height | 50 mm 60 mm 100 mm 150 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | N10/180 Free-standing screens L30/560 Proprietary balustrades L30/550 Purpose-made balustrades L30/55 Proprietary balustrades L30/50 Purpose-made balustrades |
Specification data - Aluminium extruded precision profiles
Classification data | |
Precision profiles | |
Size | 25 x 50 mm. 30 x 60 mm. 40 x 100 mm. 50 x 150 mm. |
Finish | |
Applied | Wood finish aluminium (Olefin Embossed Film). |
Colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Film thickness | 0.12– 0.18 mm. Guidance for specification option: On 10 microns anodized, unsealed surface treatment for adhesion. |
Mounting | Back fixed. End fixed. Combination back/end. Manufacturer guidanceNote: Both the back and end mounted versions have a fixed end and floating end. One part of the batten is fixed and the other end slides within the mount to accommodate building movement. |
Track system | Aluminium mounting tracks - 45 x 25 mm Split Track. Guidance for specification option: The split track system was designed to accommodate on-site tolerances and reduce the amount of packing required to achieve a straight line along the mounting track. Aluminium mounting tracks - 45 x 5 mm Slim Track. Manufacturer guidanceMaterial: Aluminium 6106 / T6. Finish: Powder Coated (Dulux Electro Black Ace). |
Fasteners | Clip/spring connection system. |
FireRating | Exterior: To AS 1530.1:1994, Non-combustible; Interior: AS/NZS 3837:1998, Group 1. |
Sustainability data
Country of material origin | Australia |
Country of product manufacture | Australia |
Material | Aluminium Metal |
Expected Life | 15 year |
Product certifications
Product certifications
Declare
Declare - Sculptform Aluminium Products
Literature
Literature type
Sculptform Product Technical Datasheet - Timber and Aluminium Click-on Screens

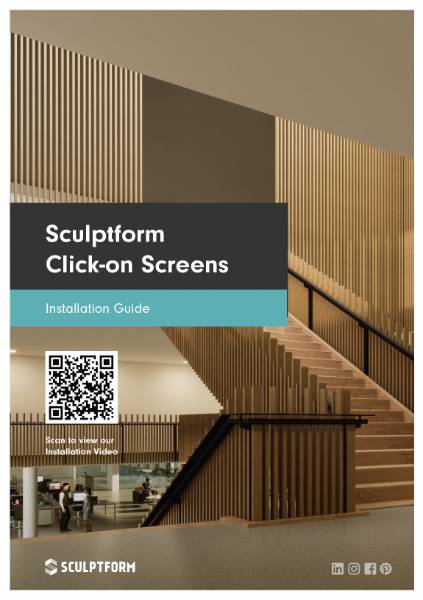

Sculptform Click-on Screens Installation Manual
Case studies
Desert Temple
Jacaranda Finance Office Fitout
