Aluminium CF 77 Sliding and Folding Door System

Name: Aluminium CF 77 Sliding and Folding Door System
Brand: Reynaers Aluminium
SKU: 9Tg9rNjFZjtiJJc9LURmt2

Verified by manufacturer 13 days ago

Double glazed

Reynaers Aluminium

Third party certifications:

BM Trada
Certificate type
ISO 9001 Quality Management
Certificate type

Highly insulated aluminium folding and sliding (bifolding) door in a choice of colour and finish.

Jump to:

+44 (0)121 4211999 Website

Application

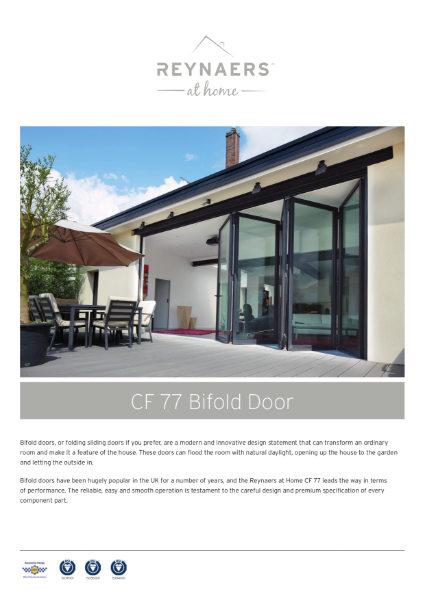

Standalone highly insulated sliding and folding door system. For domestic use, available as functional or slimline profiles, with flush, low- and high-performance thresholds.

Description

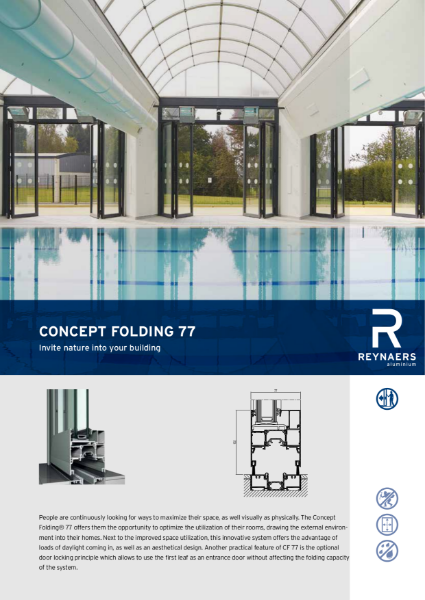

CF 77 Concept Folding system is a standalone highly insulated sliding and folding door system with exclusive features that meets the highest requirements with regard to insulation, stability and safety.

Available as Functional Style (CF 77) and Slim Line (CF 77-SL) with flush, low and high performance thresholds.

Features and benefits:

Window or door functionality for the first vent.

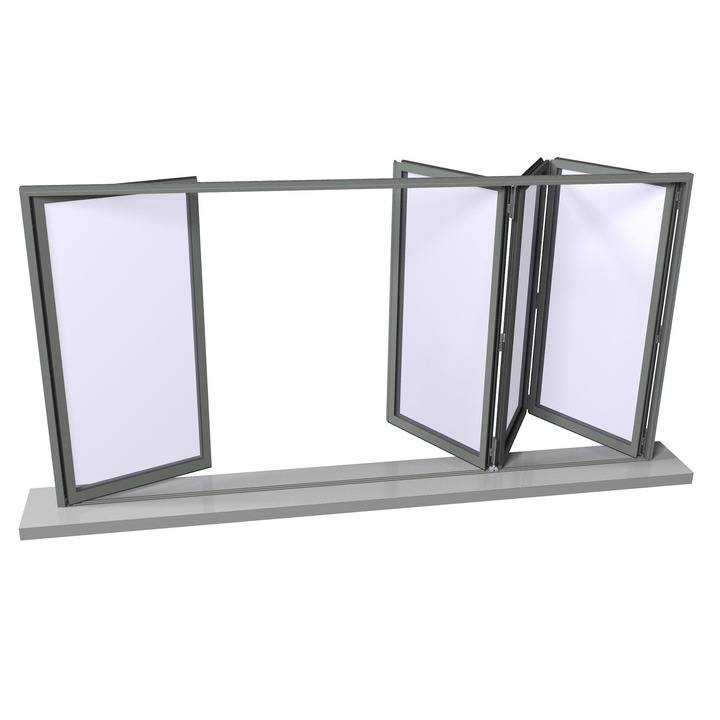

Multiple panel arrangements of up to eight panels opening in or opening out.
Flat, low and high performance threshold options.
Accommodates leaf weights of up to 120 kg.
Integrated and centrally build-in bottom rolling system.
Drained and ventilated glazing with EPDM synthetic rubber gaskets.
Choose from a full range of polyester powder coat colours and anodized finishes.
Dual colour available offering a different colour inside and out.
Weather stripped profiles with polyamide thermal breaks.
Ten-year systems guarantee provided as standard.
Meets the very stringent requirements to be awarded the Secured By Design accreditation.
CAD and BIM details available on request.

General information

Color	- Manufacturer guidance Reynaers offers more than 450 colour AAMA finishes for their frames, including natural, champagne, bronze, and black 12. The AAMA classifications refer to durability and humidity exposure resistance, with higher numbers indicating longer-lasting finishes 2. Please contact us direct for further information.
Finish	Anodized Powder-coated
Material	Aluminium Glass
Shape	Rectangle
Length	Bespoke
Width	Bespoke Guidance for specification option: Frame width 77 mm.
Height	Bespoke
Warranty description	Ten year Guidance for specification option: Standard system guarantee (five-year guarantee for wearing parts). Manufacturer guidance Reynaers guarantees that its systems meet the highest technical specifications and standards. We therefore issue a 10-year system guarantee. This is an insurance on the aluminium profiles, lacquer or anodisation layer, as well as on the insulation. On the accessories, we grant a 5-year system guarantee.

Uniclass	Pr_30_59_24_81 Sliding folding doorsetsPrimary
CAWS	L20/530 Sliding folding external doors L20/60 Doors

Specification data - Sliding folding doorsets

Grade	Insulated.
Format	Bi-fold, inward opening. Bi-fold, outward opening. Manufacturer guidance See Configuration below for door leaf arrangements.
Track system	Manufacturer's standard.
Door leaf	-
Construction	Manufacturer's standard. Guidance for specification option: See manufacturer's literature and Profile for guidance
Finish	Powder coating to BS EN 12206-1. Powder coating to APA Qualicoat standard. Anodized to EWAA/ EURAS-Qualanod standard. Anodized to BS 3987. Manufacturer guidance Colour details specified separately below. Insert details if different finish is required internally and externally.
Operation	Manual.
Hardware	Horizon handles, anodized. Horizon handles, powder coated. Guidance for specification option: Insert requirements; available in one of 400+ RAL colours. Orchid handles, black. Guidance for specification option: Powder coated. Orchid handles, white. Guidance for specification option: Powder coated. Orchid handles, powder coated. Guidance for specification option: Insert requirements; available in one of 400+ RAL colours. Shield handles, unpolished natural anodized. Standard handles.

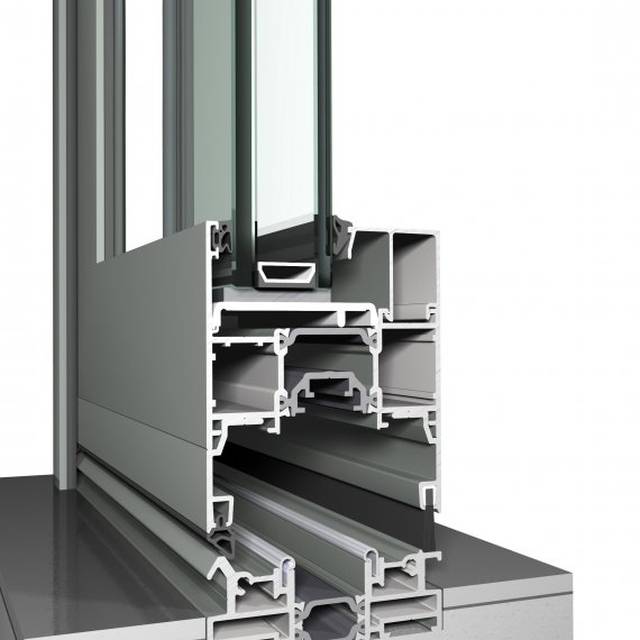

Profile	CF 77 Functional Folding and Sliding Door. Guidance for specification option: A thermally improved three-chamber system for doors. CF 77-HI Functional Folding and Sliding Door. Guidance for specification option: A highly insulated version. CF 77-SL Slim Line Folding and Sliding Door. Guidance for specification option: A slimline version. CF 77-SL/HI Slim Line Folding and Sliding Door. Guidance for specification option: A highly insulated slimline version. Manufacturer guidance Profiles shall be extruded from EN AW-6060 (AlMgSi0.5 F22) aluminium alloy to comply with EN 573 – parts 3 and 4. Designed and manufactured to comply with BS 4873. Outer frame members shall be 77 mm front to back and square cut. All corner joints to be assembled with screwed corner joints and glued. All joints shall be sealed during fabrication against water entry. Profiles are insulated with glass fibre reinforced polyamide strips, separating the internal and external faces, mechanically jointed and glued to form a single compound profile. Dry glazed to accommodate a wide range of single, double and triple glazing units with internal clip-in aluminium glazing beads. Weather-stripping to be EPDM extruded synthetic rubber gaskets to DIN 7863 and ISO 3934, set in undercut grooves in the frame and vent. CE Marking fully compliant with the EU Construction Products Directive (CPD) to the relevant product standard BS EN 14351-1 for windows and doors and BS EN 13830 for curtain walls. Manufactured and supplied under the requirements of ISO 14001, the internationally accepted standard that outlines an effective environmental management system. Manufactured and supplied under a quality system certified to BS EN ISO 9001: 2000. The manufacturer guarantees that the system meets the technical specifications and standards of the country and the product in question. The current processing and maintenance regulations mentioned in the manufacturer's catalogues determine the extent of this ten-year guarantee (five-year guarantee for wearing parts).
Configuration	Folding type 2-0-2. Folding type 3-0-3. Folding type 3-1-2. Folding type 4-0-4. Folding type 4-1-3. Folding type 4-2-2. Folding type 5-0-5. Folding type 5-1-4. Folding type 5-2-3. Folding type 6-0-6. Folding type 6-1-5. Folding type 6-2-4. Folding type 6-3-3. Folding type 7-0-7. Folding type 7-1-6. Folding type 7-2-5. Folding type 7-3-4. Folding type 8-0-8. Folding type 8-1-7. Folding type 8-2-6. Folding type 8-3-5. Folding type 8-4-4. Show more Manufacturer guidance Consult manufacturer's literature for further details.
External colour	- Manufacturer guidance Insert requirements based on finish(es) specified. Profiles can be finished with different internal and external colours, powder coated or anodized (specify finish above; internal colour details below): Powder coating available in a range of RAL or ‘Coatex’ colours; consult manufacturer for details. Anodized: Satin or bronze colours; consult manufacturer for details.
Internal colour	- Manufacturer guidance Insert requirements based on finish(es) specified. Profiles can be finished with different internal and external colours, powder coated or anodized (specify finish above; external colour details also above): Powder coating available in a range of RAL or ‘Coatex’ colours; consult manufacturer for details. Anodized: Satin or bronze colours; consult manufacturer for details.
Threshold	Guidance for specification option: Insert requirements for threshold performance level (consult manufacturer for options).
Installation fasteners	- Manufacturer guidance Insert requirements. Fixings must ensure the door is retained securely within the opening without damage or distortion to the window frame. Generally, fasteners should be positioned 150 mm from each corner and each mullion/ transom, and at centres not exceeding 600 mm.
Glazing details	Double glazed. Guidance for specification option: Insert details of glazing unit including, spacer type and dimension, glass type (emissivity, safety, solar, G-value and energy factors) and thickness (6–63 mm). Glass to be set against extruded EPDM rubber gaskets retained in undercut grooves within the aluminium profile and clip-in glazing beads.
Thermal	1.6 W/m²K. Guidance for specification option: Ud value dependent on the frame/ vent combination and glass unit specification.
Air permeability	Up to 600 Pa (class 4).
Watertightness	Up to 600Pa (class 9A).
Resistance to wind load	Up to 1200 Pa (class B3).
Acoustic performance	Rw (C;Ctr) = 34 (-2;-5) to 45 (-1;-5) dB. Guidance for specification option: Depending on glazing type specified.
Security level	PAS 24:2012 (UK Secured by Design standard) and RC2/ WK2 (European standard EN(V)1627–EN(V)1630 (windows).

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	- Manufacturer guidance On a project specific basis Reynaers can offer 75% + post-consumer scrap. Please contact Reynaers direct for further information.
Recyclability	- Manufacturer guidance Aluminium is one of the most recycled materials on Earth and can be recycled endlessly into itself. It is 100% recyclable and retains its properties indefinitely.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Due to the global limited availability of recycled aluminium, the objective to increase recycled content to 75% doesn't have any environmental benefit. Increasing recycled content for 1 project or product only means other projects/products contain less. However, Reynaers Aluminium works closely together with its suppliers to ensure a correct % of recycled content. As there is a variation between the recycled content provided by these suppliers, we communicate the annual averages. For specific projects, Reynaers Aluminium can select a supplier with high recycled content, possibly with price impact and extended delivery times. To improve the environmental impact of aluminium, Reynaers Aluminium focusses on following important aspects: • Use recycled content: work together with suppliers to ensure the use of recycled content. • Purchase low carbon primary aluminium: decrease the CO2 impact of the primary aluminium, which is necessary to produce extrusion billets, by using low carbon primary aluminium, produced by green electricity (primarily hydro power). • Work closely together with European Aluminium to improve the global impact of aluminium production and improve sorting and recycling. This approach has the most impact as it combines short term with long term improvements of the aluminium industry, to make a clear environmental shift.
