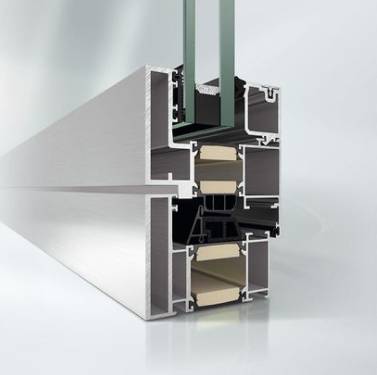

Aluminium blast-resistant window system - AWS 90 XR
Compare variants

Application

  • Suitable for military applications as well as for use in high security areas such as petrochemical plants, banks and embassies.
  • For security reasons, fabricators require special approval to construct this window system.

Description

Blast-resistant aluminium turn/ tilt window system that can withstand a shock wave of 169 kPa generated by an explosion 19 m from the unit (hazard level E “low hazard”), and meets all the requirements of standard windows with regard to thermal insulation, sound reduction and weathertightness.


Features and benefits:

  • Tested in accordance with ISO 16933 with the classification EXV 19 (hazard level E “low hazard”).
  • Expanded area of application with the EXV 25 classification.
  • System approval in accordance with EN 14351-1 available.
  • Concealed fittings can be used.
  • Various special glass types can be selected to meet requirements.
  • Project-specific solutions available on request.


Standards:

  • ISO 16933.
  • EN 14351-1.
  • DIN EN ISO 100772.

General information

Finish

Polyester powder coated

Anodized

Material

Aluminium

Uniclass 2015

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/330 Aluminium windows

Specification data - Aluminium window units Enhanced data

Standard

Non-fire- and/ or smoke-rated windows to BS EN 14351-1.

Dimensions and configurations

Tilt before turn.

Product performance

-

Weather performance

-

UK exposure category

To BS 6375-1.

Air permeability

Up to Class 4.

Watertightness

Up to E750.

Resistance to wind load

Up to C5/ B5.

Safety

-

Security level

Up to RC4 (WK4).

Environmental

-

Acoustic performance rating

Up to Rw 44 dB.

Thermal

-

Whole window U-value

Up to 1.6 W/(m²K).

Frame

-

Profile

90 mm.

Finish as delivered

-

Coating

Polyester powder-coated.

Anodized.

Colour

by Architect.

Ventilator

Vent size.

1210 x 1840 mm.

 EXV19 (E).

1450 x 1840 mm.

 (EXV25).

Hardware

Avantec Simply Smart.

Operation

-

Type

Manual.

Execution

Fixing of aluminium frames.

Product Reference

AWS 90 XR Tilt/Turn

Blast resistance

In accordance with ISO 16933.

Consult manufacturer.

Hazard bands

In accordance with ISO 16933.

Consult manufacturer.

Load

Mechanical load rating.

Class 4.

Environmental information

Country of material origin

United Kingdom
