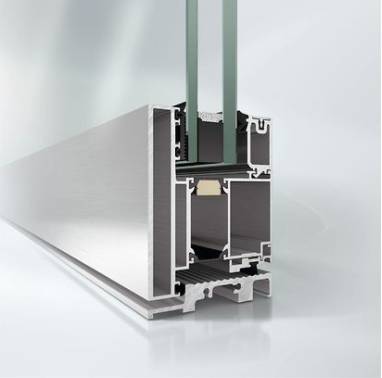

Aluminium blast-resistant door - ADS 90 XR
Compare variants

Application

Suitable for military applications as well as for use in high security areas such as petrochemical plants, banks and embassies.

Description

The system allows single and double-leaf outward-opening door solutions to be designed with blast-resistant properties, whilst meeting all the requirements of normal doors with regard to thermal insulation, sound reduction and weathertightness.


Features and benefits:

  • Door system tested in accordance with ISO 16933 with the classification EXV 19 (level E “low hazard”).
  • Extended area of application based on calculations possible.
  • System approval in accordance with EN 14351-1 available
  • Combination with blast-resistant Schüco façade systems on request.
  • Optional panic function construction: single-leaf doors in combination with Schüco SafeMatic lock, double-leaf doors with Schüco claw bolt and pin lock.
  • For security reasons, fabricators require special approval to construct this system.


Standards:

  • ISO 16933.
  • EN 179.
  • EN 1125.
  • EN 14351-1.

General information

Finish

Polyester powder coated

Anodized

Material

Aluminium

Uniclass 2015

Pr_30_59_24_52 Metal doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Metal doorsets Enhanced data

Standard

To EN 14351-1.

Configuration

Single leaf inward opening.

Doorset size

Door leaf size.

1300 x 2250 mm.

EXV 25.

Performance

-

Thermal

Consult manufacturer.

-

Intruder resistance

-

Minimum requirement

Up to RC4 (WK4).

Explosion resistance

-

Blast duration

In accordance with ISO 16933.

Consult manufacturer.

Pressure mode

In accordance with ISO 16933.

Consult manufacturer.

Overpressure (maximum)

In accordance with ISO 16933.

Consult manufacturer.

Rebound pressure (maximum)

In accordance with ISO 16933.

Consult manufacturer.

Accessibility

In accordance with ISO 16933.

Consult manufacturer.

Frame

-

Material

Aluminium.

Finish

-

Coating

Polyester powder-coated.

Anodized.

Door leaf

-

Thickness

90 mm.

Execution

Installing hardware.

Product Reference

ADS 90 XR Single leaf inward opening

Durability

Up to 1 million cycles.

Load

Class 3.

Watertightness

Up to 5A.

Resistance to wind load

Up to C3.

Environmental information

Country of material origin

United Kingdom
