Alumasc Rainwater Flushjoint Square Pipe
Verified by manufacturer 2 months ago
CP33
CP33
BBA Agrément Certificate
Certificate type
UKAS
Certificate type
Extruded Aluminium Flushjointed Square Downpipe System
Application
- Suitable for use in commercial, healthcare, public sector and residential settings.
Description
Flushjoint square pipes are available in two pipe diameters and two pipe lengths, together with a complete range of fittings included rainwater hoppers. Flush spigot pipe connection for virtually undetectable joints. Factory Finished in a choice of coloured BBA certificated powder coatings.
Features and Benefits:
- Complete with fittings, including rainwater hoppers
- Flush spigot pipe connection for virtually undetectable joints
- Factory Finished in a choice of coloured BBA certified powder coatings
- Used to achieve completely smooth external appearance
- Compatible with all Alumasc Rainwater aluminium gutters when gutter girth is sufficient to accommodate cross sectioned area of pipe
- Running outlets made to order according to gutter choice and project requirements
- Lightweight, durable and non-corrodible
- Easy to handle and fix
- Expected service life of 40 years
General information
Color | Black Blue Brown Green Grey |
Finish | Mill Powder-coated Textured |
Material | Aluminium Guidance for specification option: Extruded aluminium to BS EN 515, BS EN 573, BS EN 755 and BS EN 12020 from grade 6063 T6 alloy. |
Shape | Square |
Length | 3000 mm |
Width | 75 mm 100 mm |
Height | 75 mm 100 mm |
Uniclass | |
CAWS | R10/30 Aluminium pipework R10/370 Aluminium pipework |
Product range |
Specification data - Aluminium rainwater pipes and fittings
Standard | To BS 8530: 2010. |
Third-party product certification | BS 9101: 2017. |
Form | Extruded. |
Section | Square. |
Size (nominal) | 75 x 75 mm. |
Minimum thickness or gauge | 2 mm. |
Finish and colour | |
Finish | Polyester powder coated.Textured.Mill.Guidance for specification option: Plain mill finish for on-site painting. |
Colour | RAL 1011m Brown Beige.Guidance for specification option: Polyester powder-coated. RAL 1013m Pearl White.Guidance for specification option: Polyester powder-coated. RAL 1021m Cadmium Yellow.Guidance for specification option: Polyester powder-coated. RAL 2002m Vermilion.Guidance for specification option: Polyester powder-coated. RAL 3003m Ruby Red.Guidance for specification option: Polyester powder-coated. RAL 3005m Wine Red.Guidance for specification option: Polyester powder-coated. RAL 5003m Sapphire Blue.Guidance for specification option: Polyester powder-coated. RAL 5010m Flower Blue.Guidance for specification option: Polyester powder-coated. RAL 6005m Moss Green.Guidance for specification option: Polyester powder-coated. RAL 6018m Yellow Green.Guidance for specification option: Polyester powder-coated. RAL 7005m Mouse Grey.Guidance for specification option: Polyester powder-coated. RAL 7006m Beige Grey.Guidance for specification option: Polyester powder-coated. RAL 7012m Basalt Grey.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 7015m Slate Grey.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 7016m Anthracite Grey.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 7024m Graphite Grey.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 7036m Platinum Grey.Guidance for specification option: Polyester powder-coated. RAL 7037m Dusty Grey.Guidance for specification option: Polyester powder-coated. RAL 7038m Agate Grey.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 8017m Chocolate Brown.Guidance for specification option: Polyester powder-coated. RAL 8019m Grey brown.Guidance for specification option: Polyester powder-coated. RAL 9006m Metallic Silver.Guidance for specification option: Polyester powder-coated. RAL 9006g Metallic Silver (80% Gloss).Guidance for specification option: Polyester powder-coated. RAL 9016m White.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 9017m Black (60% Gloss).Textured Black.Bespoke RAL. |
Film thickness (minimum) | 60-80 Microns.120-160 Microns.Guidance for specification option: (Marine). |

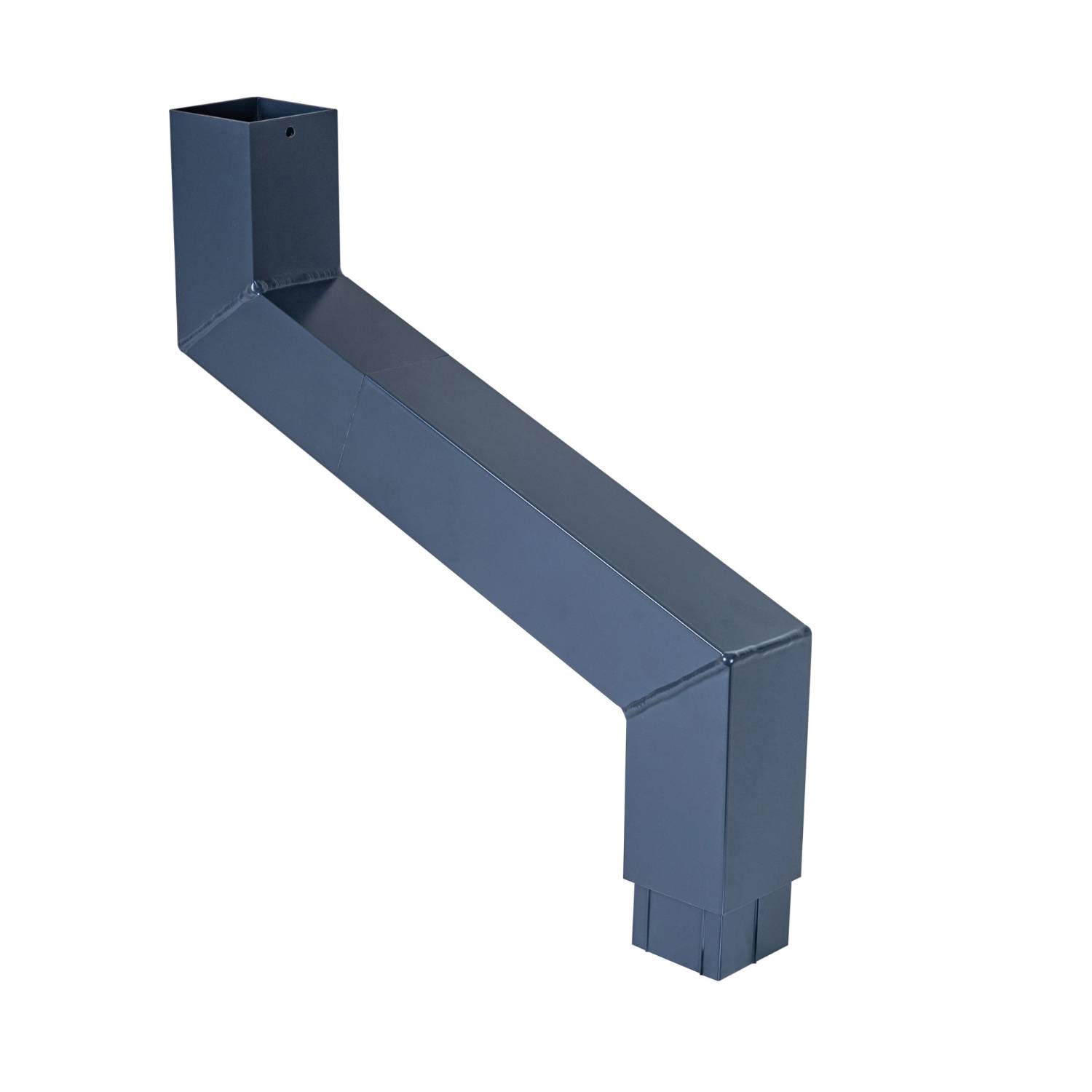

Integral accessories | Bends.Branches.Sockets.Access pipes.Offsets.Shoes.Pipe clips.Hopper Heads. |
Fire rating (to BS EN 13501) | A2 to BS EN 13501: 2018. |
Type | Spigot jointed system. |
Materials | Aluminium, LM6 Marine Grade. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium Guidance for specification option: Extruded aluminium to BS EN 515, BS EN 573, BS EN 755 and BS EN 12020 from grade 6063 T6 alloy. |
Recyclability | 100% |
Expected Life | 40 year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
BBA Agrément Certificate
BBA Powder Coating Certificate
UKAS
ISO 14001 - Burton Latimer site
UKAS
ISO 9001 - Burton Latimer site
Literature
Alumasc Rainwater - Technical Brochure
Case studies

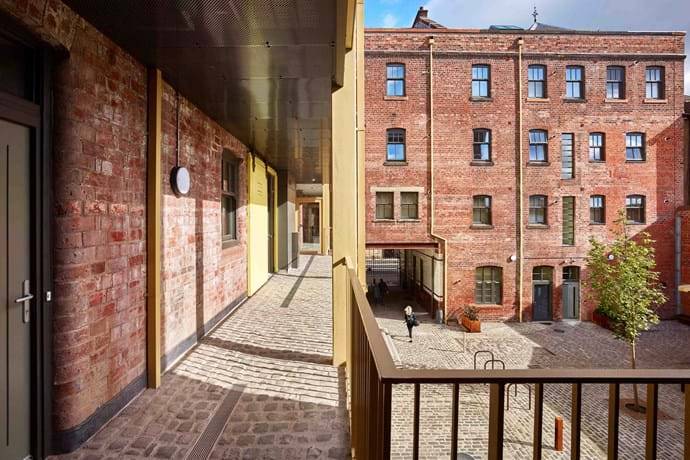

Bell Street Stables - Alumasc Flushjoint
Broomfield Primary School - Alumasc Rainwater GX & Flushjoint
