Alumasc Rainwater Aqualine Half Round Gutter
Verified by manufacturer 2 months ago
EHR10
EHR10
BBA Agrément Certificate
Certificate type
UKAS
Certificate type

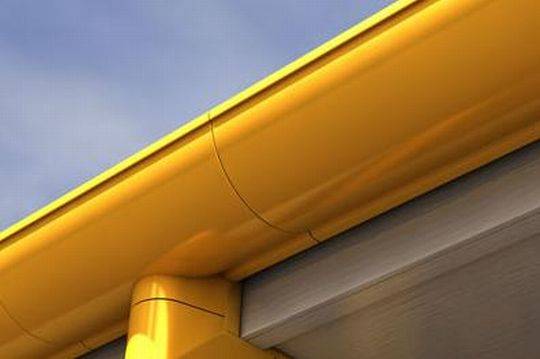

Extruded Aluminium Half Round Gutter With Hidden Fascia Brackets
Application
- For use in residential, commercial and public sectors
- Suited to both flush and projecting eaves applications
Description
Aqualine half round gutters are available in three sizes and in standard 3 m gutter lengths. A contemporary profile with clean lines that fits well into virtually any design aesthetic. Factory finished in a choice of coloured BBA certified powder coatings.
Features and Benefits:
- Lightweight, durable and non-corrodible
- Factory finished in a choice of coloured BBA certified powder coatings
- Plain end with internal union
- Concealed site fixing and jointing for a clean external appearance
- High flow capacity for enhanced performance
- Easy to handle and fix
- Expected service life of 40 years
- Aluminium is 100% recyclable
General information
Color | Beige Brown Yellow Red Blue |
Finish | Powder-coated Textured Mill |
Material | Aluminium |
Shape | Other Guidance for specification option: Half-round. |
Length | 3000 mm |
Width | 100 mm 120 mm 150 mm |
Height | 50 mm 60 mm 75 mm |
Uniclass | |
CAWS | R10/11 Aluminium gutters R10/311 Aluminium gutters |
Product range |
Specification data - Aluminium eaves gutters
Form | Extruded. |
Third party product certification | BBA Approved, BS8530: 2010. |
Profile | Half round. |
Size (nominal width) | 100 mm. |
Thickness or gauge | 3 mm. |
Finish | Polyester powder-coated.Textured.Mill. |
Colour | RAL 1011m Brown Beige.Guidance for specification option: Polyester powder-coated. RAL 1013m Pearl White.Guidance for specification option: Polyester powder-coated. RAL 1021m Cadmium Yellow.Guidance for specification option: Polyester powder-coated. RAL 2002m Vermilion.Guidance for specification option: Polyester powder-coated. RAL 3003m Ruby Red.Guidance for specification option: Polyester powder-coated. RAL 3005m Wine Red.Guidance for specification option: Polyester powder-coated. RAL 5003m Sapphire Blue.Guidance for specification option: Polyester powder-coated. RAL 5010m Flower Blue.Guidance for specification option: Polyester powder-coated. RAL 6005m Moss Green.Guidance for specification option: Polyester powder-coated. RAL 6018m Yellow Green.Guidance for specification option: Polyester powder-coated. RAL 7005m Mouse Grey.Guidance for specification option: Polyester powder-coated. RAL 7006m Beige Grey.Guidance for specification option: Polyester powder-coated. RAL 7012m Basalt Grey.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 7015m Slate Grey.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 7016m Anthracite Grey.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 7024m Graphite Grey.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 7036m Platinum Grey.Guidance for specification option: Polyester powder-coated. RAL 7037m Dusty Grey.Guidance for specification option: Polyester powder-coated. RAL 7038m Agate Grey.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 8017m Chocolate Brown.Guidance for specification option: Polyester powder-coated. RAL 8019m Grey brown.Guidance for specification option: Polyester powder-coated. RAL 9006m Metallic Silver.Guidance for specification option: Polyester powder-coated. RAL 9006g Metallic Silver (80% Gloss).Guidance for specification option: Polyester powder-coated. RAL 9016m White.Guidance for specification option: Polyester powder-coated; also available in a textured finish. RAL 9017m Black (60% Gloss).Textured Black.Bespoke RAL. |
Film thickness (minimum) | 60-80 Microns.120-160 Microns.Guidance for specification option: (Marine). |
Integral accessories | Angles.Brackets.Outlets.Stop Ends.Unions. |
Nominal height | 50 mm. |
Fire rating (to BS EN 13501) | A2 to BS EN 13501: 2018. |
Type | Plain end with internal union. |
Materials | Aluminum, LM6 Marine Grade. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100% |
Expected Life | 40 year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
BBA Agrément Certificate
BBA Powder Coating Certificate
UKAS
ISO 14001 - Burton Latimer site
UKAS
ISO 9001 - Burton Latimer site
Literature
Alumasc Rainwater - Technical Brochure
