Alumasc Rainwater Apex Heritage Cast Iron Rectangular Downpipe
Verified by manufacturer 15 days ago
Rectangular P64 - 150 x 100 mm
Rectangular P64 - 150 x 100 mm

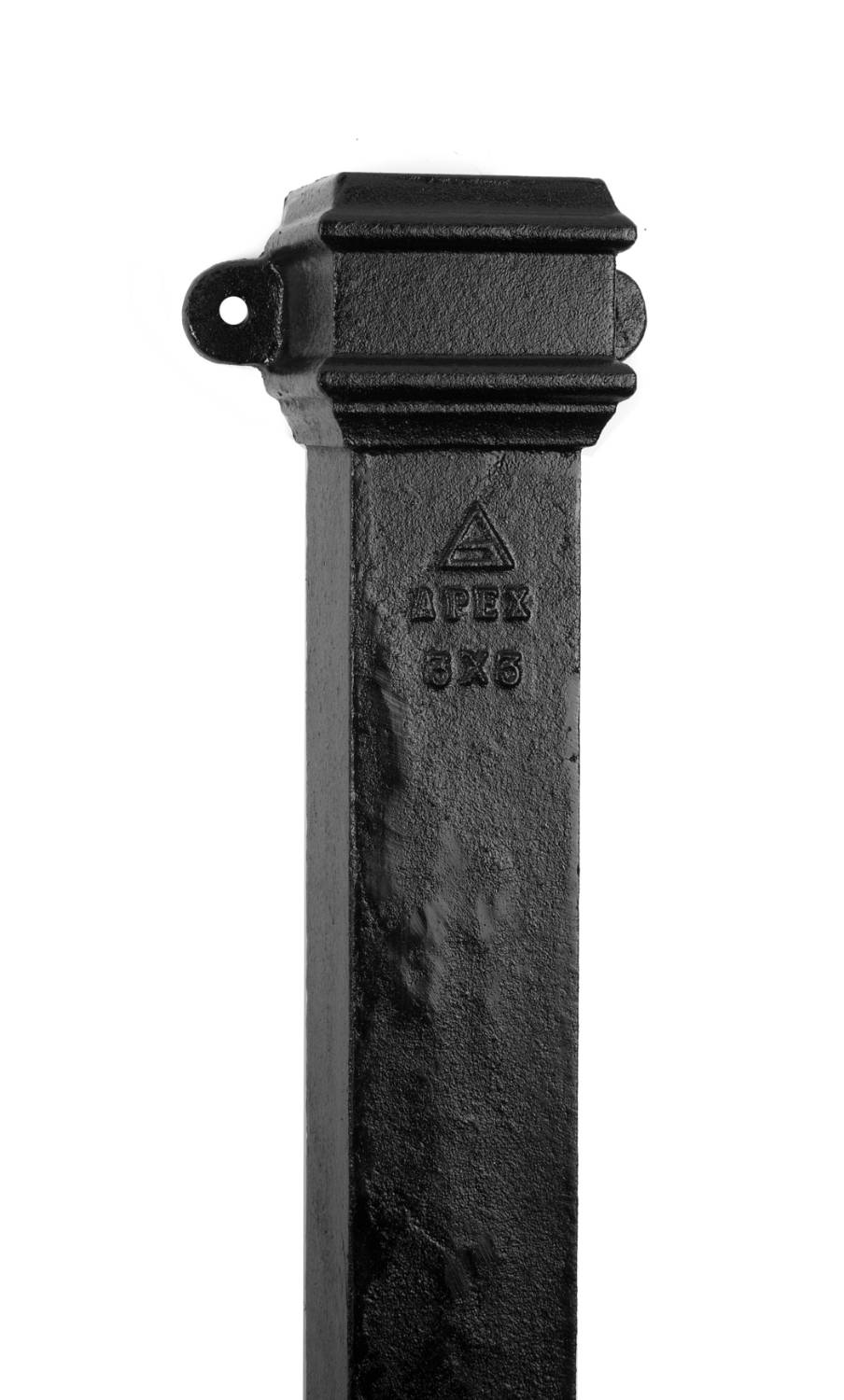

Traditional cast iron socketed rectangular downpipe.
Application
Designed to provide all the essential architectural features appropriate to traditionally designed buildings.
- Suited to traditional craft based contracts.
- Closely replicates historic styles.
- For both flush and projecting eaves applications.
Description
Traditional cast iron socketed square and rectangular rainwater pipes in a choice of five pipe diameters and two pipe lengths. There is a comprehensive range of cast iron fittings, and traditional holderbat and earbelt fixings.
Features and benefits:
- Extremely strong, durable and vandal resistant.
- Dimensionally accurate and stable.
- Life expectancy in excess of 40 years.
- Cast iron is 100% recyclable.
General information
Color | Red Blue Green Grey Brown |
Finish | Coated |
Material | Cast iron |
Shape | Rectangle |
Length | 3000 mm |
Width | 108 mm 133.5 mm 159 mm |
Height | 3000 mm |
Uniclass | |
CAWS | R10/380 Cast iron pipework - spigot and socket |
Product range |
Specification data - Cast iron rainwater pipes and fittings
Standard | To BS 460:2002, BS 8530:2010, BS EN 13501:2018. |
Section | Rectangular. |
Size (nominal) | 150 x 100 mm. |
Finish and colour | |
Finish | Polyester powder coated.Non standard.Mill finish. |
Colour | RAL 3009m Oxide Red.RAL 3020m Traffic Red.RAL 5010m Flower Blue.RAL 6005m Moss Green.RAL 7016m Anthracite Grey.RAL 8015m Chestnut Brown.RAL 9005m Black.RAL 9016m White.Primed.Bespoke.Guidance for specification option: Contact manufacturer for details. |
Integral accessories | Access pipes.Bends.Branches.Hopper heads.Offsets.Pipe clips.Shoes.Sockets.Wooden bobbins. |
Fire rating (to BS EN 13501) | A2. |
Film thickness (minimum) | 60-80 Microns. 120-160 Microns (Marine). |
Third party product certification | BBA Approval, BS 8530:2010. |
Sustainability data
Contains Red List materials | No |
Material | Cast iron |
Recyclability | 100% |
Expected Life | 40 year |
Case studies
Duke Street Apartments, London - Alumasc Heritage Cast Aluminium & Apex Cast Iron
Lancaster's London - Alumasc Apex Heritage Cast Iron
Royal Albert Hall - Alumasc Apex Heritage Cast Iron
St Pancras International, London - Alumasc Rainwater Apex Cast Iron
