Alumasc Rainwater Aluminium Heritage Half Round Gutter
Verified by manufacturer 1 month ago
Half Round HR1 - 100 mm
Half Round HR1 - 100 mm
UKAS
Certificate type
BBA Agrément Certificate
Certificate type

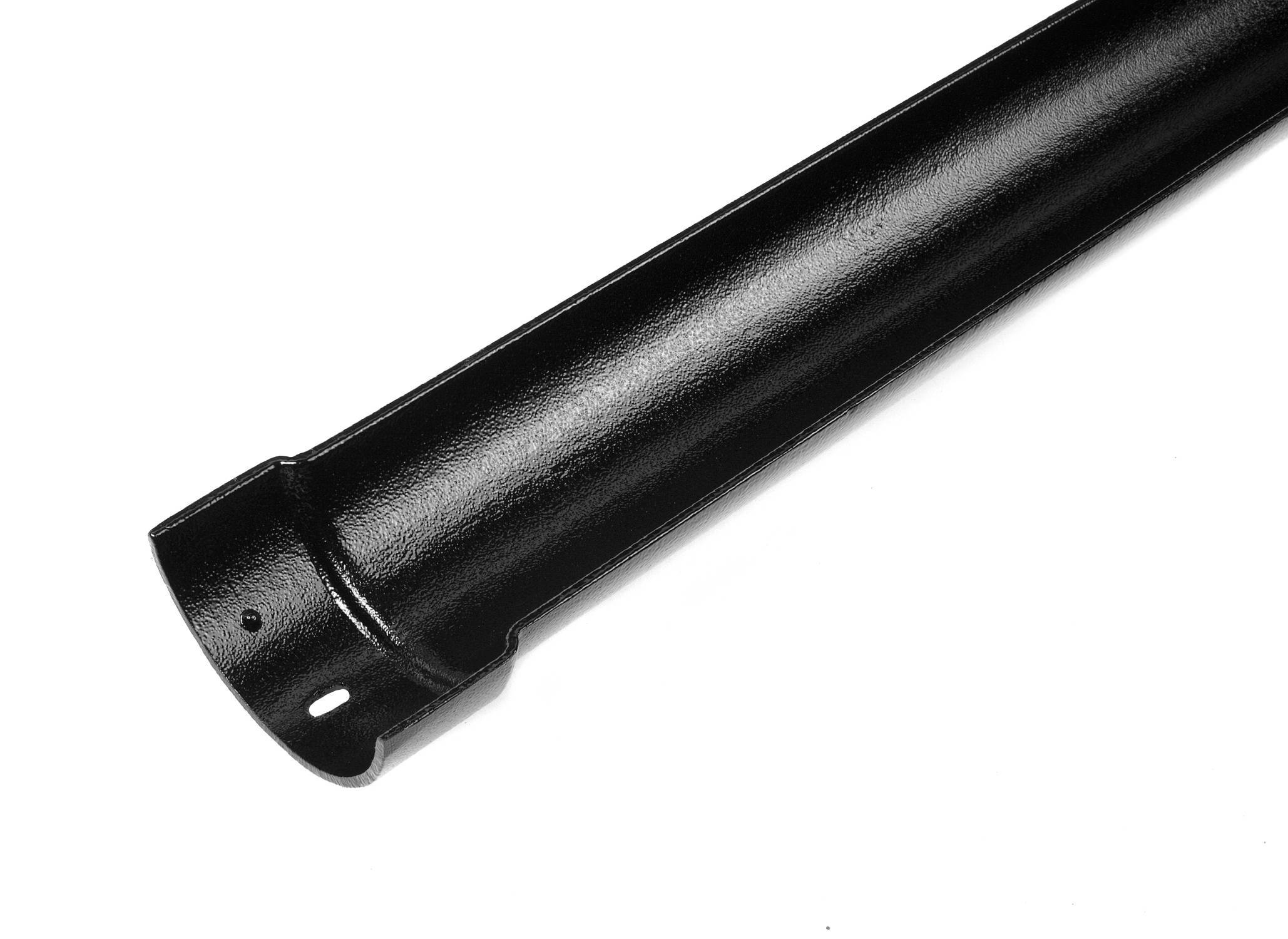

Traditional Cast Aluminium Half Round Gutter Profile
Application
Designed to provide all the essential architectural features appropriate to traditionally designed buildings, the Heritage range is also fully in tune with modern fast track building contracts.
- Ideal for traditionally designed buildings, in both new build and refurbishment applications
- Can be used as a direct replacement of cast iron
- For both flush and projecting eaves applications
Description
Heritage Half Round cast aluminium gutters are available in four sizes and two gutter lengths, together with a complete range of fittings. A classic socketed system, which can be finished to replicate cast iron or with BBA certificated powder coatings in a choice of colours.
Features and Performance:
- Lightweight, durable and noncorrodible.
- Life expectancy of aluminium:
- 40 years (rural/suburban areas); up to 25 years (industrial/marine areas).
- Easy to handle and fix.
- BBA approved.
- Aluminium is 100% recyclable.
General information
Color | Brown Beige White Yellow Red |
Finish | Powder-coated |
Material | Aluminium |
Shape | Other |
Length | 1830 mm |
Width | 108 mm 122 mm 134 mm 159 mm |
Height | 47 mm 52 mm 56 mm 60 mm |
Uniclass | |
CAWS | R10/11 Aluminium gutters R10/311 Aluminium gutters |
Product range |
Specification data - Aluminium eaves gutters
Form | Cast. |
Third party product certification | BBA Approval, BS 8530:2010. |

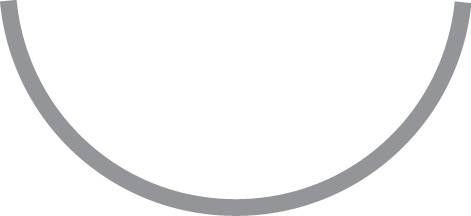

Profile | Half round. |
Size (nominal width) | 100 mm. |
Thickness or gauge | 4 mm. |
Finish | Polyester powder coated.Mill. |
Colour | BLACK/TEXT Textured Black.RAL 2002M Vermillion.RAL 3003M Ruby Red.RAL 3005M Wine Red.RAL 5003M Sapphire Blue.RAL 5010M Flower Blue.RAL 6005M Moss Green.RAL 6018M Yellow Green.RAL 7005M Mouse Grey.RAL 7006M Beige Grey.RAL 7012M Basalt Grey.RAL 7015M Slate Grey.RAL 7016M Anthracite Grey.RAL 7024M Graphite Grey.RAL 7036M Platinum Grey.RAL 7037M Dusty Grey.RAL 7038M Agate Grey.RAL 8017M Chocolate Brown.RAL 8019M Grey Brown.RAL 9006G Metallic Silver.RAL 9006M Metallic Silver.RAL 9016M White.RAL 9017M Black.Bespoke.Guidance for specification option: Contact manufacturer for details. |
Film thickness (minimum) | 60-80 Microns.120-160 Microns (Marine). |
Integral accessories | Angles.Fascia brackets.Outlets.Stop ends.Unions. |
Fire rating (to BS EN 13501) | A2. |
Standards | To BS 8530:2010, BS EN 13501:2018. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100% |
Expected Life | 40 year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
UKAS
ISO 14001 - Burton Latimer site
UKAS
ISO 9001 - Burton Latimer site
BBA Agrément Certificate
BBA Powder Coating Certificate
Case studies
Former Holmlea Primary School, Glasgow - Alumasc Rainwater Heritage Cast Aluminium
