AluK SL52 Stick Curtain Walling System - Curtain Walling

Name: AluK SL52 Stick Curtain Walling System - Curtain Walling
Brand: AluK (GB) Ltd
SKU: u6mPbdnFMX3EXEP2f3ky6B

Verified by manufacturer 6 months ago

SL52 Capped Curtain Wall System

AluK (GB) Ltd

Third party certifications:

Axalta Approved Architectural Applicator Certificate
Certificate type
QA Certificate
Certificate type
BS EN 12206:2021
Certificate type
ISO 9001 Quality Management
Certificate type
Qualicoat approval
Certificate type

Capped aluminium stick curtain walling system.

Jump to:

+44 (0)1291 639739 Website

Application

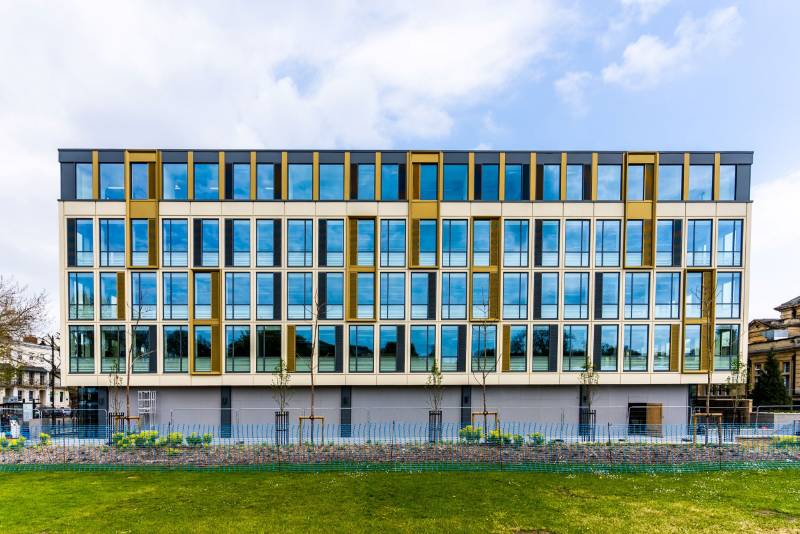

Aluminium stick curtain wall system suitable for single and multi story applications to new build and refurbished project from all sectors offering a full envelope and facade solution.

Fully integrates with all AluK window and door ranges.

Description

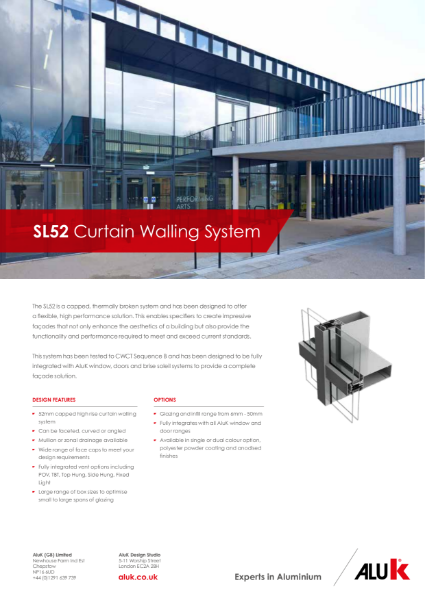

The SL52 is a capped, thermally broken system and has been designed to offer a flexible, high performance solution. This enables specifiers to create impressive facades that not only enhance the aesthetics of a building but also provide the functionality and performance required to meet and exceed current standards. This system has been tested to CWCT Sequence B and has been designed to be fully integrated with AluK window, doors and brise soleil systems to provide a complete façade solution.

Features and benefits:

52 mm capped high rise curtain walling system.

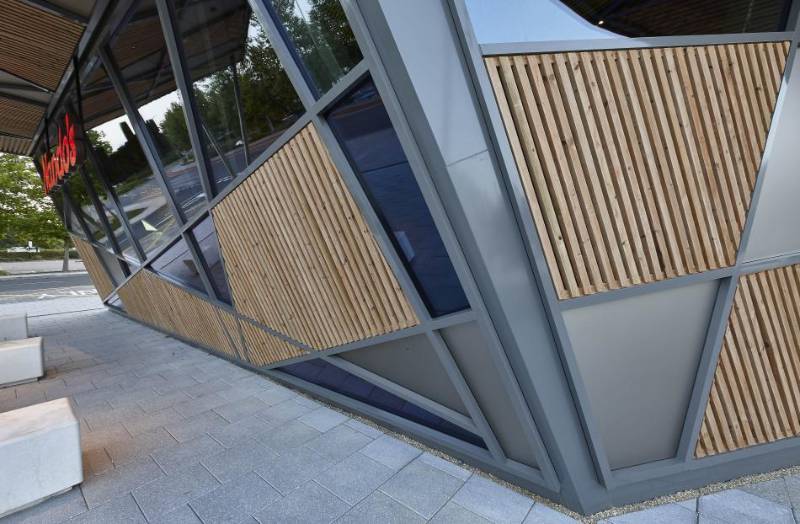

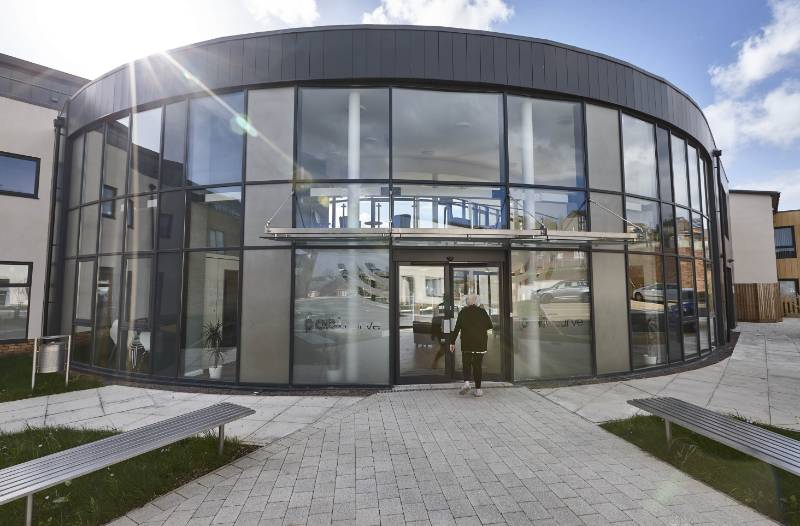

Can be faceted, curved or raked.
Mullion or zonal drainage available.
Wide range of face caps to meet your design requirements.
Fully integrated vent options including POV, TBT, top hung, side hung and fixed light.
Large range of box sizes to optimise small to large spans of glazing.
Glazing and infill range from 6–50 mm.
Fully integrates with all AluK window and door ranges.
Available in single or dual colour option, polyester powder coating and anodized finishes.

General information

Color	- Manufacturer guidance Insert requirements. Available in single or dual colour options. Various polyester powder coated RAL colours available including Anodic (anodised look) and various anodised colours available. Please contact the AluK project team for more information on the full scope of colour ranges available
Finish	Anodized Powder-coated Coated Matt Mill Metallic Pre-treated Painted Satin Semi-gloss Gloss Show more
Material	Aluminium Glass
Shape	Circle Rectangle Square Other
Length	Bespoke
Width	Bespoke Manufacturer guidance Large range of box sizes to optimise small to large spans of glazing.
Height	Bespoke Manufacturer guidance Large range of box sizes to optimise small to large spans of glazing.
Warranty description	Ten year Guidance for specification option: Up to 10 year AluK system warranty available upon request. Subject to terms and conditions. For more information please contact the AluK project team.

Uniclass	Ss_25_10_20_85 Stick curtain walling systemsPrimary
CAWS	H11/110 Curtain walling

Product range	Curtain Walling

Specification data - Stick curtain walling systems

Framing	-
Frame members	Aluminium curtain wall frame sections.
Frame accessories	Aerofoil cover caps. Square cover caps. Rectangular cover caps. Round cover caps. Fin cover caps.
Fasteners	- Manufacturer guidance Consult manufacturer and insert requirements.
Cladding units	-
Glass units	6–50 mm thick glazing.
Glazing accessories	- Manufacturer guidance Consult manufacturer and insert requirements.
Panels and facings	-
Material	Aluminium infill panels.
Fasteners	- Manufacturer guidance Consult manufacturer and insert requirements.
Perimeter seals	- Manufacturer guidance Consult manufacturer and insert requirements.
System accessories	Not required. Drainage, mullion. Drainage, zonal. Faceted. Curved.
Execution	- Manufacturer guidance The AluK curtain wall system shall be fabricated and installed by AluK authorised fabricators only, in complete accordance with the information and guidance released by AluK (GB) Ltd.

Width	52 mm.
System depth	50–200 mm.
Configuration	Not required. Fixed light. Tilt and turn. Top hung, concealed and framed. Side hung, concealed and framed. Parallel opening window, concealed and framed. Single door, swinging and sliding. Double doors, swinging and sliding. Show more Manufacturer guidance Inserted window and door configurations. Consult manufacturer for details.
Maximum weight	Guidance for specification option: Insert requirements: Fixed light: 400 kg. Tilt and turn: 130 kg. Top hung: 180 kg. Side hung: 55 kg. Parallel opening window: 200 kg. Single door: 160 kg. Manufacturer guidance Weight limits.
Air permeability	600 Pa.
Watertightness	600 Pa.
Wind resistance	2400 Pa. Guidance for specification option: Wind resistance safety: 3600 Pa.
Acoustic performance	37 Rw db.
Certification	CWCT Certified, Sequence B.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	2.0 kg CO₂ eq/kg Self declared Guidance for specification option: This is the best performing embodied carbon performance value based upon the aluminium billet only and is available upon request. Please contact the AluK project team for further information and availability. A maximum of value of 6.0 and an average of 4.5 is currently offered as standard, this is system and section choice dependent.
Recyclability	95% Guidance for specification option: Up to 95% of the aluminium content only of the window system is recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	80 % Guidance for specification option: This is the best performing recycled content of the aluminium billet only and has limited availability upon request. Please contact the AluK project team for further information and availability.
