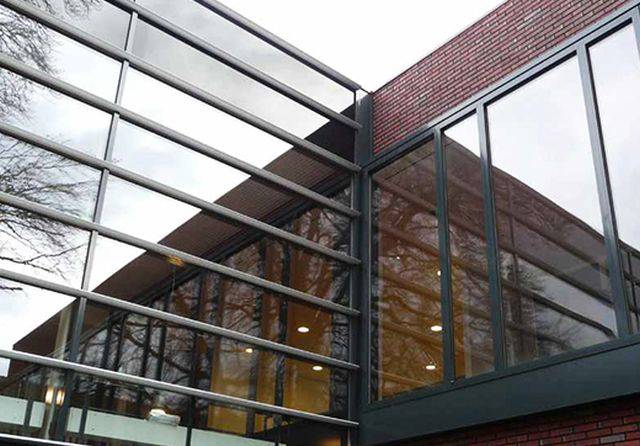

AluK SL50 Capped Curtain Walling System

AluK SL50 Capped Curtain Walling System

AluK (GB) Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Capped 50 mm curtain walling system.

Jump to:
+44 (0)1291 639739 uk.aluk.com

Description

Capped 50 mm curtain walling system.

Features and benefits:

  • 50 mm sightlines.
  • Variety of face cap options.
  • Eleven mullion and nine transom options.
  • Mullion or compartmental drainage options.
  • Glazing range from 6–42 mm.
  • Fully integrates with AluK window and door systems.
  • Certified in accordance with CWCT Sequence 'B' test methodology.
  • Aluminium profiles are extruded in accordance with BS EN 12020, and are manufactured from grade 6060/6063 T6 aluminium.

General information

Uniclass 2015

Ss_25_10_20_85 Stick curtain walling systemsPrimary

CAWS

H11/110 Curtain walling

Specification data - Stick curtain walling systems

Product Reference

AluK SL50 Capped Curtain Walling System

Transom/ mullion

Insert requirement from 'Options' below.

Pressure plate/ cap

Insert requirement from 'Options' below.

Vent

K791

Sash for SG vent.

K792

Sash for SG vent.

Glazing

Glass panels

6–42 mm glass look-a-like panels, insert requirements.

Glazing

6–42 mm insulating glass units, insert requirements.

Infill panels

6–42 mm insulated sandwich panels, insert requirements.

Finish

-

Exterior

-

Type

Anodized to a minimum 15 micrometres thickness

Polyester powder coated to a minimum 60 micrometres thickness

Polyester powder coated to a minimum 60 micrometres thickness with marine environment guarantee

Texture

Not applicable

For anodized.

High gloss

Matt

Semi-gloss

Textured

Textured metallic

Colour

Insert RAL colour requirement or type 'Not applicable' for anodized.

Interior

-

Type

Anodized to a minimum 15 micrometres thickness

Polyester powder coated to a minimum 60 micrometres thickness

Polyester powder coated to a minimum 60 micrometres thickness with marine environment guarantee

As exterior

Texture

Not applicable

For anodized.

High gloss

Matt

Semi-gloss

Textured

Textured metallic

As exterior

Colour

Insert RAL colour requirement, type 'As exterior' or 'Not applicable' for anodized.

Accessories

None

K781

Glazing adaptor up to 15°.

K782

Glazing adaptor up to 23°.

K783

Glazing adaptor up to 30°.

K784

Glazing adaptor up to 38°.

K785

Glazing adaptor up to 45°.

K828

Gasket extender 15 mm.

K894

Gasket extender 6 mm.

Standard product features

Outer frame:

K794 - SG vent outer frame.

Bead:

Square.

Recommended weight limits (maximum):

  • Screws only: 120 kg.
  • Spring cleat: 190 kg.
  • Shear block: 280 kg.
  • Front loaded shear block: 250 kg.
  • For larger weights please consult AluK (GB) Ltd.

Performance:

  • Air permeability rating: Class 4 (600 Pa).
  • Water tightness rating: RE1200 (1200 Pa).
  • Wind resistance: E2400 (2400 Pa).

Product Options

Recommended size limits (maximum):

Consult AluK (GB) Ltd for details.

Transom/ mullion:

  • K730 - 55 mm level 3 mullion.
  • K731 - 80 mm level 3 mullion.
  • K732 - 105 mm level 3 mullion.
  • K733 - 130 mm level 3 mullion.
  • K734 - 155 mm level 3 mullion.
  • K735 - 205 mm level 3 mullion.
  • K737 - 105 mm half mullion.
  • K738 - 80 mm corner mullion.
  • K739 - nose profile adaptor.
  • K740 - 35 mm level 1 transom.
  • K741 - 60 mm level 1 transom.
  • K742 - 85 mm level 1 transom.
  • K743 - 110 mm level 1 transom.
  • K744 - 135 mm level 1 transom.
  • K745 - 160 mm level 1 transom.
  • K746 - 185 mm level 1 transom.
  • K747 - 210 mm level 1 transom.
  • K749 - 245 mm level 1 transom.
  • K760 - 180 mm level 3 mullion.
  • K762 - 330 mm level 3 mullion.
  • K769 - 240 mm level 3 mullion.

Pressure plate/ cap:

  • K765 - 100 mm bull nose face cap.
  • K767-P - Sloped pressure plate.
  • K768 - Sloped 12.5 mm face cap.
  • K777 - 15° angled face cap.
  • K778 - 30° angled face cap.
  • K779 - 45° angled face cap.
  • K851 - 15 mm face cap.
  • K852 - 12.5 mm face cap.
  • K855-P - Pressure plate.
  • N70200R - 52 mm plat pressure plate.
  • N70202 - Pressure plate.
  • N07205 - 17.5 mm face cap.
  • N70306 - 25 mm radius face cap.
  • N70307 - Feature H face cap.
  • N70308 - 40 mm face cap.
  • X084 - Feature fin face cap.
  • X141 - 80 mm face cap.
  • X187 - 160 mm face cap.

Glazing:

- Glass panels:

6–42 mm glass look-a-like panels incorporating two panes of minimum 6 mm-thick glass, with a 16 mm argon gas filled cavity and ceramic painted internal face with foil backed insulation to achieve a maximum 0.35 W/m²K centre pane. Exposed internal faces of insulation incorporate an internal polyester powder coated aluminium tray backing.

- Glazing:

6–42 mm insulating glass units incorporating a clear low emissivity inner pane and a clear outer pane with an argon gas filled cavity and 'warm edge' spacer bar to achieve a maximum centre pane U-value of 1.0 W/m²K. All glass within 800 mm from FFL should be toughened or laminated (within 1500 mm from FFL if within 300 mm of a door).

- Infill panels:

6–42 mm insulated sandwich panels incorporating two sheets of a minimum 2 mm-thick polyester powder coated aluminium sheet to match framing and minimum 24 mm non-combustible foam insulation core.

Finish:

  • A variety of powder coated colours are available in accordance with BS 6496 and BS EN 12206-1:2004. Powder coating is applied to a Qualicoat standard, utilizing an inline flash anodizing pre-treatment process, with the polyester powder coating applied within 30 minutes of the flash anodizing process to ensure suitable adhesion.
  • Can be dual coloured, textured or have an anodized finish.

Literature

Third party certifications

  • CWCT : Sequence 'B'
