AluK INFINIUM Sliding Door System
Verified by manufacturer 6 months ago
Duo Rail
Duo Rail
Axalta Approved Architectural Applicator Certificate
Certificate type
QA Certificate
Certificate type
BS EN 12206:2021
Certificate type
ISO 9001 Quality Management
Certificate type
Qualicoat approval
Certificate type

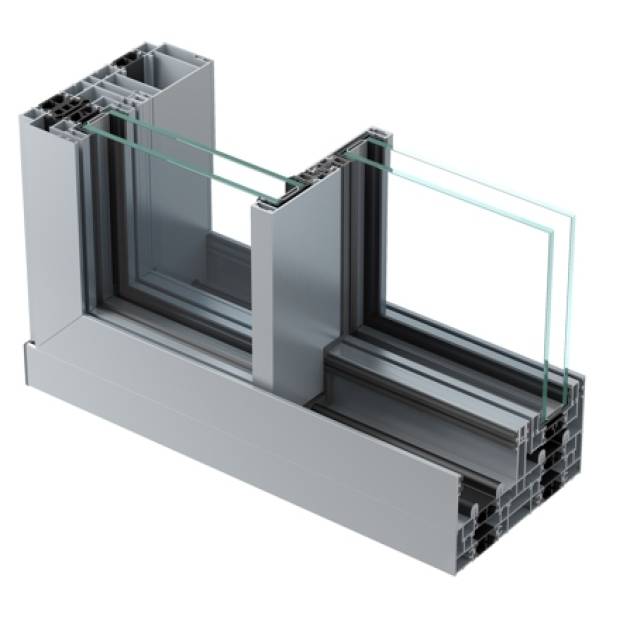

Premium thermally broken aluminium sliding door system.
Application
Suitable for use with high rise residential and commercial new build and refurbishment projects.
Description

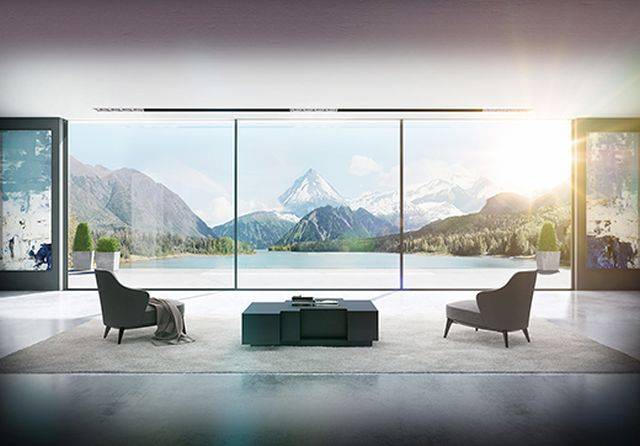

Infinium brings together indoor and outdoor living areas, creating free-flowing spaces with slim sightlines. Uninterrupted panoramic landscapes and seamlessly integrated floor-to-ceiling glazing brings in natural light to a space.
Features and benefits:
- Fully concealed outer-frame.
- 21 mm central interlock.
- One or more opening panels with large width dimensions up to 3000 mm and height dimensions up to 3500 mm.
- Holds up to 400 kg panel weight.
- Available in double or triple track.
- Glazing options of 38–52 mm.
- Floating corner post option for larger opening space.
- Single colour available as standard.
- Available in a range of configurations.
- Double or triple glazing solutions available on the same outer-frame.
General information
Color | Manufacturer guidanceInsert requirements.
Please contact the AluK project team for more information on the full scope of colour ranges available. |
Finish | Anodized Powder-coated Coated Matt Mill |
Material | Aluminium Glass |
Shape | Rectangle Square |
Length | Bespoke Manufacturer guidanceDepth. |
Width | Bespoke Guidance for specification option: Maximum width of 3000 mm per leaf. |
Height | Bespoke Guidance for specification option: Maximum 3500 mm height per leaf. |
Warranty description | Ten year Guidance for specification option: Up to 10 year AluK system warranty available upon request. Subject to terms and conditions. For more information please contact the AluK project team. |
Uniclass | |
CAWS | L20/520 Sliding doors L20/60 Doors |
Product range |
Specification data - Sliding door and partition sets
Performance | External. |
Arrangement | Inline sliding. |
Track system | Duo rail (double track). |
Door leaves | |
Construction | Two panels, two sliding (XX).Two panels, one sliding (XO).Two panels, one sliding (OX).Four panels, two sliding (OXXO).Three panels, two sliding (XXO).Three panels, two sliding (OXX).Four panels, two sliding (90° corner post).Manufacturer guidanceConsult manufacturer's literature for details. |
Finish and colour | Anodized.Powder-coated.Coated.Matt.Mill.Metallic.Painted.Satin.Semi-gloss.Gloss.Pre-treated.Manufacturer guidanceInsert requirements.
Please contact the AluK project team for more information on the full scope of colour ranges available. |
Operation | Manual. |
Hardware | Guidance for specification option:
|
Execution | Manufacturer guidanceThe AluK sliding door system shall be fabricated and installed by AluK authorised fabricators only, in complete accordance with the information and guidance released by AluK (GB) Ltd. |
Dimensions | Guidance for specification option: Insert requirements.
|
System depth | 175 mm. |
Sightline | 21 mm. |
Panel weight | 400 kg. Manufacturer guidanceMaximum panel weight. |
Glazing | Internal, 35–52 mm. |
Thermal insulation (U-value) | 1.3 W/m²K (double glazing). |
Air permeability | Class 4 (600 Pa). |
Wind resistance | Class C3 (1200 Pa up to 160 km/h). |
Watertightness | Class 8A (450 Pa). |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 2.0 kg CO₂ eq/kg Self declared Guidance for specification option: This is the best performing embodied carbon performance value based upon the aluminium billet only and is available upon request. Please contact the AluK project team for further information and availability.
A maximum of value of 6.0 and an average of 4.5 is currently offered as standard, this is system and section choice dependent. |
Recyclability | 95% Guidance for specification option: Up to 95% of the aluminium content only of the window system is recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % Guidance for specification option: This is the best performing recycled content of the aluminium billet only and has limited availability upon request. Please contact the AluK project team for further information and availability. |
Third party certifications
Axalta Approved Architectural Applicator Certificate
Alesta® Powder Coatings
QA Certificate
Council for Aluminium in Building Certificate 2024
BS EN 12206:2021
Interpon Powder Coatings Applicator
ISO 9001 Quality Management
ISO 9001: 2015 Quality Management Systems Certificate
Qualicoat approval
Qualicoat Seaside Applicator Certification
Literature
AluK Infinium Sliding Door System Datasheet
AluK Specification Guide
AluK Colour Collection
