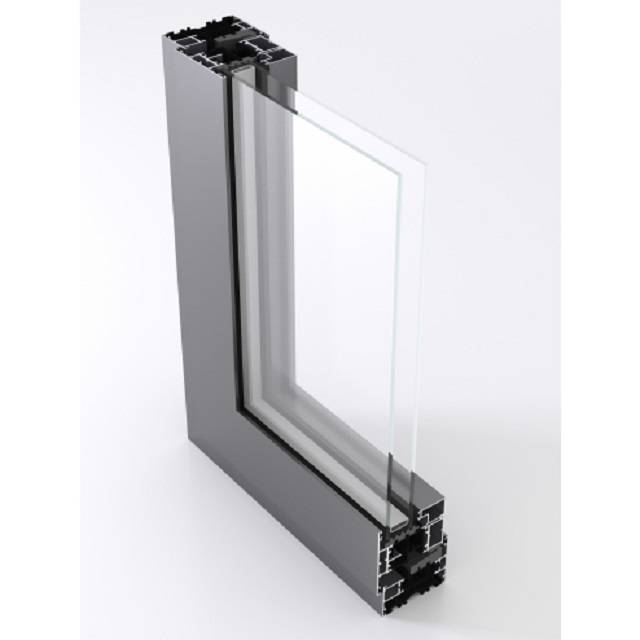

AluK C70S Open Out Thermally Broken Window System
Compare variants

AluK C70S Open Out Thermally Broken Window System

Fixed Light: Anodized.

AluK (GB) Ltd Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Aluminium open out casement window.

Jump to:
+44 (0)1291 639739 uk.aluk.com

Application

Suitable for use with residential and commercial new build and refurbishment projects.

Description

Aluminium open out casement window.


Features and benefits:

  • Wide range of styles and designs including top hung, side hung and fixed light.
  • Windows project out and can be fully customized in terms of security, weather and functionality.
  • Windows are Secured By Design accredited and are Q-Marked in accordance with BS 4873 and PAS 24.
  • Aluminium profiles are extruded in accordance with BS EN 12020, and are manufactured from grade 6060/ 6063 T6 aluminium.
  • Compliant with ADL1/ ADL2 capable of achieving U Values of 1.1 W/m²K.
  • A variety of powder coated colours are available in accordance with BS 6496 and BS EN 12206-1:2004.
  • Powder coating is applied to a Qualicoat standard, utilizing an inline flash anodizing pre-treatment process, with the polyester powder coating applied within 30 minutes of the flash anodizing process to ensure suitable adhesion.
  • Windows can be dual coloured, textured or have an anodized finish.
  • In accordance with BFRC regulations including BS EN ISO 10077–2, 58BW Internal Glazed Commercial Windows can achieve: Window Energy Rating - ’TBC’.


General information

Color

Other

Insert RAL colour requirement or type 'Not applicable' for anodized.

Finish

Anodized

To a minimum 15 micrometres thickness.

Polyester powder coated

Polyester powder coated to a minimum 60 micrometres thickness.

Polyester powder coated to a minimum 60 micrometres thickness with marine environment guarantee.

Material

Aluminium

Glass

Shape

Rectangle

Width

Recommended size limits (maximum).

700 mm

Side hung sash (standard hardware limits).

Side hung sash (restricted hardware limits).

Side hung sash (tested size).

1000 mm

Side hung sash (heavy duty hardware limits).

1500 mm

Top hung sash (tested size).

1680 mm

Top hung sash (standard hardware limits).

Top hung sash (restricted hardware limits).

Top hung sash (heavy duty hardware limits).

2400 mm

Casement fixed light.

Height

Recommended size limits (maximum).

1200 mm

Side hung sash (tested size).

1300 mm

Top hung sash (restricted hardware limits).

Top hung sash (tested size).


1500 mm

Top hung sash (standard hardware limits).

1680 mm

Side hung sash (standard hardware limits).

Side hung sash (restricted hardware limits).

Side hung sash (heavy duty hardware limits).


2400 mm

Casement fixed light.

Show more

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/25 Aluminium windows

L10/330 Aluminium windows

Product range

Casement Window

Specification data - Aluminium window units Enhanced data

Dimensions and configurations

Fixed light.

Product performance

-

Weather performance

-

Air permeability

Class 4 (600 Pa).

Watertightness

E1500 (1500 Pa).

Resistance to wind load

E2400 (2400 pa).

Safety

-

Security level

Secured By Design certification and to PAS 24.

Thermal

-

Whole window U-value

1.1 W/m²K.

Frame

-

Finish as delivered

-

Coating

Anodized.

To a minimum 15 micrometres thickness.

Colour

Not applicable.

For anodized.

Film thickness (minimum)

15 micrometres.

Ventilator

Not required.

U26120.

Open out vent.

Glazing or infill

-

Requirements

Glass panels.

28–50 mm glass look-a-like panels, insert requirements.


Glass look-a-like panels incorporating two panes of minimum 6 mm thick glass, with a 16 mm argon gas filled cavity and ceramic painted internal face with foil backed insulation to achieve a maximum 0.35 W/m²K centre pane. Exposed internal faces of insulation incorporate an internal polyester powder coated aluminium tray backing.

Glazing.

28–50 mm insulating glass units, insert requirements.


Insulating glass units incorporating a clear low emissivity inner pane and a clear outer pane with an argon gas filled cavity and 'warm edge' spacer bar to achieve a maximum centre pane U-value of 1.0 W/m²K. All glass within 800 mm from FFL should be toughened or laminated (within 1500 mm from FFL if within 300 mm of a door).

Infill panels.

28–50 mm insulated sandwich panels, insert requirements.


Insulated sandwich panels incorporating two sheets of a minimum 2 mm thick polyester powder coated aluminium sheet to match framing and minimum 24 mm non-combustible foam insulation core.

Operation

-

Type

Manual.

Execution

Fixing of aluminium frames.

Product Reference

AluK C70S Open Out Thermally Broken Window System

Outer frame

U26000.

(70 mm) odd leg frame.

U26001.

(70 mm) 43 mm equal leg frame.

U26002.

(70 mm) 53 mm equal leg frame.

U26003.

(70 mm) 73 mm deep head frame.

U26004.

(70 mm) open out CW frame.

Mullion/ transom

Not required.

U26600.

57.5 mm transom/ mullion.

U26601.

68 mm transom/ mullion.

U26602.

57.5 mm transom/ mullion.

U26603.

68 mm transom/ mullion.

Coupler

Not required.

U26900.

25.5mm coupler.

U26901.

35.5mm coupler.

U26902.

'H' coupler.

U26904.

Concealed coupler.

Show more

Sub sill

Not required.

U26903.

Sub sill.

Ironmongery

Insert requirements.

  • Accommodation for Euro Groove shootbolt locking.
  • Compatible with a range of 17 mm stack height standard and heavy-duty friction stays.
  • Compatible with butt hinge.


Accessories

Not required.

K1457.

Cill cover.

K1459.

Reinforcing bar.

K1460.

Reinforcing bar cover.

K50.

Drip bar

Show more

Texture

Not applicable.

Bead

Square.

Size:

Recommended size limits (maximum).

2400 x 2400 mm.

Casement fixed light.

As drawing.

Insert reference.

As schedule.

Insert reference.

Panel weight

Recommended weight limits (maximum).

Not applicable.

Environmental information

Country of product manufacture

United Kingdom

Third party certifications

QA Certificate

QA Certificate

BM Trada: Q Mark PAS 24

QA Certificate

QA Certificate

BM Trada: Q Mark BS 4873
