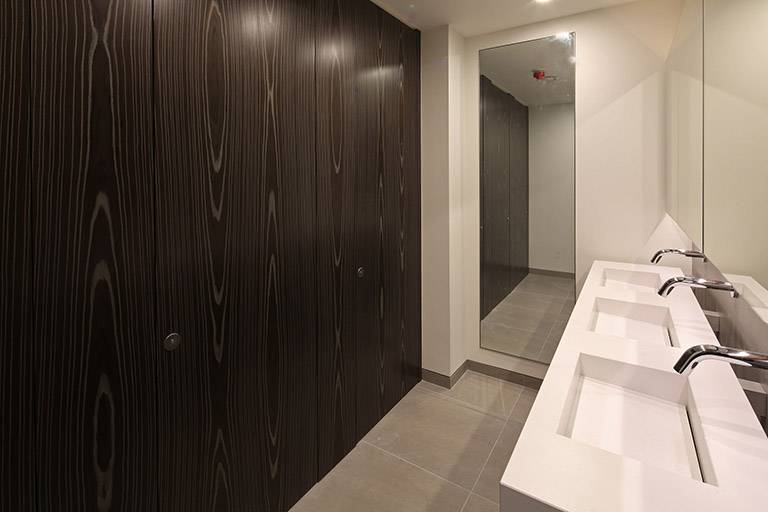

Name: Alto Cubicles - Accessible Cubicle - Toilet or changing cubicle
Brand: Washroom Washroom Ltd
SKU: huzNvm5dKCpn8heQPVGE8h

Color

Manufacturer guidance

Arpa, Abet,Sonae, Formica, Veneer, Glass Collection depending on Material.

Finish

Veneered

Glazed

Laminated

Size

Manufacturer guidance

2400 mm overall height, including 20 mm floor and ceiling clearance to doors.

Width

Manufacturer guidance

1500–1800 mm.

Height

3000 mm

Warranty description

One year

Guidance for specification option:

From practical completion

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Panels

PAR softwood frame laminated where required or 12 mm MR MDF or 44 mm particle board hardwood lipped and laminated both sides with real wood veneer or high pressure laminate.

Pilasters

Manufactured from 44 mm particleboard, faced in either high quality real wood veneer or high pressure laminate (HPL).

Doors

Manufactured from 44 mm particleboard, faced in either high quality real wood veneer or high pressure laminate (HPL). Edges are then rebated to create the flush design.

Lippings

Matching/ complementing hardwood. Edges are then rebated to create the flush design.

Hardware

D-Line stainless steel indicator bolts.

Royde and Tucker fall closed hinges.

Stainless steel coat hook.

Hydraulic door dampener.

System accessories

Grab rail.

Manufacturer guidance

Alto cubicles are available in configurations to comply with Approved Document M (E&W), complete with outward opening doors. A standard stainless steel pull handle is supplied to the outside face of all outward opening cubicle doors. Complementary grab rails are also available.

Type

AltoHPL1.

AltoHPL2.

AltoV1.

AltoV2.

Manufacturer guidance

- Toilet cubicles with veneer fronts and partitions:

- AltoV1:

Doors and Pilasters: 44 mm chipboard faced on both sides with real wood veneer.
Partitions: Overall partition thickness of 80 mm comprising: treated PAR softwood frame, veneered where required, clad both sides with lift off removable panels (18 mm MR MDF faced on one side with veneer, balanced on reverse with edges lipped first in corresponding hardwood).
Veneer species: Various options available, please consult Washroom Washroom for exact information and codes. Factory finished with a two part AC lacquer.

- AltoV2:

Doors and Pilasters: 44 mm chipboard faced on both sides with real wood veneer.
Partitions: Overall partition thickness of 48 mm comprising: 12 mm MR MDF central support panels, fitted to floor with SAA channels, clad both sides removable panels (18 mm MR MDF faced on one side with veneer, balanced on reverse with edges lipped first in corresponding hardwood).
Veneer species: Various options available, please consult Washroom Washroom for exact information and codes. Factory finished with a two part AC lacquer.

- Toilet cubicles with laminate fronts and partitions:

- AltoHPL1:

Doors and Pilasters: 44 mm chipboard faced on both sides with high pressure laminate (HPL).
Partitions: Overall partition thickness of 80 mm comprising: treated PAR softwood frame, laminated where required, clad both sides with lift off removable panels (18 mm MR MDF faced on one side with high pressure laminate, balanced on reverse with edges lipped in laminate to match face).
Laminate: Various options available, please consult Washroom Washroom for exact information and codes.
Colour: To be confirmed from WW standard HPL range, subject to depth of partition.

- AltoHPL2:

Doors and Pilasters: 44 mm chipboard faced on both sides with high pressure laminate (HPL).
Partitions: Overall partition thickness of 52 mm comprising: 12 mm MR MDF central support panels, fitted to floor with SAA channels, clad both sides removable panels (18mm MR MDF faced on one side with high pressure laminate, balanced on reverse with edges lipped in laminate to match face).
Laminate: Various options available, please consult Washroom Washroom for exact information and codes.
Colour: To be confirmed from WW standard HPL range, subject to depth of partition.

Outward opening doors

Not required.

Required.

Manufacturer guidance

Can be accommodated and come complete with satin polished stainless steel pull handles to the outside face of the doors.

Platform

Compatible

Version

IFC

IFC2X3

Revit

Revit 2015

Alto Cubicles - Accessible Cubicle - Toilet or changing cubicle

Application

Description

General information

Color

Manufacturer guidance

Finish

Size

Manufacturer guidance

Width

Manufacturer guidance

Height

Warranty description

Uniclass

CAWS

Product range

Specification data - Panel cubicle systems

Panels

PAR softwood frame laminated where required or 12 mm MR MDF or 44 mm particle board hardwood lipped and laminated both sides with real wood veneer or high pressure laminate.

Pilasters

Manufactured from 44 mm particleboard, faced in either high quality real wood veneer or high pressure laminate (HPL).

Doors

Manufactured from 44 mm particleboard, faced in either high quality real wood veneer or high pressure laminate (HPL). Edges are then rebated to create the flush design.

Lippings

Matching/ complementing hardwood. Edges are then rebated to create the flush design.

Hardware

D-Line stainless steel indicator bolts.

Royde and Tucker fall closed hinges.

Stainless steel coat hook.

Hydraulic door dampener.

System accessories

Grab rail.

Manufacturer guidance

Type

Manufacturer guidance

Outward opening doors

Manufacturer guidance
