ALTA 3000 Series Fire Rated

Name: ALTA 3000 Series Fire Rated
Brand: Access 360
SKU: kU32kMBXCfvbcQmz75bhrG

Verified by manufacturer 3 months ago

631 x 542 mm

Access 360

Third party certifications:

ISO 9001 Quality Management
Certificate type

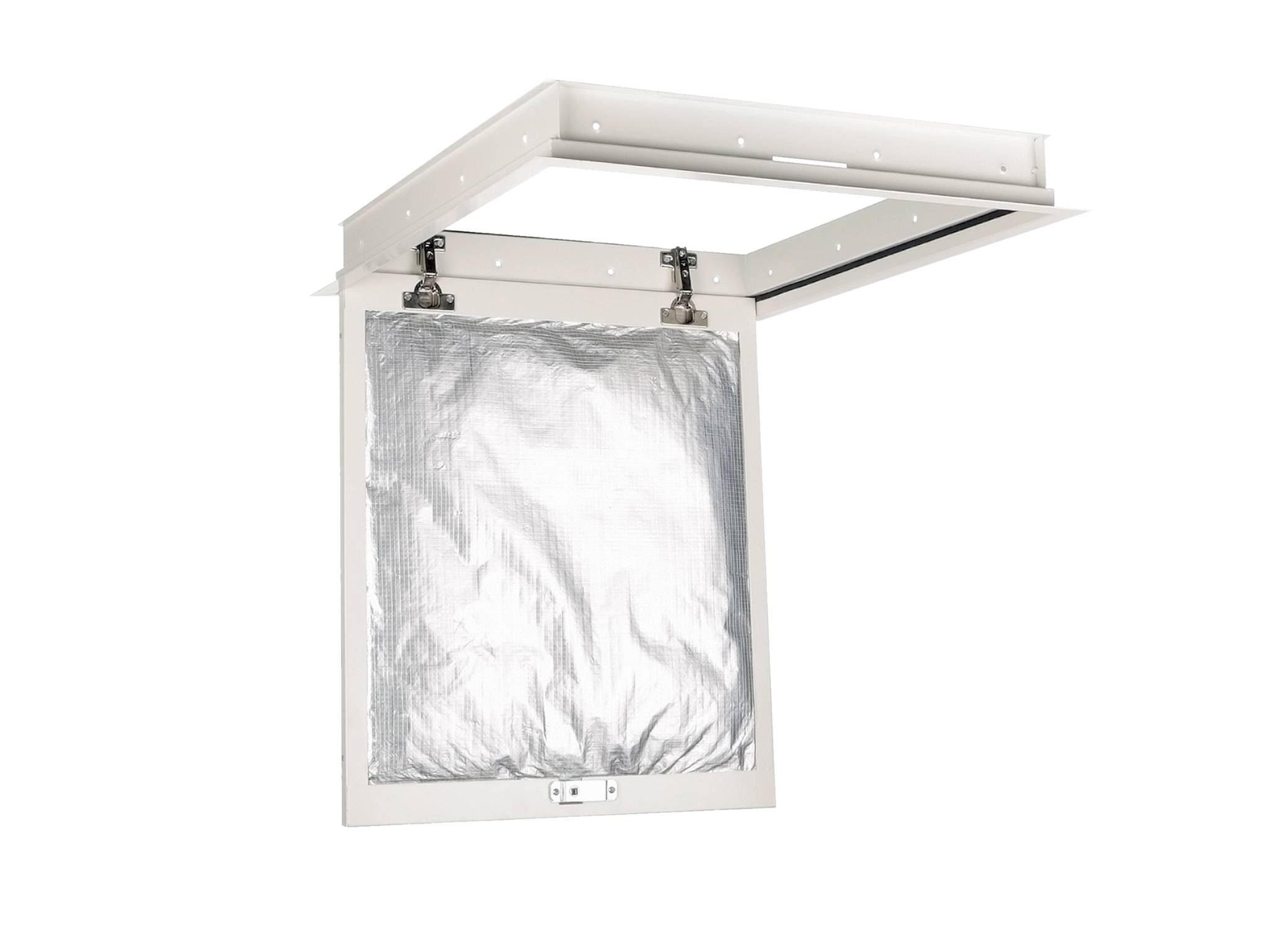

One hour fire rated loft hatch ceiling access panel.

Jump to:

+44 (0)1827 718222 Website

Application

Suitable for internal use and in areas of normal humidity in new-build or retro-fit residential properties.

Description

One hour fire rated ceiling access panel designed to provide access to loft spaces between 50 mm wide timber truss, joisted plasterboard or plaster ceilings.

Features and benefits:

Fire rated up to 60 minutes.
Provides permanent access to the roof void.
Lockable.
Quick and easy installation with fully adjustable hinges.
Discreet appearance when installed with a flush metal door.
Single door configuration.
Etch primed for on site decorating, to match adjacent finishes.
Available in a choice of beaded or picture frame edge profiles to suit application.
The door is foil-backed with mineral wool insulation.
CNC manufactured in the UK to ISO 9001:2015 and 14001:2015.
Fully recyclable at end of life.

General information

Color	White Guidance for specification option: Factory finished powder-coated matt RAL 9010. Other Guidance for specification option: Suitable for on site finishing.
Finish	Powder-coated
Material	Steel Guidance for specification option: Electro-galvanized mild steel.
Shape	Rectangle
Length	631 mm 746 mm
Width	542 mm
Warranty description	Five year

Uniclass	Pr_30_59_36_01 Access panelsPrimary
CAWS	K10/245 Ceiling lining on timber K10/430 Access panels K10/25 Ceiling lining on timber L20/630 Hatches

Specification data - Access panels

Fire performance	-
Fire resistance	60 minutes to BS 476-22.
Position	Ceiling-mounted.
Size	631 x 542 mm.
Frame	Beaded. Guidance for specification option: The beaded frame edge profile is suitable for ceilings where the panel is being installed prior to any tape and jointing or skim-coat plastering. Picture. Guidance for specification option: The picture frame edge profile is suitable for retro-fit to ceilings where the panel is being installed after finishing work is complete.
Panel	-
Material	Electro-galvanized mild steel. Guidance for specification option: 1.2 mm thick frame and 0.9 mm thick door.
Integral finish	Powder-coated, matt, RAL 9010. Guidance for specification option: Standard factory finish, suitable for finishing on site. Powder-coated, RAL colour. Guidance for specification option: Insert requirements.
Latch or lock type	Budget lock. Guidance for specification option: Supplied with T-bar key and a white bung for a concealed aesthetic finish. Security lock. Guidance for specification option: With chrome escutcheon to door face for captive key entry (keys included).
Operation	Concealed adjustable hinges, downward opening.
Integral accessories	Rubber foam, compressible dust seals fitted all round.

Acoustic performance	23 dB. Guidance for specification option: As standard. Manufacturer guidance Acoustic shielding.
Weight	8.5 kg.
FrameDepth	80 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Material	Steel Guidance for specification option: Electro-galvanized mild steel.
Recyclability	Fully recyclable at end of life.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 %
