ALMA VERT - Structural Thermal Break
Verified by manufacturer 4 days ago
ALMA VERT 115 kg/m³
ALMA VERT 115 kg/m³
A recycled panel for structural insulation.
Application
ALMA VERT is an ecological solution for reducing thermal bridges and is suitable for both internal and external use.
- Thermal bridge-free installation of windows and doors (according to DIN 4108 – Supplement 2).
- Thermal separation.
- 100% water-resistant an outstanding property that allows for diverse application opportunities: separation walls in wet and damp room areas, window sill connection profiles.
- Secure connection of insulation to concrete upstand.
Description
ALMA VERT is a recycled panel for high-performance structural insulation. Made of up to 100% PET recycled material.
Features and benefits:
- Efficient thermal break.
- Excellent mechanical strength.
- High compressive strength.
- Optimal insulation properties.
- Permeable to water vapour diffusion.
- Low thermal conductivity.
- Lightweight composite structure.
General information
Color | Green |
Material | Polyester fibre (PET) |
Shape | Rectangle |
Length | 1218 mm |
Width | 1005 mm |
Height | 50 mm 75 mm |
Uniclass | |
CAWS | E40/440 Load transfer systems E40/445 Insulating load transfer systems E40/445 Insulating load transfer systems |
Product range |
Specification data - Thermal break connection plates
Material | Polyethylene terephthalate (PET). |
Dimensions | |
Length | 1218 mm. |
Width | 1005 mm. |
Thickness (maximum) | 50 mm.75 mm. |
Compressive stress (maximum) | To ISO 844, 1.8 MPa, 260 psi. |
Operating temperature (maximum) | –20°C. |
Operating temperature (minimum) | + 60°C. |
Thermal conductivity | To EN 12667, 0.034 W/mK. |
Density | 115 kg/m³. |
Reaction to fire to EN 13501 | Class E (6). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Polyester fibre (PET) |
Recyclability | 100% Recyclable polymer |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Expected Life | Lifetime |
Literature

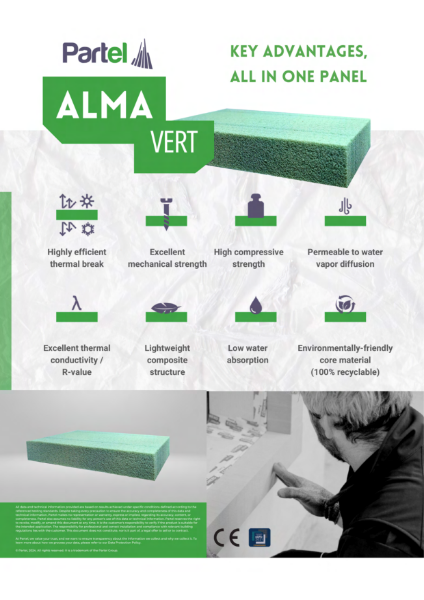

ALMA VERT Technical Data Sheet
Case studies
The Willows, EnerPHit Retrofit
