Alhena

Description

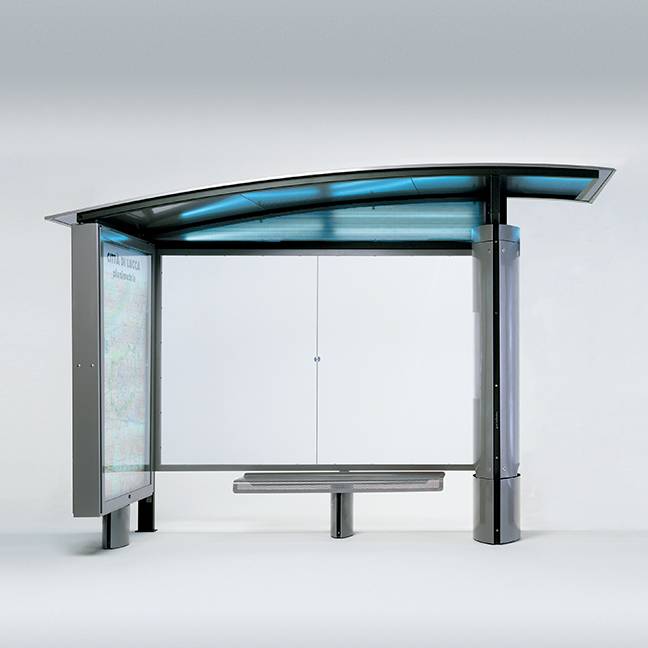

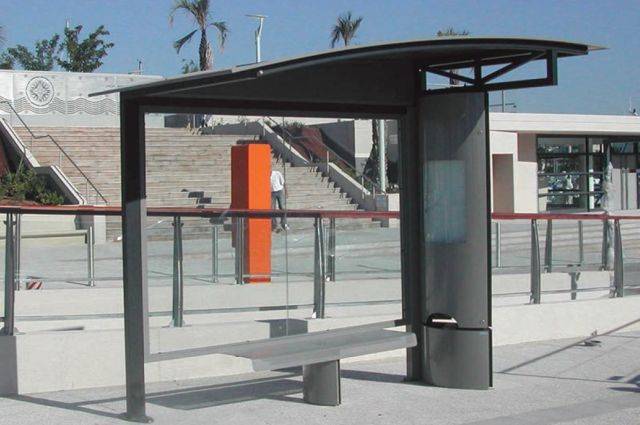

Tubular shelter with elliptical profile, from Metalco's Stile collection.


A powder-coated tubular steel bearing structure, equipped on one side with curved steel sheets to give an elliptical profile and finished with an extruded aluminium edging. The rear wall is made up of a steel profile frame and two sheets of tempered glass with polished edges.


It is available in one standard size and with various accessories, and is pre-drilled for anchor fixing.

General information

Finish

Powder coated

Material

Steel

Shape

Ellipse

Size

2710 x 3640 x 1600 mm

Uniclass 2015

Pr_20_65_78_77 Semi-closed sheltersPrimary

CAWS

B91/385 Shelter

B91/420 Waiting shelter

Specification data - Semi-closed shelters Enhanced data

Dimensions

-

Height

2710 mm.

Frame

-

Material

Steel.

Finish

Powder coated.

Colour

Various available. Consult manufacturer and insert requirements.

-

Accessories

Not required.

Advertising space.

To post adverts or media information.

Litter bin.

With triangular key locking door and waste sack holding ring. To be located in the central pillar.

Neon lighting.

54 W lamps. To be placed around advertising space. Surrounded by perforated sheet panel.

Notice board.

With an aluminium frame and slam-lock, to be placed on the outer legs of the structure.

Steel seat.

Perforated.

Product Reference

Alhena
