Albany Railings

Name: Albany Railings
Brand: Alpha Rail Ltd
SKU: fhZargCf5uxKHVKVUEHi

Verified by manufacturer 6 months ago

Alpha Rail Ltd

Third party certifications:

ISO 9001 Quality Management
Certificate type

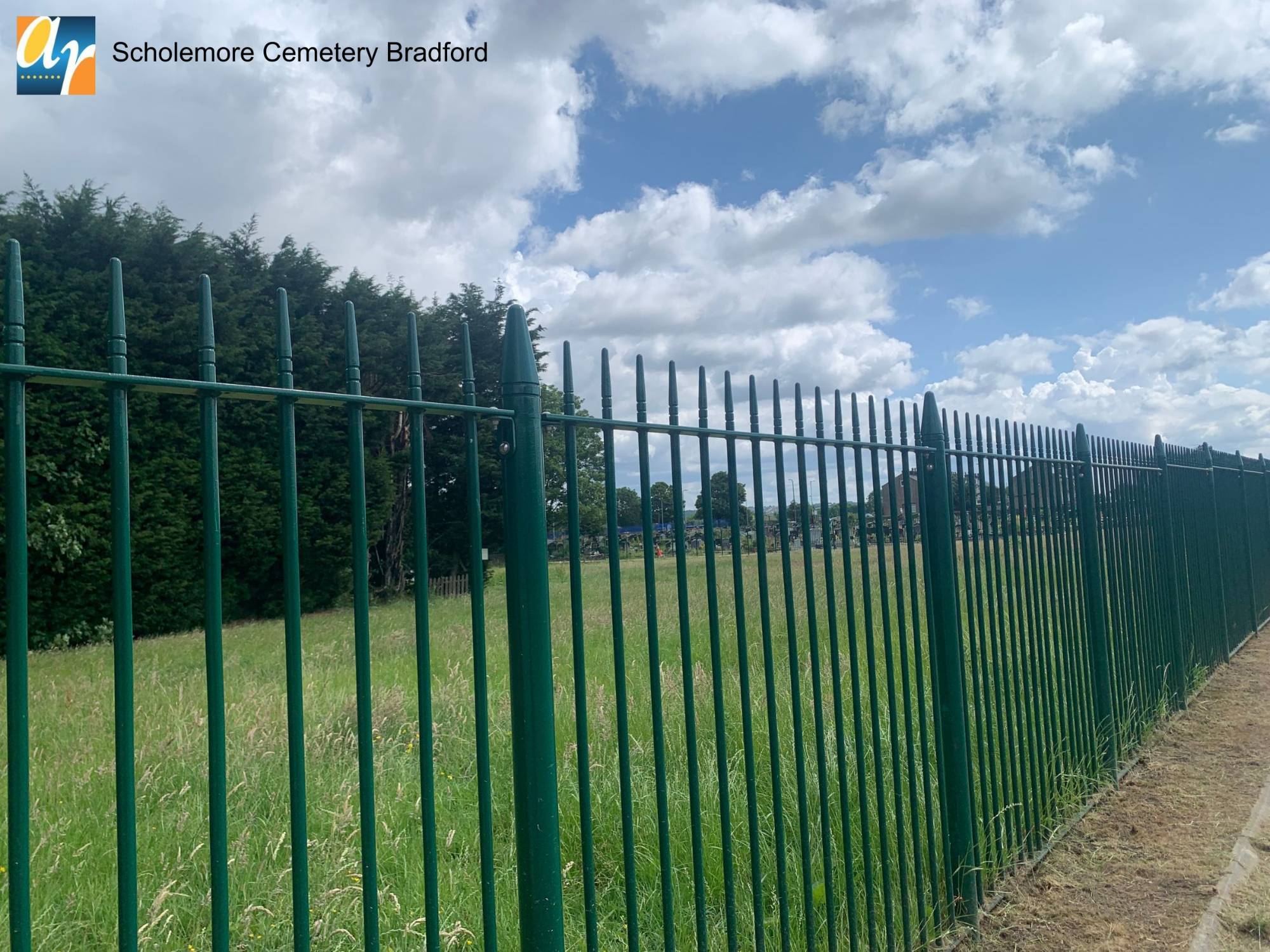

Steel vertical bar railings with decorative rail head.

Jump to:

+44 (0)1623 750214 Website

Application

Railings suitable for:

Housing developments.
Schools, colleges and universities.
Parks and outdoor space perimeters.
commercial and industrial properties

Description

The Albany Vertical Bar Railings are fabricated from round circular hollow section (CHS) posts and solid vertical infill bars, along with flat horizontal rails, which are completed by a machined top decorative rail head (finial).

Features and benefits:

Machined top decorative rail head (finial).
Manufactured bespoke.
Makes a particularly suitable secure boundary fence at heights of up to two metres.
Low height railings can be manufactured to be wall mounted into diamond cored holes or base plated to surface of brickwork.
Manufactured from steel.
Solid sections S275JR.
Hollow sections S235JR.
Supplied hot dipped galvanized.
Optional polyester powder-coating to a RAL colour.
Panel to post fixings included.
Manufactured and compliant with BS 1722 part 9.

General information

Color	Black Green Grey Silver Blue Red White Other Show more
Finish	Galvanized Powder-coated
Material	Steel
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	500 mm 900 mm 1100 mm 1500 mm 1800 mm 2000 mm Bespoke Show more

Uniclass	Ss_25_14_61_86 Steel vertical bar fencing systemsPrimary
CAWS	Q40/340 Steel vertical bar fencing Q40/430 Proprietary fencing Q40/30 Proprietary fencing

Specification data - Steel vertical bar fencing systems

Standard	To BS 1722-9.
Posts	Steel Ø45 mm CHS posts. Guidance for specification option: Up to 1.6 m high. Steel Ø76 mm CHS posts. Guidance for specification option: Up to 2 m high.
Post foundations	Ground fixed into concrete foundation. Base plated fixing. Rooted into pockets. Manufacturer guidance Consult manufacturer for details.
Base boards	Carbon steel panels.
Rails	40 x 10 mm RSF rails. 50 x 10 mm RSF rails.
Panels	Carbon steel framed vertical round bar panels, Ø16 mm. Guidance for specification option: Up to 1.4 m high. Carbon steel framed vertical round bar panels, Ø20 mm. Guidance for specification option: Up to 2 m high.
System accessories	Not required. Single leaf gate to suit. Double-leaf gates to suit. Support legs.

Finial	Decorative rail head (finial).
Panel height	500 mm. 900 mm. 1100 mm. 1500 mm. 1800 mm. 2000 mm. Bespoke. Guidance for specification option: Consult manufacturer and insert requirements. Show more
Post centres	2000–2750 mm.
Finish	Hot dip galvanized to BS EN ISO 1461.
Factory applied coating	Not required. Polyester powder-coated. Guidance for specification option: Powder-coated to any RAL or BS colour. Insert requirements.
Fixings	Panel to post fixings.
