AkuPanel Acoustic Panel

AkuPanel Acoustic Panel

WoodUpp Third party certifications:
  • Quiet Mark Certification

    Quiet Mark Certification

    Certificate type

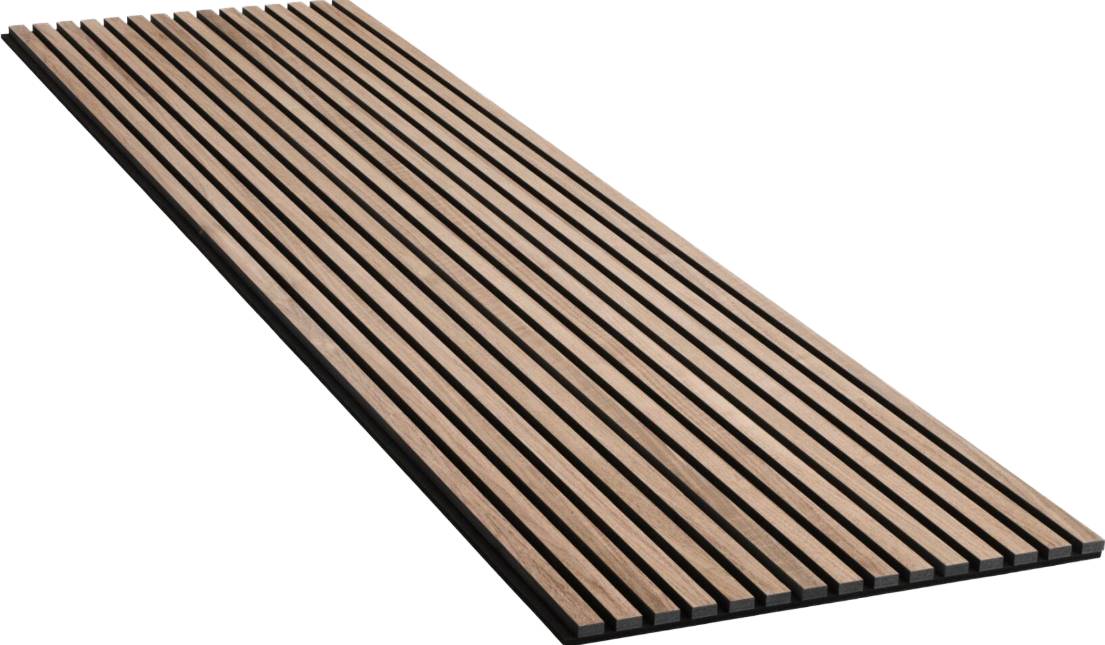

Slatted sound-absorbing acoustic panels with a timber veneer.

Jump to:
+44 (0) 7999 505 404 https://woodupp.co.uk/

Application

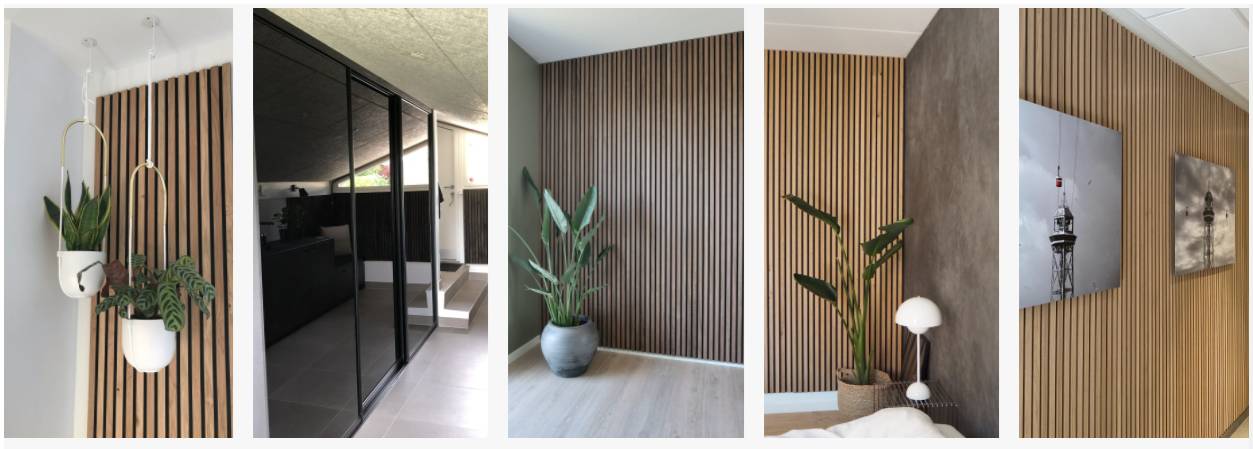

Improved acoustics for domestic and commercial applications, including in corridors, living rooms, bedrooms, kitchens and dining rooms and offices.

Description

Slatted sound-absorbing acoustic panels with a timber veneer.


Features and benefits:

  • Improves a room's acoustic whilst providing visual appeal.
  • Comprises a layer of acoustical felt with medium-density fibreboard (MDF) slats finished with wood veneer.
  • Wood sourced from sustainable forestry; acoustical felt made of recycled plastic bottles.
  • Easy to install.
  • Can be mounted onto battens and mineral wool (achieving up to sound class A) or directly to the wall (sound class D).
  • Boards can be butted together and/ or cut down to suit project requirements.

General information

Shape

Rectangular

Color

Brown

Slats (core can be black or brown).

Material

Wood

HDF

Felt

Size

2400 x 600 x 22 mm

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary
Pr_25_71_97_53 Medium-density fibreboards

CAWS

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

Specification data - Sound attenuator infill units Enhanced data

Form

Panel.

Rigidity

Flexible (width).

Panels can be cut in the length or width by butting the slats/ backing felt. The panels are flexible across the width and can be used on curves with a radius of up to approx. 150 mm.

Application

Note that desired sound class will determine installation method; consult manufacturer literature for details.

Wall mounting.

Ceiling mounting.

Wall/ ceiling mounting.

Material

Polyester fibre (PET) acoustic felt/ moisture-repellant MDF/ wood veneer.

Material density

Manufacturer's standard.

Consult manufacturer for details.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

The acoustic rating will vary depending on the installation method; consult manufacturer for details.

Class A.

When mounted with 45 mm-thick mineral wool between 45 mm battens behind the panels: see manufacturer's literature for details on installation required.

Class D.

Direct mounting to walls.

Fire performance

-

Combustibility

Manufacturer's standard.

Consult manufacturer for details.

Reaction to fire

Manufacturer's standard.

Consult manufacturer for details.

VOC emissions

Manufacturer's standard.

Consult manufacturer for details.

Dimensions

-

Size (length x width)

2400 x 600 mm.

Slats are 27 mm wide, with 13 mm gaps between.

Thickness (overall)

22 mm.

Timber/ MDF slats are 11 mm deep on a base layer of 9 mm-deep acoustic felt.

Profile

Linear.

Edges

Square.

Surface pattern

Slatted.

Finish

Manufacturer's standard.

Bespoke.

Bespoke finishes are available on request, subject to a minimum order quantity; consult manufacturer for details.

Colour

Consult manufacturer for options and insert requirements. Samples are available on request.


  • Felt: black.
  • MDF: Black or natural.
  • Timber: as specified.


All standard timber* options can be supplied with grey felt on request, subject to a minimum order quantity; consult manufacturer for details.

*Grey felt available as standard with Classic Oak only.

Classic Oak with black felt.

Classic Oak with grey felt.

Rustic Natural Oak with black felt.

Rustic Antique Oak with black felt.

Walnut with black felt.

Rustic Grey Oak with black felt.

Rustic Smoked Oak with black felt.

Blue Oxide with black felt.

White Oxide with black felt.

Black Ash with black felt.

Bespoke.

Bespoke colours are available on request, subject to a minimum order quantity; consult manufacturer for details.

Accessories

None.

Additional backing felt.

Additional slats.

Environmental information

Country of product manufacture

Denmark

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library

Third party certifications

Quiet Mark Certification

Quiet Mark Approval
