AIRTRAK® IM Insect Mesh - Roof Ventilation System

Verified by manufacturer 25 days ago

Nicholson STS Ltd Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Insect mesh for use in any roof ventilation apertures.

Jump to:
+44 (0) 1763 295828 Website

Application

Roof applications; for use in any roof ventilation apertures.

Description

Insect mesh for use in any roof ventilation apertures.


Features and benefits:

  • Increased size of the mesh provides optimum airflow whilst excluding unwanted insects from the roof void.
  • Ventilation free open area of 66%.
  • Can be ordered by the metre.


Installation:

To be cut to the required length and fastened into position using non-ferrous staples or nails. Consult manufacturer's literature for further details.

General information

Color

Black

Finish

Metallic

Material

Glass Reinforced Plastic (GRP)

Width

75 mm

Warranty description

Ten year

Uniclass

Pr_30_59_57_40 Insect guard meshPrimary

CAWS

N16/320 Mesh screens

L10/59 Solar shading system

L10/680 Solar shading system

Specification data - Insect guard mesh

Material

Glass reinforced plastic (GRP).

Finish

Vinyl coated.

Length

Guidance for specification option:

Insert requirement.

Width

75 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Glass Reinforced Plastic (GRP)

Recyclability

Recyclable at end of life

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %

Expected Life

30 year

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

Citation

Literature

AIRTRAK-FR Fire Resistant Ventilators

AIRTRAK-FR Fire Resistant Ventilators

AIRTRAK Roof Void Ventilation System 2020

AIRTRAK Roof Void Ventilation System 2020

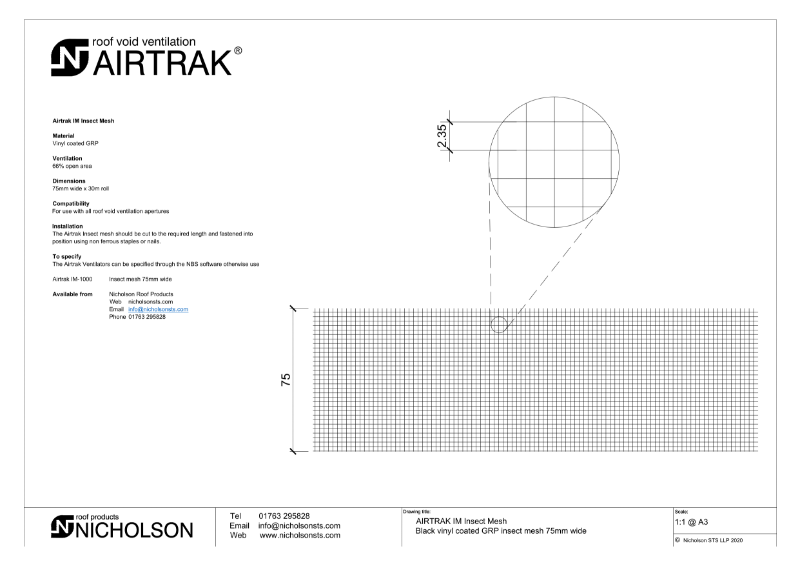

AIRTRAK IM Technical Data Sheet
