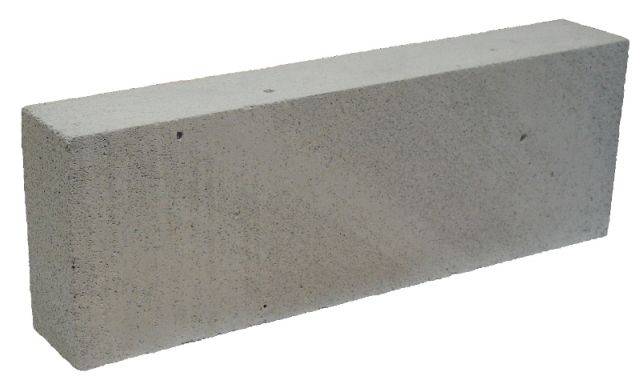

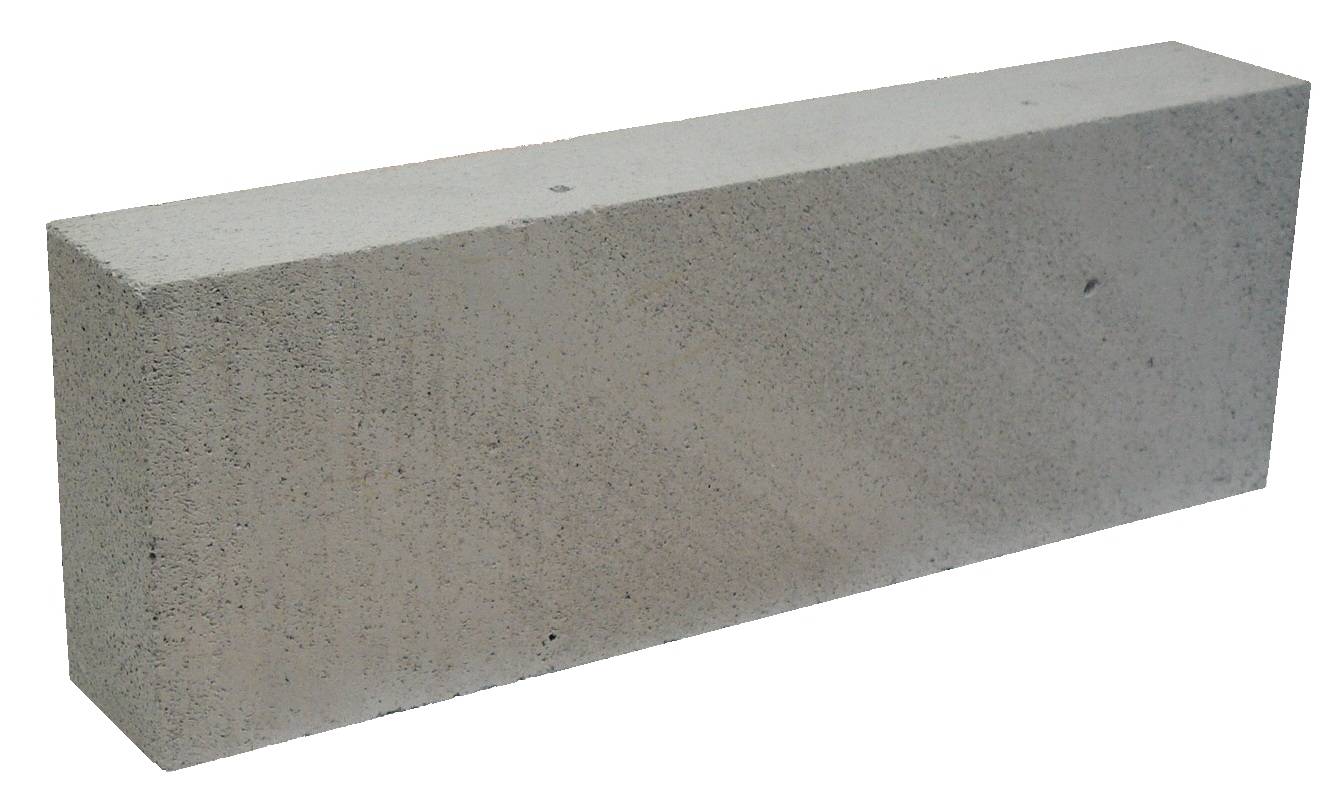

Airtec Standard Wall Block 100 mm

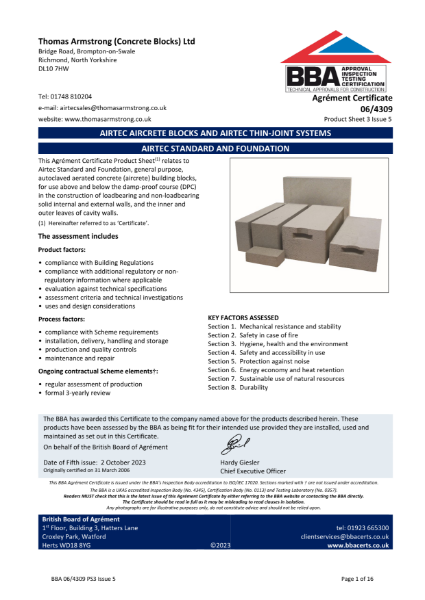

BBA Agrément Certificate
Certificate type
Autoclaved Aerated Concrete (AAC) standard wall blocks.
Suitable for external cavity or solid, loadbearing and non-loadbearing, party/separating, flanking, partition, fire resistant or foundation (below DPC) walls.
3.6 N aerated concrete block designed to offer superior thermal performance along with the structural capacity for up to three story construction.
Features and benefits:
Color | Grey |
Finish | Textured |
Material | Concrete |
Shape | Rectangle |
Length | 620 mm |
Width | 100 mm 140 mm 215 mm 190 mm |
Height | 215 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | F10/360 Autoclaved aerated concrete (AAC) common blockwork F10/37 Autoclaved aerated concrete (AAC) common blockwork F10/370 Thin-joint autoclaved aerated concrete (AAC) common blockwork F10/39 Thin joint autoclaved aerated concrete (AAC) common blockwork |
Standard | To BS EN 771-4. |
Configuration | Group 1. |
Mean compressive strength (minimum) | 3.6 N/mm². |
Category | I. |
Freeze/ thaw resistance | Frost resistant. |
Thermal conductivity (maximum) | 0.11 W/mK (inner leaf). 0.13 W/mK (outer leaf). |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80%. |
Work sizes (length x width x height) | 620 x 215 x 100 mm. |
Tolerance category | TLMB. |
Density | 530 kg/m³. |
Reaction to fire | Class A1 to BS EN 13501-1. |
Moisture movement | 0.40 mm/m. |
Shear bond strength | 0.15 N/mm². |
Water absorption by capillarity | 150 g/(m2 x s-0.5). |
Water vapour permeability | 5/10 μ. |
Thickness | 100 mm. |
Accessories | None. AIRTEC Brickettes (Coursing unit) Standard Wall. |
Weight | 61 kg/m²: walled weight. |
Coefficient of linear expansion (to ASTM D-696) | 0.6 x 10^-6/K. |
Shrinkage | 0.40 mm/m. Manufacturer guidanceDrying shrinkage. |
Water vapour resistance | 50 MNs/gm. |
Environmental Product Declaration (EPD) | ISO 14001. |
Face size | 620 x 215 mm. |
R-Value | 0.91 m² K/W. |
Sound reduction | 41 dB (Rw). |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Concrete |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | |
Declared unit | 168 kg CO₂ eq/m³ Self-declared Manufacturer guidance121 kgCO2e/m³ or 240 kgCO2e/tonne. |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
Expected Life | Lifetime |
