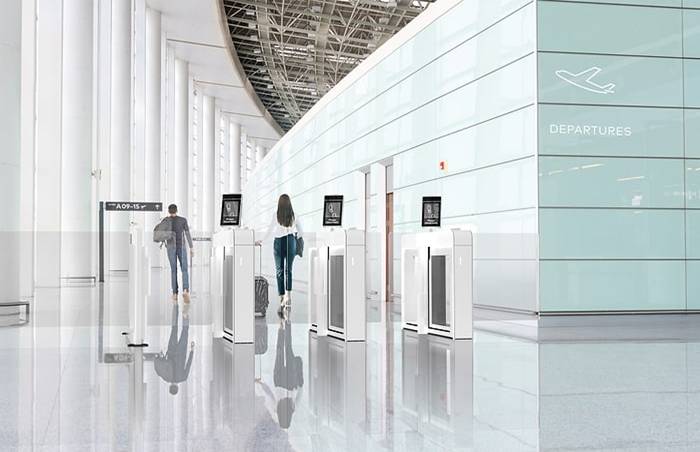

Airport speed gates Argus Air
Verified by manufacturer 3 days ago
Argus Air Boarding
Argus Air Boarding
Speed gates for airports.
Application
Suitable for use in airports for security, lounge and boarding access applications.
Not suitable for outdoor installation.
Description
Argus Air provides gate solutions that ensure efficient and ergonomic passenger flow. They cover the most important touch points in the airport passenger process from end to end including security, lounge access and boarding.
Features and benefits:
- 10" LCD colour display with integrated biometric face recognition.
- Low false acceptance and rejection rates thanks to the latest sensor technology with new light grid technology.
- High-end sensor technology: effective person and object detection by high frequency sensors and optimized algorithms.
- Anti-swapping function prevents people from swapping with other people.
- Intuitive user guidance through animated LED lighting.
- Multicoloured, configurable ambient and door lighting.
- Slim and quiet drive unit.
- Control unit of the current generation, UL requirements fulfilled.
- Components and user interfaces arranged on the basis of the specific ergonomic studies and many years of experience.
- Flexible integration of the desired components in a modular housing.
- Fast boarding process with contactless control using biometric verification, also prevents fraudulent use of travel documents.
- Intuitive user-guidance for smooth procedures.
General information
Color | White Guidance for specification option: Handrail. Clear Guidance for specification option: Safety glass door leaves. |
Finish | Powder-coated |
Material | Glass Metal |
Length | 1650 mm |
Width | 991 mm 1051 mm |
Height | 990 mm |
Uniclass | |
CAWS | L20/60 Doors L20/490 Automatic doors |
Product range |
Specification data - Half-height access control gates
Properties | |
Safety features | Not required.STV-ETS module for activation of emergency exits and escape routes.Guidance for specification option: Integrated SafeRoute terminal including licenses for up to six units. Door leaves are freely movable/doors move to open position. |
Configuration | Single system.Multiple system.Guidance for specification option: Consult manufacturer for options and insert details as required. |
Housing | |
Type | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Material and finish | Powder-coated gloss 30–40%. |
Colour | RAL 9006 Aluminium white. |
Panel | |
Type | Motorized flap leaf. |
Rotation | Swing. |
Speed of opening | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Material and finish | 10 mm toughened safety glass, upper edge 990 mm.Custom.Guidance for specification option: Upper edge of door leaf 990 mm up to 1300 mm (toughened safety glass 10 mm) available. Insert requirements. |
Colour | Transparent. |
Manifestation | Row of light grey squares. |
Size | |
Clear opening width (minimum) | 540 mm.Guidance for specification option: Total width: 991 mm (single unit). 900 mm.915 mm. |
Overall width | Manufacturer's standard.Guidance for specification option: Dependent on opening width(s) and configuration required. |
Length | 1650 mm. |
Height | 990 mm.Guidance for specification option: Upper edge of door leaf. Other.Guidance for specification option: Consult manufacturer for options and insert requirements. Door leaf increase up to 1300 mm, with drive unit 850 mm. |
Fixing | Guidance for specification option: Consult manufacturer for fixing details and insert details to suit floor type. |
Credential Reader | |
Type | Guidance for specification option: Scanner installation: Diverse barcode and document readers available. Customer devices may also be integrated (depending on size). Consult manufacturer and insert requirements. |
Power supply | 100–240 V a.c., 50/60 Hz, 300 VA. |
Accessories | Not required.Face pod.Guidance for specification option: With 10” screen and middle light with LED signal (red/ green). Face pod with touch function, biometrics and 7” rear screen.Installation preparation for customer device.Printer.Guidance for specification option: Thermal printer for seat imprint with Easy Load for fast paper change. Boarding gate reader.Guidance for specification option: Consult manufacturer for details and insert requirements. Basic license, additional NFC, biometrics, touch screen, and lounge access functions. Pax Check and Pax Control licenses and further modules available. |
Lighting | In the passage area LED white K4000. On the outside LED white K4000. Additional red and green for status display. |
IntegratedLightingType | Illuminated RFID icon in white, red and green. White-red-green running light integrated in the hand rail. Animated process icons on optional facepod. |
Sensors | Integrated in the guiding elements. |
Drive | Two servo-positioning drives, electrically controlled in main passage direction. |
Direction | Unidirectional passage. |
Sustainability data
Material | Glass Metal |
Recyclability | 163.89 kg |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Argus Air Boarding Factsheet
Airport Gate Argus Air Lounge
Airport Gate Argus Air Security
