Compare

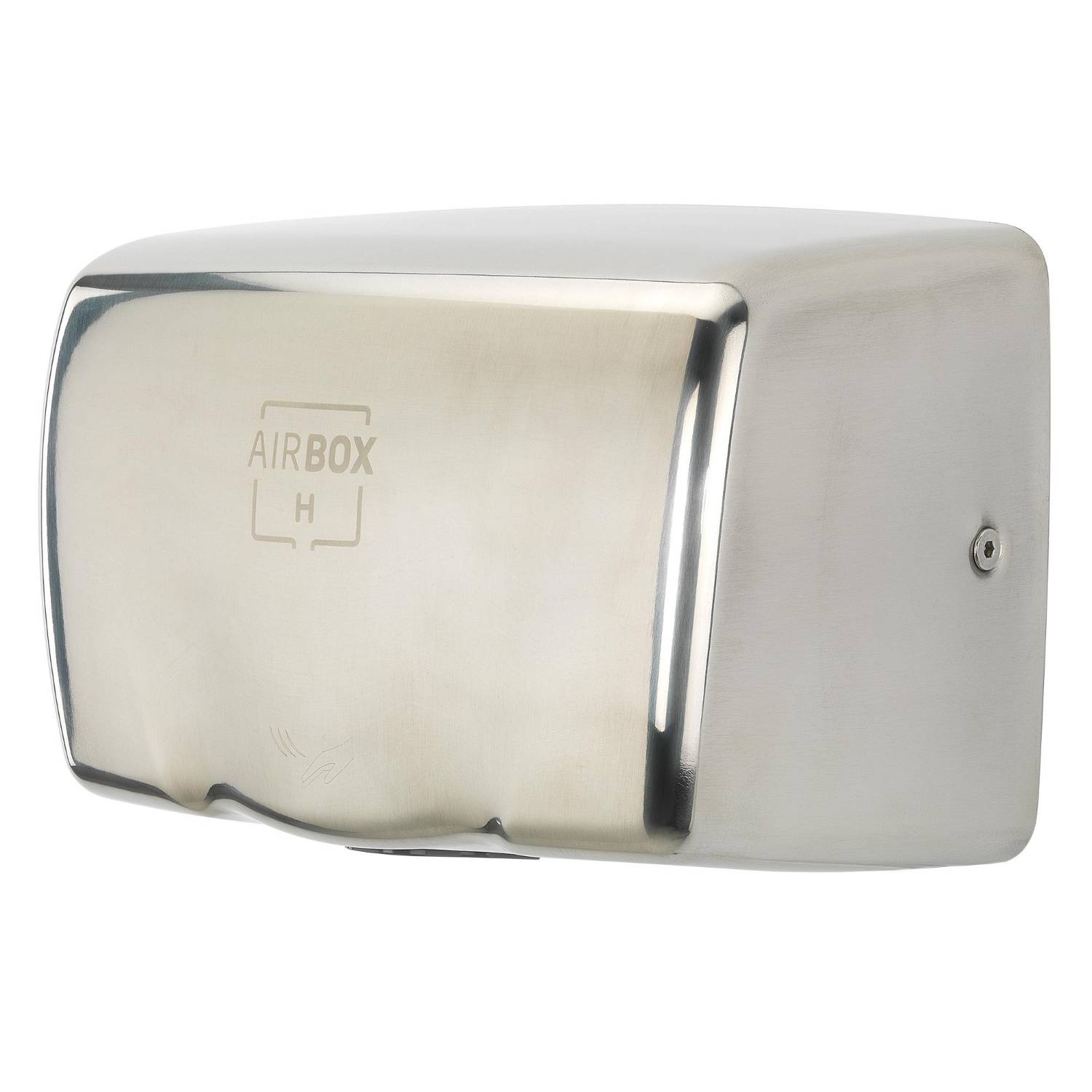

AirBOX V2 Sound Control Hand Dryer

Name: AirBOX V2 Sound Control Hand Dryer
Brand: Heat Outdoors & Handy Dryers
SKU: tdnRa57aSedNWJAWbPGdz1

Verified by manufacturer 6 days ago

AirBOX H

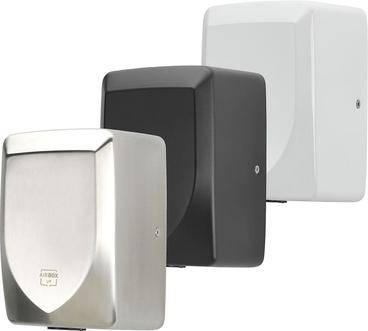

A range of ultra-small footprint hand dryers in a range of finishes.

Jump to:

BOS

Application

Washrooms where space-saving or avoidance of overcrowding is important.

A range of ultra-small footprint hand dryers in a range of finishes.

Features and benefits:

Color	Silver Guidance for specification option: Brushed stainless steel. White Guidance for specification option: Powder-coated. Black Guidance for specification option: Powder-coated; AirBOX V2 only.
Finish	Powder-coated Brushed
Shape	Rectangle
Length	152 mm Manufacturer guidance Depth.
Width	260 mm 180 mm 173 mm
Height	180 mm 260 mm 256 mm
Warranty description	Two year Guidance for specification option: First year parts and labour.

Uniclass	Pr_40_70_62_37 Hand dryersPrimary
CAWS	N13/64 Hand dryers N13/472 Hand dryers

Form	High-velocity air. Guidance for specification option: Warm air speed output: 60 m/s. Drying time: 10–15 seconds.
Operation	Automatic. Guidance for specification option: Sensor range: 150–200 mm.
Timer	Fixed.
Electrical supply	-
Power rating	1.35 kW. Guidance for specification option: Motor type: 500 W, brush type, 25 000 rpm. Heater element: 650–750 W.
Rated operational voltage (Ue)	220–240 V a.c.
Frequency	50/ 60 Hz.
Body	-
Material	Manufacturer's standard. Guidance for specification option: Weight: 3 kg.
Finish	Manufacturer's standard. Guidance for specification option: See Colour for details.
Colour	Stainless steel. Guidance for specification option: Brushed. White. Guidance for specification option: Powder-coated.
Ingress protection (minimum)	IP13. Guidance for specification option: Isolation: Class 1.
Dimensions	180 x 260 x 152 mm. Guidance for specification option: Height x width x depth.
Noise level at 1 m (maximum)	72 dB(A). Guidance for specification option: Adjustable; consult manufacturer for details.
Features	Hands only.
