Description

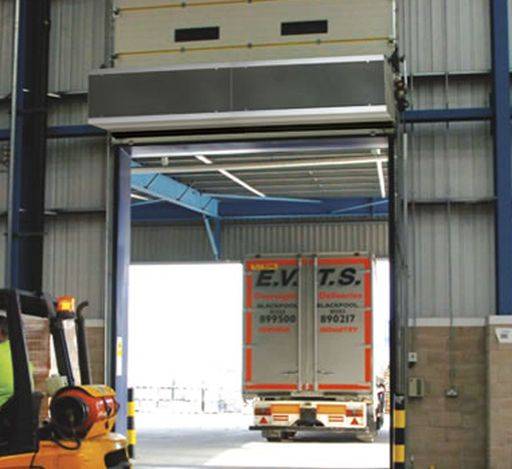

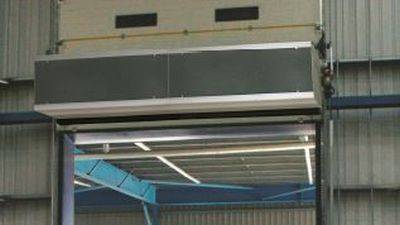

A range of industrial electric air curtains.

Features and benefits:

  • Super high power air stream.
  • Compatible with external controls.
  • Robust construction.
  • Multiple units operated as one system.
  • Auto electronic control as standard.
  • BMS/ BEMS connections.

Supplied with a two year warranty.

General information
Size

1080x550x725mm

Uniclass 2015
Air curtains (Pr_70_60_36_02)Primary
Specification data - Air curtains
Product Reference

IAB

Type

IAB10A

Ambient. Size: 1100 x 700 x 600 mm. Air volume: 4500 m³/h (maximum). Noise level: ≥ 70 dB (A).

IAB10E

Size: 1100 x 700 x 600 mm. Air volume: 4500 m³/h (maximum). 24 kW heat output. Noise level: ≥ 70 dB (A).

IAB10W

LPHW. Size: 1100 x 700 x 600 mm. Air volume: 4500 m³/h (maximum). 27 kW heat output. Noise level: ≥ 70 dB (A).

IAB10W Low Temp

LPHW_LT. Size: 1100 x 700 x 600 mm. Air volume: 4500 m³/h (maximum). 30 kW heat output. Noise level: ≥ 70 dB (A).

IAB15A

Ambient. Size: 1557 x 360 x 390 mm. Air volume: 6900 m³/h (maximum). Noise level: ≥ 73 dB (A).

IAB15E

Size: 1557 x 360 x 390 mm. Air volume: 6900 m³/h (maximum). 36 kW heat output. Noise level: ≥ 73 dB (A).

IAB15W

LPHW. Size: 1557 x 360 x 390 mm. Air volume: 6900 m³/h (maximum). 41 kW heat output. Noise level: ≥ 73 dB (A).

IAB15W Low Temp

LPHW_LT. Size: 1557 x 360 x 390 mm. Air volume: 6900 m³/h (maximum). 48 kW heat output. Noise level: ≥ 73 dB (A).

Standard product features

Technical characteristics:

  • Airstream width: IAB10: 1 m or IAB15: 1.5 m.
  • Mounting height/ air throw (maximum): 6 m.
  • Air volume: 18 m/s.
  • Temperature output, low/ high [Δ T]: 12–15/ 14–20°C, model dependant.
  • Blowers: Two centrifugal double inlet blowers. IAB15 has three centrifugal blowers.
  • Voltage: 220–240 V ~ 1PN, except IAB10E and 15E which are 400 V ~ 3PN.
  • Supply rating (Amps per phase): Varies depending on model, consult technical literature for details.
  • Safety: Motor current protection (MCB), motor thermal protection (auto reset cut-outs), element thermal protection and manual reset cut-out. (Model dependant).
  • Finish: RAL 7035 with RAL 7037 inset panels.
  • Approvals: CE, EN 60335-1,-2–30.
  • Ingress protection: IPX0.

- IAB10–15W only:

  • Water coil: Designed for 82/ 71°C flow and return temperatures.
  • Water flow rate: 0.74 or 1.15 L/s, model dependant.
  • Pressure drop: 11 or 16 kPa, model dependant.

- IAB10–15W Low Temp only:

  • Water coil: Designed for 45/ 35°C flow and return temperatures.
  • Water flow rate: 0.74 or 1.15 L/s, model dependant.
  • Pressure drop: 11 or 16 kPa, model dependant.

Control:

- Type:

Hard wired double gang sized control panel for recessed or surface mounting.

- System:

Electronic low voltage. Supplied with wall controls connected via CAT5 patch cables with RJ45 terminations (data signals only). Master/ slave (daisy-chain) connection for single control over a maximum of ten units as one.

- Functions:

Twin fan speeds, twin heat settings, fan run-on circuit (3 minutes), BMS/ BEMS links, door sensor connections, thermostat connections, built-in tamperproof thermostat with control wheel. Auxiliary input for interlocks.

- Type:

Hard wired double gang sized control panel for recessed or surface mounting.

Grille size (w x h, open area):

- Outlet:

  • IAB10: 1000 x 75 mm.
  • IAB15: 1500 x 75 mm.

- Inlet:

  • IAB10: 1000 x 500 mm.
  • IAB15: 1500 x 500 mm.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2015 1 1.3
IFC
IFC2X3 1 1.3
IFC
IFC2X3 1 1.3
Download now from NBS National BIM Library
