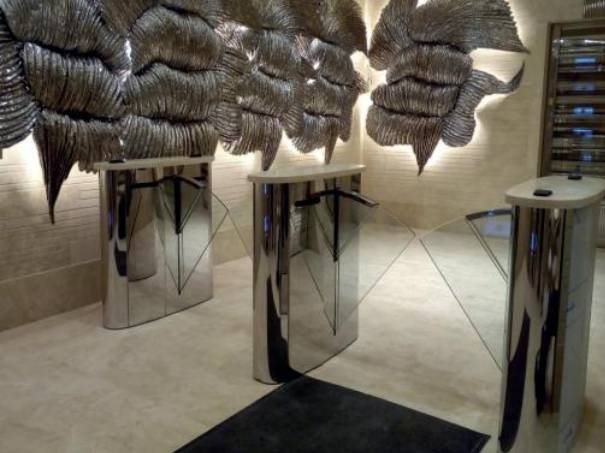

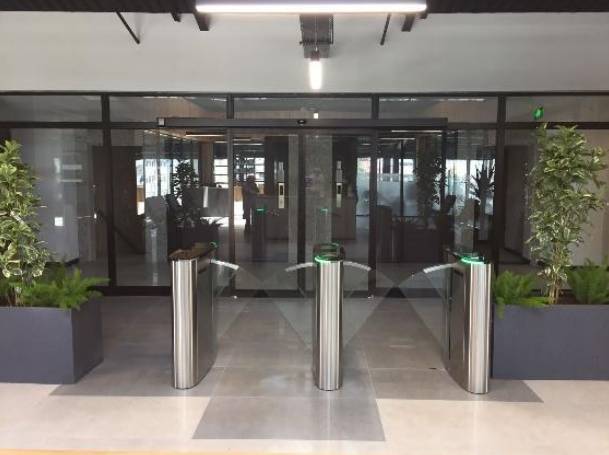

Air Blade Turnstiles - Glass Leaf Speedgates
Verified by manufacturer 6 days ago
Glass leaf speedgate turnstiles providing high security coupled with a very visible deterrent and can be installed in a variety of different applications in use for attended or unattended sites.
Application
- High security access control/ prevention coupled with a very visible deterrent.
- Can be installed in a variety of different applications in use for attended or unattended sites.
Description
Glass leaf speedgate turnstiles providing high security coupled with a very visible deterrent and can be installed in a variety of different applications in use for attended or unattended sites.
Features and benefits:
- Electronically controlled rapid wing movement for quick and smooth bi-directional passages.
- Internal dip switch selectable free passage by photocell detection, restricted access, controlled access on both or single direction modes are built in features.
- Wide range of options and accessories.
General information
Color | Silver Clear Grey Black Other |
Finish | Smooth Satin |
Material | Stainless steel Glass Stone Other |
Shape | Elliptical |
Length | 1000 mm |
Width | Bespoke |
Height | 1030 mm |
Uniclass | |
CAWS | L20/490 Automatic doors L20/60 Doors |
SKU Code | EAUKTSG100 |
Specification data - Half-height access control gates
Classification data | |
Properties | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Configuration | One-lane. Guidance for specification option: Consists of two single-wing units. Two-lane. Guidance for specification option: Consists of two single-wing units plus one double-wing unit. Three-lane. Guidance for specification option: Consists of two single-wing units plus two double-wing units. Other. Guidance for specification option: Insert requirements. |
Housing | |
Type | Elliptical units with retractable glass wings. |
Material and finish | 304 grade stain-finish stainless steel with tempered glass top. Guidance for specification option: Standard. 316 grade stain-finish stainless steel with tempered glass top. 304 grade stain-finish stainless steel with patterned stone top. Guidance for specification option: Top is natural granite stone with Star Galaxy Black pattern. 316 grade stain-finish stainless steel with patterned stone top. Guidance for specification option: Top is natural granite stone with Star Galaxy Black pattern. Other. Guidance for specification option: Other materials and patterns available; consult manufacturer for details and insert requirements. |
Colour | Self-coloured. |
Panel | |
Type | Wings. |
Rotation | Sliding. |
Speed of opening | 0.5 seconds. Guidance for specification option: Opening/ closing time. |
Material and finish | Tempered glass. |
Colour | Clear. |
Size | |
Clear opening width (minimum) | 570 mm. Guidance for specification option: Per lane. |
Overall width | 1170 mm (single lane); add 870 mm for each additional lane. Guidance for specification option: Note: clearance required between adjoining walls/ barrier, consult manufacturer's literature for details. |
Length | 1000 mm. |
Height | 1030 mm. |
Fixing | Guidance for specification option: Insert requirements to suit substrate. Floor mounting plate available; see Accessories. |
Control unit | Manufacturer's standard. Guidance for specification option: All inputs are opto-coupler protected. Compatible with all access control systems that provide dry contact or grounding outputs. Manufacturer guidanceSee Accessories for additional control module options. |
Power supply | 110/ 220 V a.c. 50/ 60 Hz; 24 V d.c. Manufacturer guidanceWhere backup options are required, specify under Accessories. |
Communications | Manufacturer's standard. Interface unit for PC: RS485, RS232 and LAN. |
Accessories | Interface unit for PC: RS485, RS232 and LAN. Guidance for specification option: Optional control module. Switch controls. Intercom access. Coin slot/ intelligent coin system and coin box. Swipe card readers/ keyfobs etc. Card reader pole. Traffic light/ management integration. Photocell/ opening sensors. UPS or other power backup. Fail safe/ fail secure. Remote control unit. Counter. Audio-messaging system. Alarm sensor. Floor mounting plate. Separator. |
Capacity | Approx. 30–60 passages per minute. |
Power consumption | Single unit at standby: ~10 W; during operation: ~39 W. Centre unit at standby: ~20 W; during operation: ~78 W. |
Operating temperature | -20 to + 68°C. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Stainless steel Glass Stone Other |
Literature
Air Blade Turnstiles - Data Sheet
