Ainsley Bus Shelter

Verified by manufacturer 4 months ago

Able Canopies Ltd Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • BS EN 1090-1

    BS EN 1090-1

    Certificate type

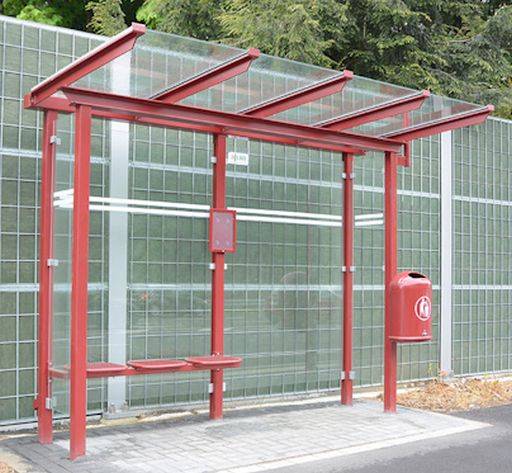

A contemporary shelter with mono pitch design made from a steel frame and covered with clear toughened glass or polycarbonate roof panels.

Jump to:
BIM object icon
0800 389 9072 Website

Application

Suitable for weather protection, keeping individuals dry whilst waiting outside. Can also be used as a smoking shelter, trolley shelter or entrance canopy.

Description

A stylish bus shelter enclosed with a choice of 5 mm solid polycarbonate, 16 mm structured polycarbonate or 8 mm toughened glass that is secured in place with glass locks. A standard shelter measures 2.1 m x 2.3 m.


Weather resistance:

The steel frame is galvanized as standard for corrosion protection and weather resistance.

General information

Color

Any RAL colour

Clear

Opal or clear polycarbonate

Beige

Black

Blue

Brown

Show more

Finish

Galvanized

Powder-coated

Material

Glass

8mm toughened glass

Steel

Available:

Galvanised only

Galvanised and powder coated to any RAL

Polycarbonate

5mm solid polycarbonate

16mm structured polycarbonate

Available in opal or clear

Shape

Rectangle

Length

Bespoke

Insert requirements; unlimited length.

Width

Bespoke

Insert requirements; maximum depth of up to 5 m.

Height

Bespoke

WarrantyDescription

25 year

Steel framework - Up to a 25 year life expectancy depending on the chosen finish

Uniclass

Pr_20_65_78_77 Semi-closed sheltersPrimary

CAWS

B91/420 Waiting shelter

B91/425 Youth shelter

B91/385 Shelter

Product range

Shelters

Specification data - Semi-closed shelters

Shelter description

Bus shelter.

Dimensions

-

Plan size

[-].

Insert requirements; maximum depth of up to 5 m, unlimited length.

Frame

-

Material

Steel.

Finish

Galvanized.

Powder coated.

Colour

[-].

Insert requirement, consult manufacturer's literature for information.

Cladding

-

Material

5 mm solid polycarbonate side panels.

8 mm toughened glass side panels.

Secured in place with glass locks.

16 mm structured polycarbonate side panels.

Roof covering

5 mm solid polycarbonate.

8 mm toughened glass.

Secured in place with glass locks.

16 mm structured polycarbonate.

Rainwater drainage

Guttering included as standard.

Accessories

None.

Benches.

Cycle racks.

Front glass or polycarbonate panels.

Product Reference

Ainsley Bus Shelter

Environmental information

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

50%

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit
-

4

IFC
-

4

Third party certifications

Health & Safety Accreditation

Health & Safety Accreditation

ACCLAIM

Constructionline

Constructionline

Constructionline Gold

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO14001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO45001

BS EN 1090-1

BS EN 1090-1

UK/CA Marking

Literature

Able Canopies Product Portfolio

Able Canopies Product Portfolio
