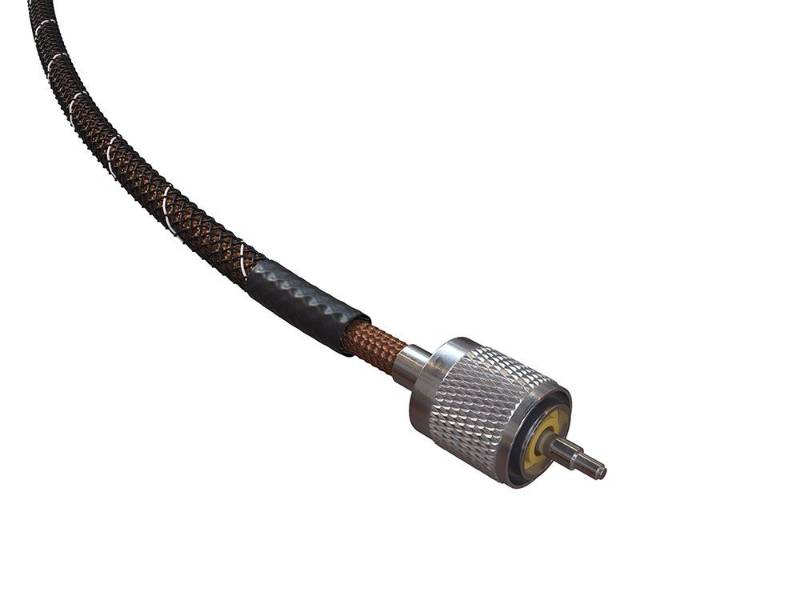

AGW-Gold Sensing Cable

Application

Typical applications includes secondary contained pipes, overhead chilled water pipe in data centres, around subfloors of clean room facilities, and high temperature steam pipe systems.

Description

A highly versatile sensing cable that can detect water, fuel and highly corrosive chemicals.


Features and benefits:

  • Durable design.
  • Chemical and corrosion resistant.
  • Dust and contaminant resistant.
  • Abrasion resistant.
  • Quick dry design.
  • Has passed UL 910 for Plenum Rating.
  • Tested in accordance with exposure procedures in ASTM D-543.
  • Can be flushed and dried in place and will not require replacement after a leak event of any volatile fluid.
  • Breaking strength of at least 45 kg (100 lb).


Construction:

  • Insulated centre conductor.
  • PFA coating on centre conductor.
  • Polymer helix spacer.
  • Polymer-coated braid wire.
  • Halar® overbraid.


General information

Color

Black/ copper/ silver

Features

Highly versatile sensing cable that can detect water, fuel and highly corrosive chemicals; Durable design; Chemical and corrosion resistant; Dust and contaminant resistant; Abrasion resistant; Quick dry design.

Finish

Polymer/ Halar®.

Material

Fluoropolymer and polymer-coated wire construction with no exposed metal parts.

Shape

Cable

Size

8 mm outer diameter

WarrantyDescription

Consult manufacturer

Uniclass 2015

Pr_75_50_48_15 Chemical-sensing cablesPrimary
Pr_75_50_48_96 Water-sensing cables
Pr_75_50_48_31 Fuel-sensing cables

Specification data - Chemical-sensing cables Enhanced data

Liquid to be detected

Acids, bases and solvents

Water

Fuel (hydrocarbons)

Conductive and non-conductive liquids

Response time (maximum)

Manufacturer's standard.

Chemical resistance

Consult manufacturer.

Resettability

Required.

Exposure limits

Up to 205°C.

Cable length

To suit the application.

Leak location accuracy

Consult manufacturer.

Product Reference

AGW-Gold Sensing Cable
