Verified by manufacturer 23 hours ago
Medium Grade PSA
VOC Content test Certificate
Certificate type
Fully accessible wood core raised access floor system for data centres, comms rooms, and server rooms. High load capability, sustainable design, and wide finish options.
The AFD Indigo Wood Core Range is specifically designed for technical and mission-critical environments where load-bearing strength, service accessibility, and fire safety are key.
Typical Applications
By combining structural reliability, sustainability, and a choice of finishes, Indigo Wood Core provides specifiers with a flexible raised access flooring solution that balances performance, fire compliance, and environmental responsibility
The AFD Indigo Wood Core Range is a robust, fully accessible raised access floor system designed to meet the demands of technical environments such as data centres, server rooms, and communication rooms.

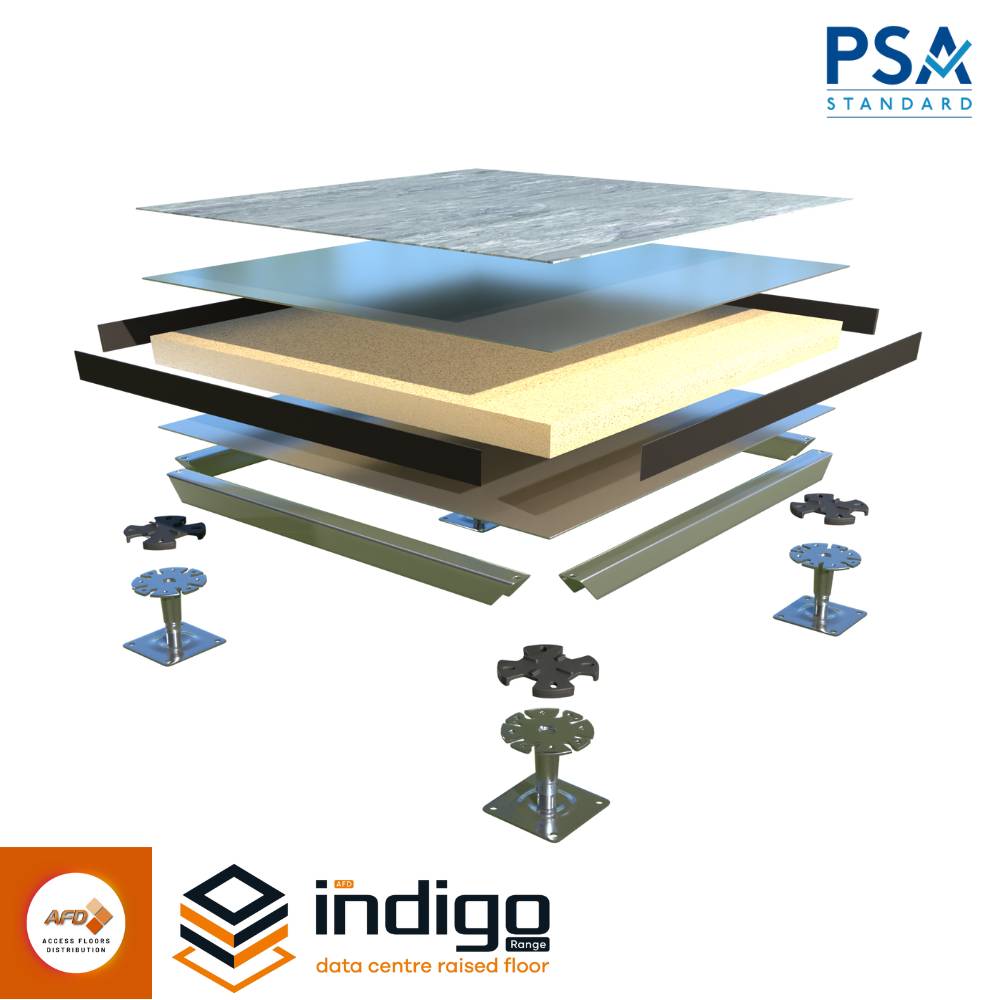

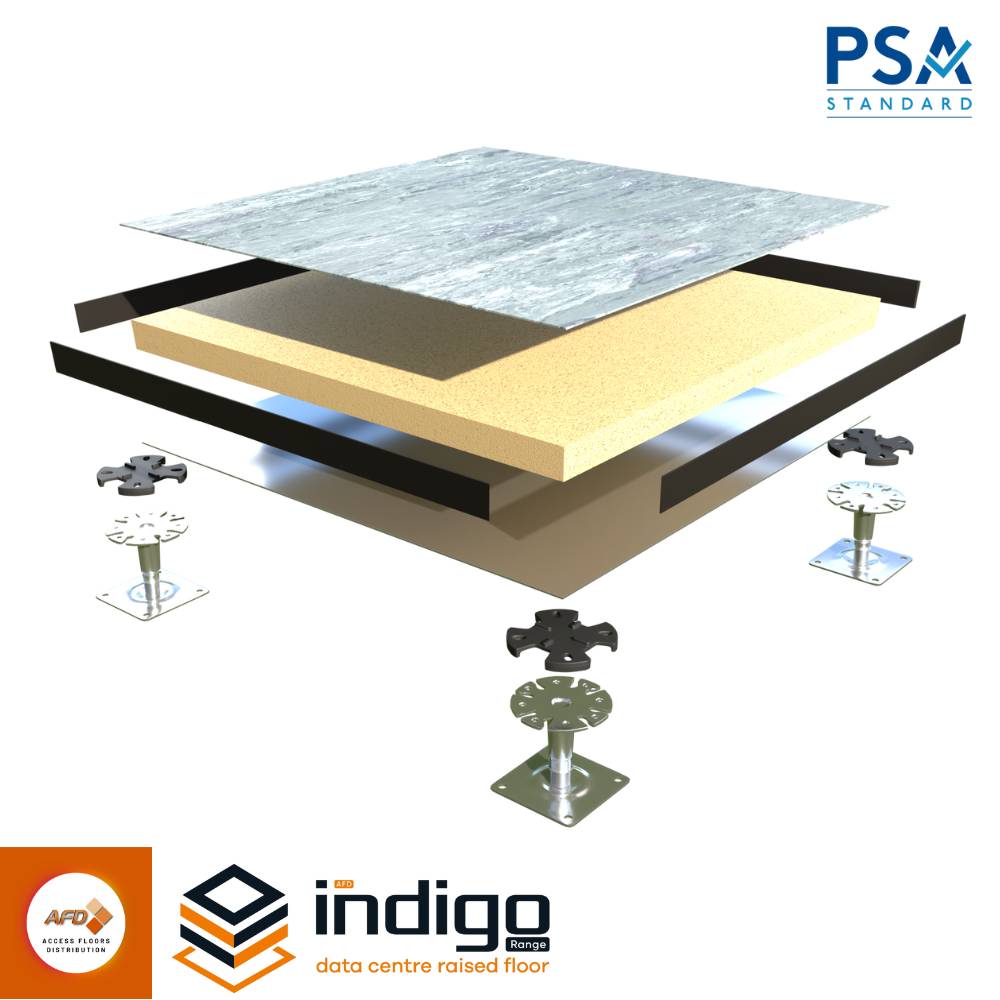

Panels are manufactured using highly recycled, FSC-certified wood core, with optional steel top and bottom sheets to achieve enhanced durability and performance. The system is supplied with an ABS edge band trim for precision and protection, and can be finished with a wide selection of factory-bonded surface options.
Compliance & Standards
Indigo Wood Core raised access floor systems are independently tested and fully compliant with both:
This ensures suitability for a wide range of applications, including heavy load environments such as data halls, where consistent structural performance and service accessibility are essential.
Available Finishes
Features & Benefits
Color | Grey Other |
Material | Rubber Vinyl High pressure laminate (HPL) Timber Steel |
Shape | Square |
Length | 600 mm |
Width | 600 mm |
Height | 40 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Proprietary raised access floor |
Classification data | |
Support structure type | Galvanized steel AFD PSA pedestal 26–1525 mm. Heavy duty steel pedestal. Guidance for specification option: Suitable for voids from 200–1440 mm. |
Pedestal fixings | Adhesive. |
Raised access floor surface | Anti-static vinyl. Bare (to receive carpet tile). High pressure laminate. Linoluem. Rubber. |
System accessories | None. PSA pedestal/ adheisve. Pedestal cap. Stringer at voids 600 mm+. |
Fire classification | To EN 13501-1, Bfl-s1. |
Fire resistance | To EN 13501-2, REI 60r. |
System | Medium Grade PSA System. |
Module size | 600 x 600 x 40 mm. Manufacturer guidanceNominal. *Depending on finish. |
Panel weight | 13 kg + finish. |
Core | 38 mm high density FSC certified chipboard 720 kg/m³. |
Steel | Zink whisker-free, 0.8 mm bottom steel sheet. |
Edge detail | 0.6 mm PVC/ABS band. |
Load class | To PSA MOB PF/2, medium grade. |
Load | Working point load: 3 kN. Ultimate point load: 9 kN. Uniform distributed load: 8 kN/m². |
Deflection | No more than 2.4 mm. |
Contains Red List materials | No |
Country of product manufacture | Belgium |
Material | Rubber Vinyl High pressure laminate (HPL) Timber Steel Carpet Linoleum |
Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit 2.43 (kg CO₂ eq/kg) : Declared unit 2.43 : Lower emissions | |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 81 % |
Expected Life | 25 year |
