Aero Powder Coat Panel Cubicle
Verified by manufacturer 5 months ago
HPL
HPL

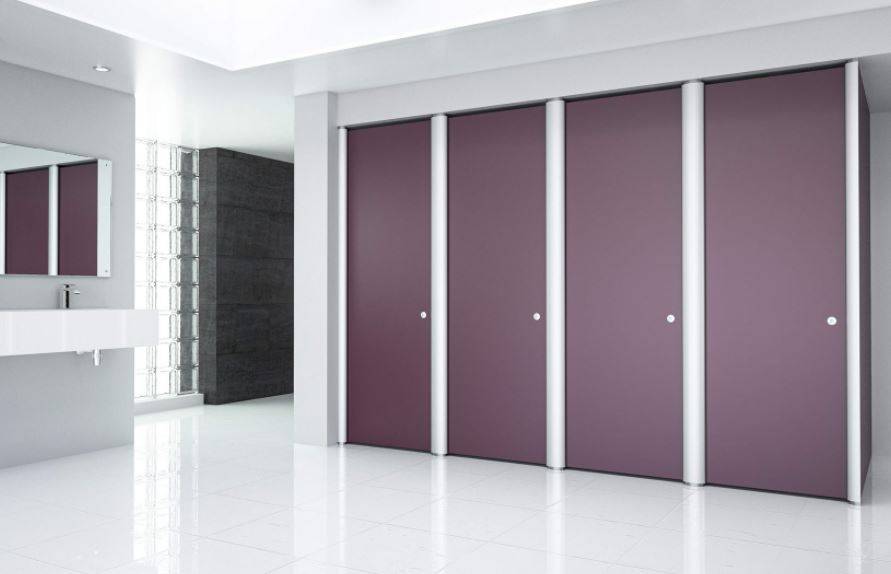

A stylish and strong metal-framed cubicle with curved aluminium floor-mounted pilasters.
Application
Modern, stylish washroom environments.
MFC/Veneer: Recommended for dry areas.
HPL: medium-to-heavy use in dry areas and provides a versatile solution for all sectors.
SGL: Heavy use with unrivalled strength and durability, specifically for wet areas.
Description
A stylish powder coated cubicle with smooth, curved aluminium pilasters.
Features and benefits:
- Stylish and durable, the frame features smooth, curved aluminium pilasters mounted into moulded shoes and a continuous headrail.
- Available with low floor clearance to doors.
- Panels are manufactured to specific site dimensions.
- Light Grey lock body and faceplate, also available in stainless steel.
Components:
- High Pressure Laminate (HPL) and Melamine Faced Chipboard (MFC), supplied square edged with matching 1 mm PVC lipping.
- Solid grade laminate panels (SGL), supplied with polished black radiused edges.
- Frame comprising headrail, pilaster shoe, hinges and channel.
General information
Color | Other Guidance for specification option: Panels: 34 laminate colour options, 3 digital prints and a selection of wood veneers; consult manufacturer literature. |
Finish | Powder-coated Laminated |
Material | Aluminium MFC Laminate Wood |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | 2020 mm Guidance for specification option: Standard height (includes 100 mm floor clearance). Bespoke Guidance for specification option: Floor to ceiling. |
Uniclass | |
CAWS | K32/10 Panel cubicles K32/112 Fully framed panel cubicles |
Product range |
Specification data - Fully-framed panel cubicle systems
Panels | HPL facings, 630 kg/m³ grade chipboard backing, square edged.Guidance for specification option:
|
Panel supports | Smooth curved aluminium frame with pilasters, floor-mounted. |
Doors | HPL facings, 630 kg/m³ grade chipboard backing, square edged.Guidance for specification option:
|
Lippings | 1 mm PVC lipping.Guidance for specification option: Supplied. |
Hardware | Headrail, pilaster shoe, hinges and channel. |
System accessories | Not required.Wood veneer doors.Soap dispensers.Paper towel dispensers.Toilet roll holders.Hand dryers.Coat hooks.Door handles.Manufacturer guidanceSelection available, consult manufacturer literature. |
Height (Refer to manufacturer's guidance) | Standard: 1940 mm / Maximum: 2810 mm. Guidance for specification option: 20 mm floor clearance. Insert requirement. Standard: 2020 mm / Maximum: 2890 mm. Guidance for specification option: 100 mm floor clearance. Insert requirement. As drawing/ schedule/ bespoke/ floor to ceiling. Guidance for specification option: Floor to ceiling and bespoke heights available, insert requirement. Manufacturer guidance
|
Overall thickness | 19 mm (nominal). |
Colours: | Laminate colours. Guidance for specification option: Panels: 34 laminate colour options, 3 digital prints and a selection of wood veneers; consult manufacturer literature and insert requirement. |
Pilasters & Headrail | Powder-coated aluminium. |
Faceplate | Stainless Steel. Light Grey. Manufacturer guidanceColours. |
Hinges & Channel | Powder-coated aluminium. |
Pilaster Foot | 20 mm Powder-Coated Aluminium. Guidance for specification option: For bespoke and floor to ceiling height cubicles. 100 mm Powder-Coated Aluminium. Guidance for specification option: For standard height cubicles. |
Clearance | Ceiling: 20 mm. Guidance for specification option: For bespoke height floor to ceiling cubicles. Ceiling: Minimum 150 mm. Guidance for specification option: For standard height cubicles. |
