Adfil SF 86 - Hook End Steel Fibre
Verified by manufacturer 3 months ago
BBA Agrément Certificate
Certificate type
Steel fibre concrete reinforcement.
Application
- Ground-supported reinforced concrete slabs.
- Pile-supported concrete slabs.
- Ground beams spanning poor ground and suspected voids.
- Precast segmental tunnel linings.
- Precast concrete elements.
- SCI assessed for use in composite metal deck systems.
- NHBC accepted for use in beam & block system structural toppings.
For use in concrete.
Description

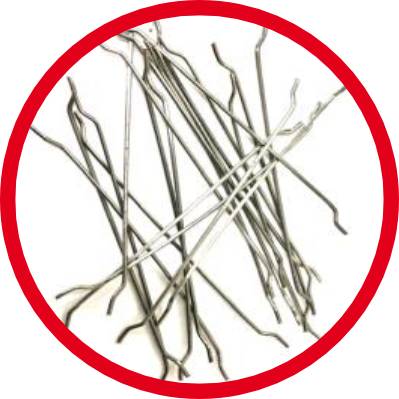

ADFIL SF 86 is a cold drawn single hook end steel macro fibre used for the reinforcement of concrete.
Features and benefits:
- Provides post-crack residual flexural strength in both ground bearing and unsupported concrete slabs.
- A proven alternative to structural steel reinforcement.
- High tensile strength.
- Relatively high fibre count/kg.
- Glued to reduce the risk of fibre balling during the batching process.
- Can be pumped with the correct concrete mix design.
General information
Color | Silver |
Material | Steel |
Shape | Other |
Length | 60 mm |
Width | 0.75 mm |
Uniclass | |
CAWS | E11/435 Proprietary admixture E10/418 Proprietary admixture |
Specification data - Carbon steel fibres
Standard | To EN 14889-1. |
Material group | II. |
Fibre properties | |
Tensile strength (Rm) | 1225 MPa. |
Modulus of elasticity | 200 000 MPa. |
Size | |
Length | 60 mm. |
Aspect ratio | 80. |
Shape | Straight with hooked ends. |
Density | 7800 kg/m³. |
Sustainability data
Material | Steel |
Third party certifications
BBA Agrément Certificate
Adfil SF 86 BBA Certificate - Beam and Block Floors
Literature
Adfil SF 86 TDS
Adfil SF 86 DOP
