ActiStop - Waterstop
Verified by manufacturer 2 days ago
A hydrophilic waterstop strip.
Application
Suitable for:
- Construction joints in in-situ reinforced concrete structures.
- New to existing concrete construction.
- Pipe penetrations – wall and floor.
- Irregular surfaces.
- Box out penetrations and remedial sections.
- Can be applied to concrete, steel or plastic.
Description
ActiStop is a high-swelling hydrophilic strip waterstop and is a formulated blend of sodium bentonite and butyl rubber. ActiStop is an active waterstop which reacts with water to seal construction joints within concrete. The seal resists hydrostatic pressure, stopping the passage of water through the joint. ActiStop is designed to replace passive PVC/ rubber waterbars, without the need for pre-formed intersections, split forming or seam welding.
Features and benefits:
- Non-dimensional swell allows complete injection into surrounding voids.
- Conformable – can be applied to a range of irregular substrates.
- Resists in excess of 9 bar (90 m) hydrostatic pressure.
- It swells many times more than its dry volume to form an impenetrable gel.
- Simple butt-jointing on site application.
- Reproducible swell after wet-dry cycle.
- Unaffected by freeze/ thaw cycling.
General information
Color | Brown |
Material | Butyl |
Shape | Other |
Length | 5000 mm |
Width | 25 mm |
Height | 20 mm |
Uniclass | |
CAWS | E40/320 Hydrophilic waterstops |
Specification data - Rubber hydrophilic waterstops
Classification data | |
Cross section | 25 x 20 mm. |
Water pressure resistance | 9 Bar. |
Accessories | Not required. ActiMesh. Guidance for specification option: Metal mesh cage, supplied with washered hardened steel nails, for mechanically fixing ActiStop to the concrete application surface. ActiFix. Guidance for specification option: Moisture cure adhesive suitable for damp surfaces. |
Sustainability data
Material | Butyl |
Literature

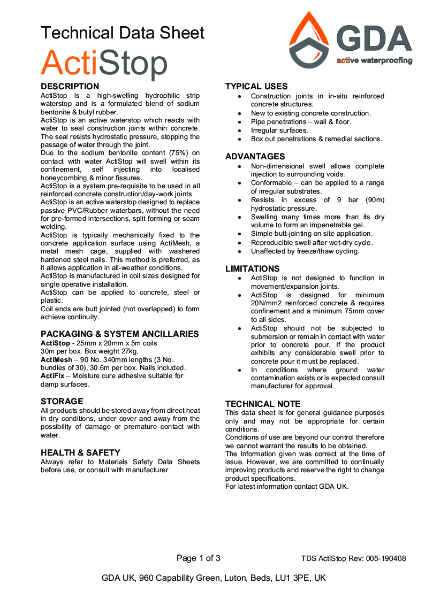

ActiStop Technical Data Sheet
