Action Cinema Chair

Application

Auditoriums, theatres, cinemas or any audience space. The Action seat can be fixed on flat or sloping floors, in straight or curved rows, and can be configured as either a fixed or folding seat.

Description

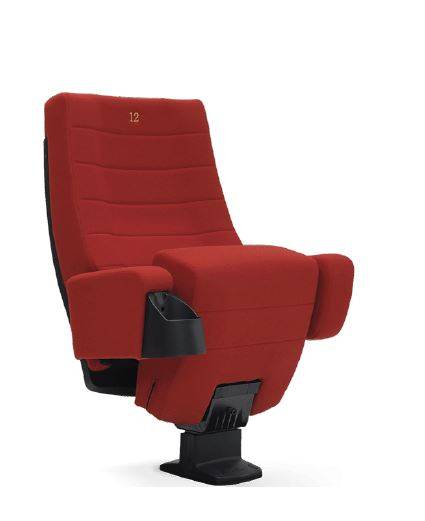

The Action seat is an armchair mounted on our characteristic central foot which supports the backrest by means of adjustable forks. Incorporating a central articulation system (which is also adjustable) this fixes the seat and assists a smooth folding movement. Mechanisms are equipped with protection pieces made of POM and which prevent noise and wear.


Action's seat and backrest elements are designed with curved shapes and ergonomic build, for correct lumbar and hamstring support. The shape of the armrest and backrest also allow for the possibility of choosing between fixed or folding seats.


The Action armchair can be assembled with widths between 550 and 600 mm, which places its backrest at a very comfortable 104 cm in its standard version. the chairs can be installed on flat, sloping floors in straight rows or curved rows, in which it can assume closed curvature radii.


Features and benefits:


  • Armchair with shared armrest or double version (without intermediate armrest).
  • Foot for front tier fixing.
  • Armrests with different shapes and widths of 8, 10 and 12 cm.
  • Different types of cup holders.
  • Protective backrest cover made of polypropylene.
  • Seat number embroidered on the seat/backrest.
  • Different types of row numbering.
  • Removable seat options.
  • Decorative stitching and seams.
  • Polypropylene footrest covers.
  • Frame modules for mobile seats, with or without wheels.



General information

Color

Consult manufacturer for further details

-

Material

Fabric

Width

530 mm

Height

1004 mm

Uniclass

Pr_40_30_29_72 Retractable seatsPrimary

CAWS

N10/172 Retractable/ demountable seating system

N10/25 Chairs

Specification data - Retractable seats Enhanced data

Form

Floor-fixed.

Seats and backs

-

Material

Fabric.

Depth

Seat closed: 600 mm. Seat open: 770 mm.

Backrest height

1004 mm.

Armrest

Armrests with different shapes and widths of 8, 10 and

12 cm. Consult manufacturer for details and insert requirements.

-
