ACS Apollo ALR30W060 Masonry Reinforcement
ACS Apollo ALR30W060 Masonry Reinforcement
Masonry bed-joint reinforcement used to strengthen masonry walls and partitions.
Application
Suitable for use as bed-joint reinforcement to enhance the structural integrity of walls and partitions.
Description
The ACS Apollo Masonry Reinforcement, also known as Ladder Reinforcement or Bed-Joint Reinforcement, is manufactured from stainless steel and is used to strengthen masonry walls and partitions, helping to reduce cracking and provide general structural support.

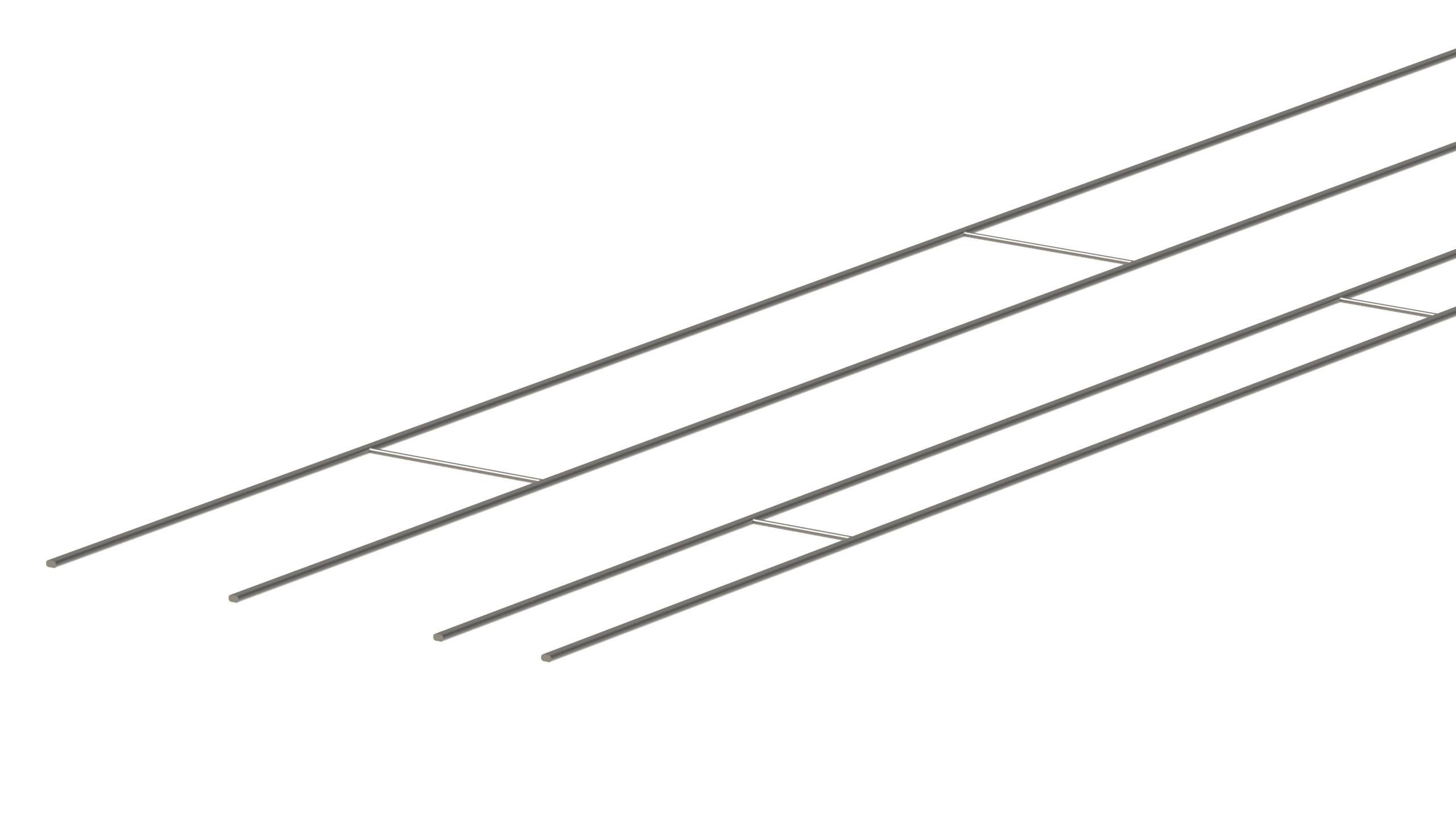

The product is a standard-shaped wire suitable for various combinations of brick or block widths by utilising differing widths of ladder
Features and benefits:
- Effectively reinforces masonry walls, providing robust structural support.
- Minimizes the risk of cracks within walls and structures.
- Available in a standard length of 2.7 metres and a range of wire diameters to accommodate various brick and block widths.
- Made from stainless steel for enhanced corrosion resistance.
- Offered in four wire diameters: 3.0 mm, 3.5 mm, 4.0 mm and 5.0 mm.
- The 4.0 mm and 5.0 mm variants are manufactured with a flattened wire profile for ease of integration into mortar joints.
General information
Color | Silver |
Finish | Natural |
Material | Stainless steel |
Shape | Other |
Length | 2700 mm |
Width | 60 mm 100 mm 150 mm 175 mm |
Height | 3 mm 3.5 mm 4 mm 5 mm |
Uniclass | |
CAWS | F30/290 Proprietary special fixings C41/285 Bed joint reinforcement to masonry |
SKU Code | ALR30W060 |
Specification data - Stainless steel bed joint reinforcement
Classification data | |
Standard | To BS EN 845-3. |
Configuration of bed joint reinforcement | Welded wire ladder. |
Dimensions | |
Wire size | 3 mm. Guidance for specification option: Tolerance: +/-0.1 mm. |
Ladder or truss width (overall) | 60 mm. Guidance for specification option: Tolerance: +/-5 mm. |
Corrosion protection | To BS EN 845-3, material coating reference R3. |
Fire performance | |
Reaction to fire | Class A1. Guidance for specification option: Non-combustible. |
Minimum wall thickness | 102 mm brick/ 100 mm block. |
Length | 2700 mm. Guidance for specification option: Tolerance: +/-1.5%. |
Yield strength | 500 N/mm². Guidance for specification option: Characteristic yield strength of longitudinal and cross wire. |
Bond strength | 5990 N. |
Shear load (maximum) | 3426 N. Guidance for specification option: Shear load capacity of welds. |
Mortar designation | Minimum: General purpose ≥ M4. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Stainless steel |
Recyclability | Fully recyclable |
Literature
Literature type
UKCA DoP 053 Apollo ALR35W100
UKCA DoP 051 Apollo ALR50W060
UKCA DoP 048 Apollo ALR30W060
UKCA DoP 052 Apollo ALR30W100
UKCA DoP 060 Apollo ALR30W175
UKCA DoP 054 Apollo ALR40W100
UKCA DoP 055 Apollo ALR50W100
UKCA DoP 050 Apollo ALR40W060
UKCA DoP 049 Apollo ALR35W060
UKCA DoP 056 Apollo ALR30W150
UKCA DoP 061 Apollo ALR35W175
UKCA DoP 059 Apollo ALR50W150
UKCA DoP 063 Apollo ALR50W175
UKCA DoP 057 Apollo ALR35W150
UKCA DoP 062 Apollo ALR40W175
UKCA DoP 058 Apollo ALR40W150
ACS Apollo Masonry Reinforcement Data Sheet
