ACS AHR Adjustable Head Restraint
Verified by manufacturer 11 days ago
Adjustable head restraint (AHR).
Application
Designed to provide lateral restraint at the top of an internal block wall or the inner leaf of a cavity wall.
Description
The ACS Adjustable Hear Restraint (AHR) is designed to provide lateral restraint at the top of an internal block wall or the inner leaf of a cavity wall. The ‘outer’ section of the AHR is manufactured from a rectangular hollow tube to create and maintain a void in the vertical mortar joint. This allows free movement of the ‘inner section’. A movement joint of 50 mm (maximum) between the soffit / bottom of steel and the top of the inner section will be sufficient to allow the normal movement expected in service as a result of live loading, thermal expansion and contraction and any shrinkage that may occur following construction.
Features and benefits:
- Shear/Movement Tie (PD 6697: 2019).
- Austenitic Stainless Steel, 1.4301 (304) grade.
- Lucideon Tested.
- Allows vertical movement.
- Provides lateral restraint.
General information
Color | Other |
Finish | Natural |
Material | Stainless steel |
Shape | Other |
Uniclass | |
CAWS | F30/251 Wall head restraint slip ties |
Specification data - Head restraint slip ties
Classification data | |
Material | Austenitic stainless steel, 1.4301 (304) grade. |
Additional requirements | |
Shear load capacity | 840–1500 N. Guidance for specification option: Masonry Unit Strength:
|
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Stainless steel |
Recyclability | Fully Recyclable |
Literature

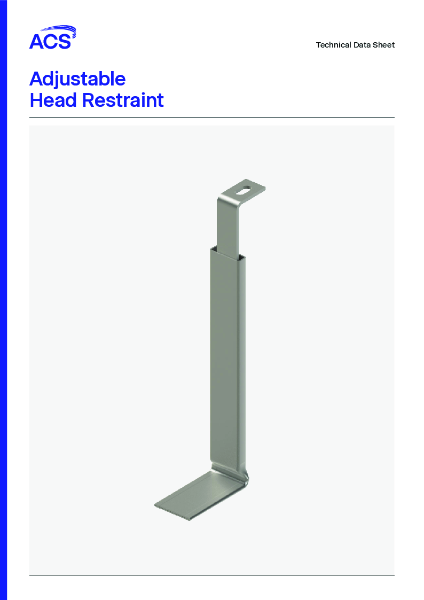

ACS AHR Data Sheet
