Acrylic Gel - Curtain Injection Waterproofing System

Verified by manufacturer 1 month ago

Koster Aquatecnic Ltd

Acrylic Gel injection system for waterproofing behind the structure whilst retaining the internal construction aesthetic. For example, in a Basement vault where the brickwork finish is to be retained.

Jump to:
+44 (0)1387 270252 Website

Application

This low viscosity, water based acrylic gel for curtain injection as well as area injection of masonry and concrete is characterized as having a very low starting viscosity. When injected under pressure into the structure, it is capable of penetrating into even the finest of pores where it can set and seal permanently.


The Environmentally friendly range of Koster Injection Gel materials can be used successfully in the following situations:

  • External/Positive Side Waterproofing of basements and below ground structures - from the Negative Side.
  • Waterproofing of underground voids.
  • Soil Stabilization and consolidation.
  • Waterproofing to bridges, tunnels and other similar structures.
  • Crack injection - to both dry and water bearing cracks.
  • Waterproofing of construction joints, injectable water bars and expansion joints.
  • Waterproofing to structures where Type A and Type C systems are not suitable.
  • Can be used to retro install a DPC or horizontal barrier.
  • European Drinking water approval.
  • Non-Toxic.

Description

Exterior basement waterproofing from inside the building: in the case of renovation, it is not always possible to expose the exterior walls through excavation. For example, where the area to be excavated is built upon, traffic concerns impede the excavation, or the economic cost of excavation is deemed prohibitive.


In this case you would first think of an internal (negative side) basement waterproofing, but in some cases, such as in historical buildings or buildings with special architectural requirements, this may not be desirable.

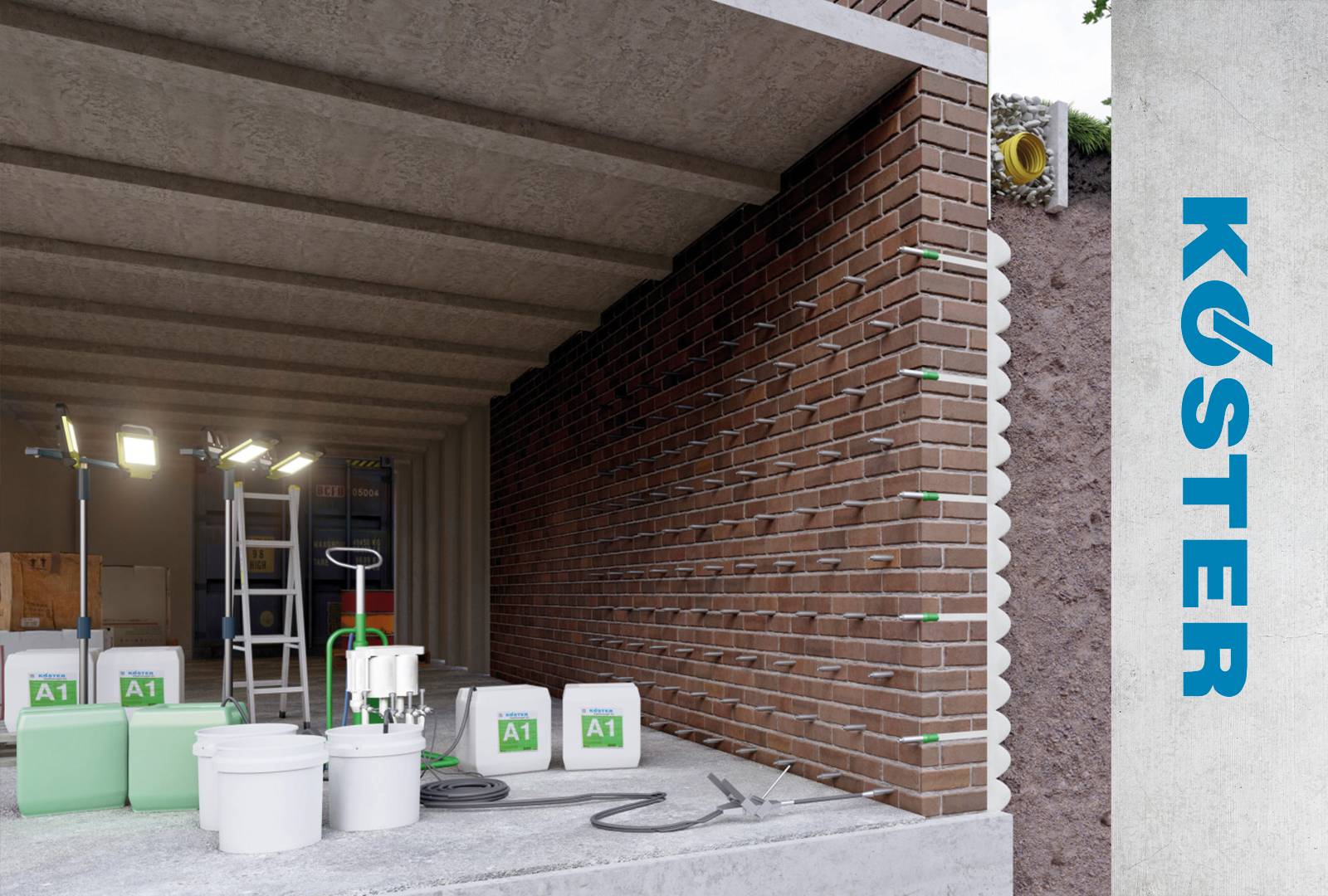

In these cases a curtain injection with Koster Acrylic Gel is possible; where the resin is injected through the wall from the inside, to the outside.


The resin reacts with the water and moisture in the ground and binds it resulting in a waterproof, elastic mass. The injection is carried out with a special pump and through patented Koster Gel Injection packers. The injection material is dispersed on the exterior face of the wall and in a short time reacts to form the waterproofing layer.


An alternative method is injecting Koster Injection Gel into the building member itself. This so-called “area injection” is possible in porous or hollow building materials. In this case the Koster Injection Gel also reacts with any water present to form a waterproof, elastic mass.


System Components:

  • Pump: Koster Acrylic Gel Pump.
  • Packer: Koster Injection Gel Packer.
  • Waterproofing layer: Koster Injection Gel G4 or Koster Injection Gel S4.


For further information or design assistance, please contact the Koster Technical team at technical@kosteruk.com.

General information

Color

Clear

Cream

Finish

Other

Material

Acrylic

Guidance for specification option:

Water activated polyurethane gel.

Elastic

Resin

Liquid

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_20_31_02_50 Masonry injection resinsPrimary

CAWS

J30/110 Cold-applied tanking

Product range

Internal Basement Waterproofing Systems
Civil Engineering Systems
External Basement Waterproofing Systems
Crack Injection Systems

Specification data - Masonry injection resins

Composition

Acrylic Gel.

Waterproofing layer

Koster Injection Gel G4 and Koster Injection Gel S4.

Guidance for specification option:

  • Solvent-free, water activated polyurethane gel.
  • Depending on the amount of water added, a highly elastic waterproof massive or respectively foam hydro gel is formed.
  • It does not promote corrosion and is designed and tested for use in drinking water environments.
  • It can be used for curtain and area injection as well as for posterior waterproofing of dilatation joints.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Acrylic

Guidance for specification option:

Water activated polyurethane gel.

Elastic

Resin

Liquid

Recyclability

No

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
