ACP Addressable Damper Control Panel
Verified by manufacturer 2 days ago
ACP50
ACP50
Addressable damper control system for control, testing, and monitoring of connected fire dampers in HVAC systems.
Application
For internal application in buildings to control, test, and monitor connected fire dampers in HVAC systems.
Ideal for life safety systems in larger or more complex applications.
Description
The ACP Series Addressable Damper Control Systems are designed for the centralised control, testing, and monitoring of connected Fire dampers in HVAC systems. They offer flexibility though programming to control basic or complex cause and effect strategies.

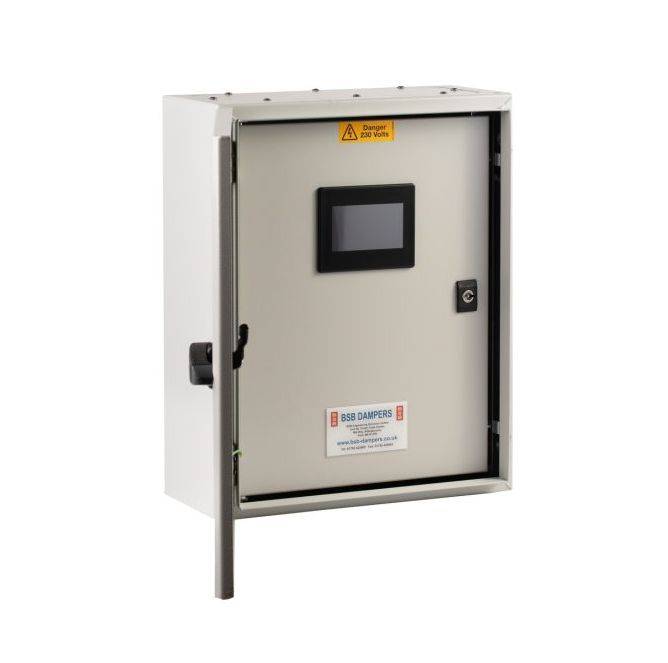

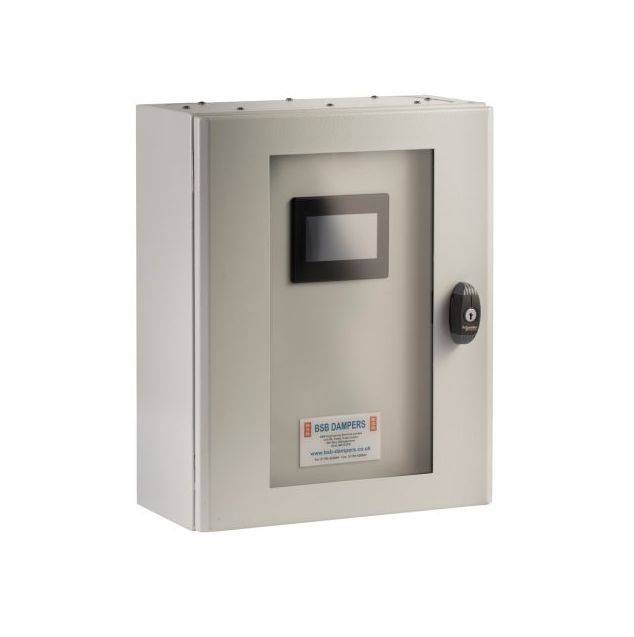

These panels are advanced software-driven systems offering control of up to 350 dampers from a single panel, featuring a 4.3” colour touch screen LCD display for clear status indication, visual and audible alarm status, and a lockable glass fronted door.
Features and benefits:
- Support one to seven networks per panel.
- Up to 50 actuators per network.
- Pre-programmed to suit individual project cause and effect, reducing on-site commissioning time.
- Programmable volt-free inputs and outputs.
- BMS compatible with Modbus and BACnet protocols.
- Event log.
- 4.3” colour touch screen LCD display as standard, with larger screen options.
- Operates within a climatic range of 0 to 70°C ambient and 80% RH non-condensing.
- Visual indication and audible alarm status.
General information
Color | Grey Guidance for specification option: RAL 7035 light grey. |
Finish | Powder-coated |
Material | Steel Glass |
Shape | Rectangle |
Length | 200 mm Manufacturer guidanceDepth. |
Width | 400 mm |
Height | 500 mm |
Uniclass | |
CAWS | U90/443 Dampers, fire/ smoke U9/340 Fire dampers |
SKU Code | 206139 |
Specification data - Mechanical services control panels
Classification data | |
Enclosure | |
Ingress protection (minimum) | IP56. |
Mechanical protection (minimum) | Manufacturer's standard. |
Material | Steel. Guidance for specification option: Primary material. Outer door is glazed. |
Finish | Powder-coated. |
Colour | Light grey (RAL 7035). |
Doors and panels | |
Form | Left hung, lockable glazed front door as standard. Guidance for specification option: Right hung available on request. |
Swing | External glazed door: 125°. Inner door: 100°. |
Hardware | Manufacturer's standard. |
Locks | Manufacturer's standard. |
Isolator | |
Rated operational voltage (Ue) | 230 V. |
Rated operational frequency | 50 Hz. |
Terminals | Manufacturer's standard. |
Cable entry | Gland plate top. |
Internal cable zones | Sufficient to allow cabling to be neatly routed and terminated. |
Interconnecting cable | Manufacturer's standard. |
Terminals | |
Mounting | Manufacturer's standard. |
Identification | |
Neutral and earth bar terminals | Manufacturer's standard. |
Cable terminations | Label with damper reference. |
Trunking | |
Standard | Manufacturer's standard. |
Material | Manufacturer's standard. |
Environmental performance requirements | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Configuration | Maximum 50 actuators, 1 network. Four programmable inputs. |
Accessories | Mimic panels. Fireman's override panels. Network extender. UPS/4 battery back up. Flush mount flange. Four additional programmable inputs. Guidance for specification option: Specify whether panel or network mounted. Eight additional programmable inputs. Guidance for specification option: Specify whether panel or network mounted. Four additional programmable outputs. Guidance for specification option: Specify whether panel or network mounted. Eight additional programmable outputs. Guidance for specification option: Specify whether panel or network mounted. None. |
Display | Standard 4.3" colour touch screen LCD display. 7" TFT LCD colour display. Guidance for specification option: Special order. 10" TFT LCD colour display. Guidance for specification option: Special order. 12" TFT LCD colour display. Guidance for specification option: Special order. |
Humidity | 80% RH (non-condensing). |
Weight | Typical: 16 kg. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel Glass |
