Acoustic Underlay - Isocheck Underwood system - Acoustic layer for under a timber floor
Verified by manufacturer 3 months ago
Impact improvement of engineered timber floors. Acoustic underlay for timber floor finishes.
Application

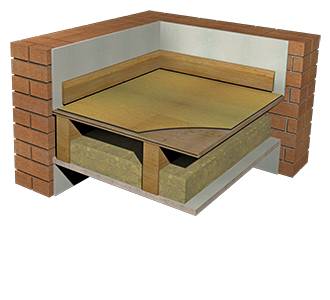

To be used over floorboards or concrete floors for conversions, refurbishments or listed buildings requiring minimal structural change.
Description

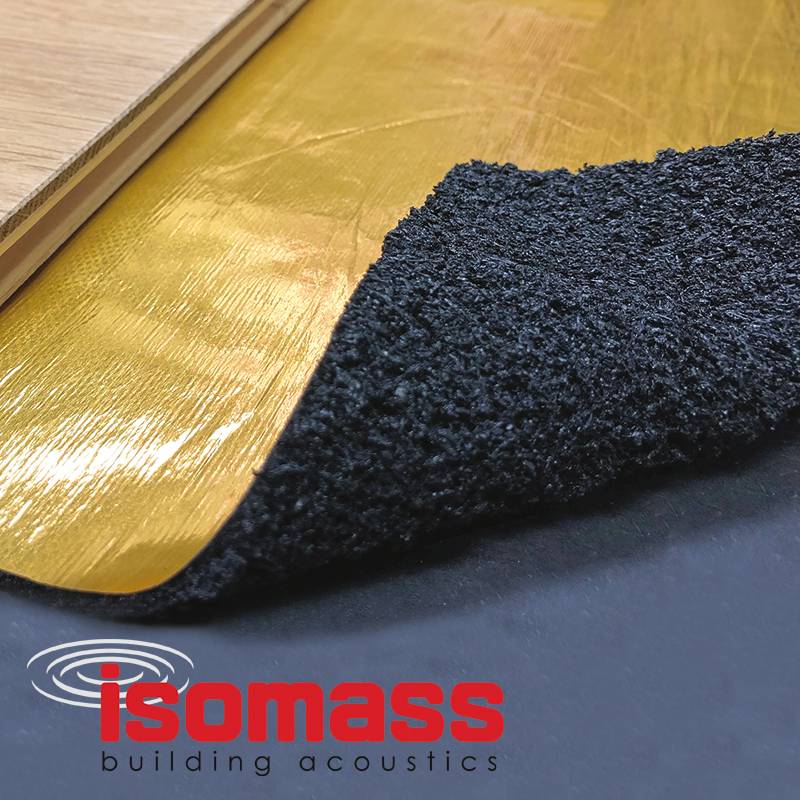

The Isocheck Underwood system is designed to be used under laminate and wood flooring. It is designed to provide resilience, durability and support to protect the floor covering against undue stress.
Isocheck Underwood is a lightweight, 3.5 mm thick layer of recycled rubber crumb (mainly vehicle tyres) bound together in a distinctive latex formulation. This high content of recycled raw materials ensures that the product has strong environmental credentials
Isocheck Underwood’s integrated metalised scrim ensures good resistance to moisture transmission thereby eliminating the need for an additional polythene sheet.
General information
Color | Black Silver Gold |
Finish | Foil |
Material | Rubber |
Length | 10000 mm |
Width | 1000 mm |
Height | 3.5 mm |
Uniclass | |
CAWS | K21/146 Laminate flooring K21/145 Composite laminate flooring K21/20 Composite laminated flooring K21/111 Wood floating floor K21/115 Wood laminate flooring K21/10 Wood laminate flooring |
Specification data - Resilient layer insulation
Material | Recycled rubber mat with integrated metalised scrim.Guidance for specification option: Recycled rubber crumb (mainly vehicle tyres) bound together in a latex formulation. |
Thickness | 3.5 mm. |
Sound insulation rating | Up to 26 dB (ΔLw).Guidance for specification option: Isocheck Underwood will typically achieve up to 26dB ΔLw in laboratory conditions. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Not recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature
Isocheck Underwood - Data Sheet v1.7
Isocheck Underwood - Safety Data Sheet
