Acoustic Isolation - Isocheck Re-Mat Isolating Strip - Masonry wall isolation strip
Verified by manufacturer 3 months ago
5 mm thick
5 mm thick
Structure borne noise improvement system for block walls. Acoustic Isolation Strip for masonry walls.
Application

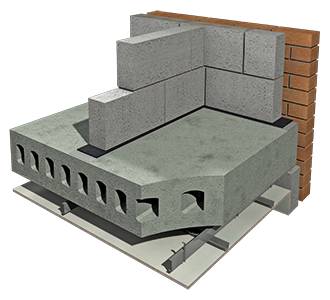

- Designed to be installed beneath blockwork walls to isolate the wall from the concrete.
- Suitable for new build, conversion and refurbishment.
Description

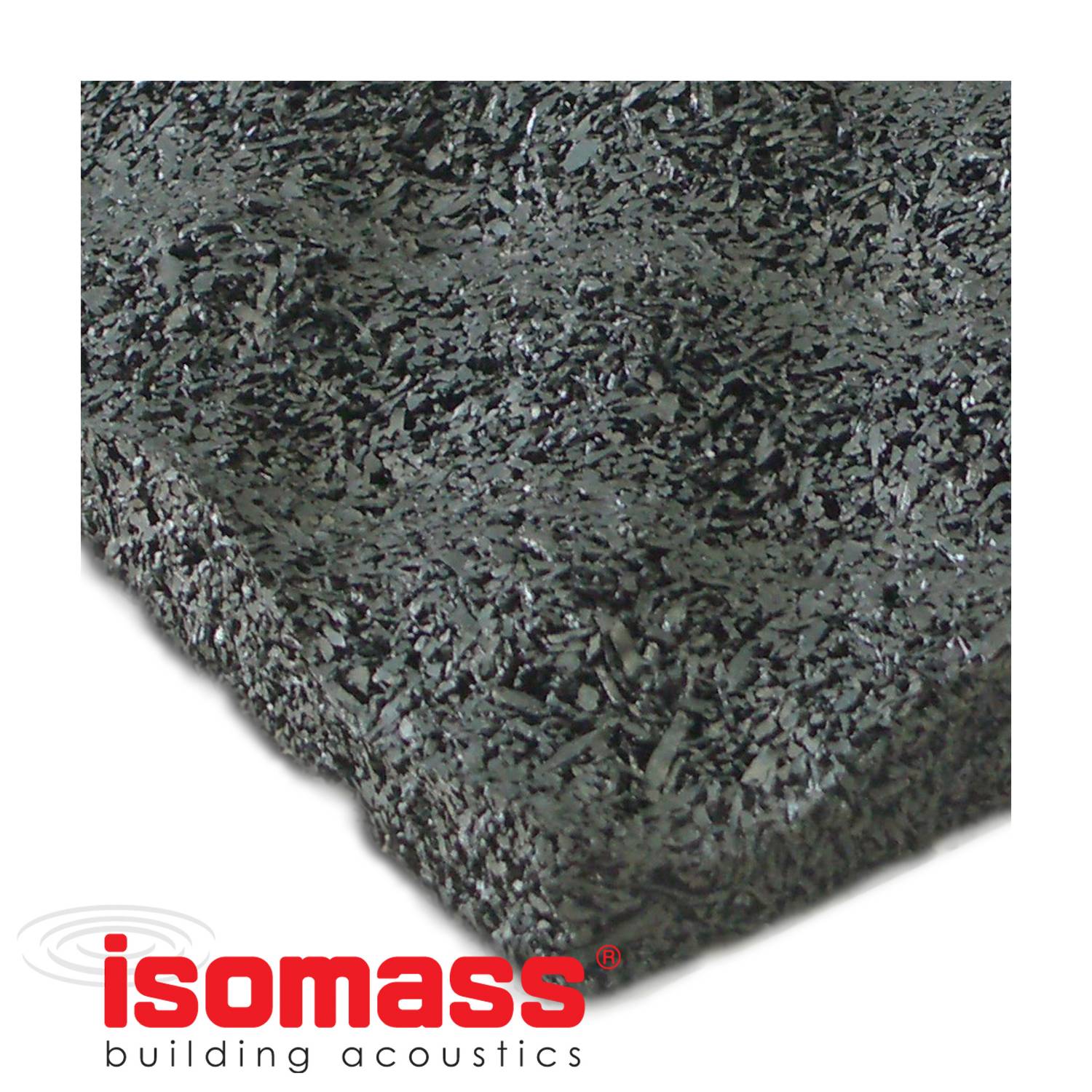

Isocheck Re-Mat Isolating Strips are designed to be installed beneath blockwork walls to isolate the wall from the concrete floor and reduce structure borne noise. The Isolating Strips are composed of a rubber crumb which provides stability and minimal creep.
Features and benefits:
- Offers long term performance without collapse or “bottoming” out under high load points.
- Resistant to ageing and deformation.
- Suitable for all types of projects.
- Slim thicknesses minimises construction heights.
- Wide range of thicknesses.
- Capable of withstanding loads up to and including 0.8 N/mm² with low frequency performance achieved.
- Completely recyclable.
General information
Color | Black |
Finish | Anti-skid |
Material | Rubber |
Shape | Rectangle |
Length | 1150 mm 1250 mm |
Width | 50 mm 75 mm 100 mm 120 mm 150 mm |
Height | 5 mm 6 mm |
Uniclass | |
CAWS | F30/185 Transmitted noise reduction system |
Specification data - Resilient layer insulation
Material | Rubber strip. |
Thickness | 5 mm. |
Fire performance | Flammability: Class B2. |
Load capacity | 0.8 N/mm². |
Temperature resistance | -40°C to +110°C. Guidance for specification option: Short term. |
Modulus of elasticity | 2.50–5.50 N/mm². |
Width | 50 mm. 75 mm. 100 mm. 120 mm. 150 mm. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Isocheck Re-Mat Isolation Strip - Data Sheet v3.13
Isocheck ReMat Isolation Strip - Safety Data Sheet
