Acoustic Floor - Isocheck Shallow Batten System - Non adjustable suspended acoustic floor

Verified by manufacturer 3 months ago

Isomass Ltd

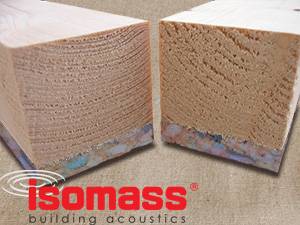

A softwood and acoustic chip foam (ACF) batten for concrete floors.

Jump to:
+44 (0)330 175 8228 Website

Application

Designed to be used over level concrete floors for new build projects, refurbishments and conversions.

Description

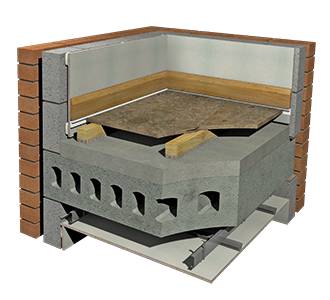

The Isocheck Shallow Batten system is designed to reduce sound transmission through a concrete structural sub-floor.


Isocheck Shallow Batten consists of a layer of 10 mm or 15 mm ACF (Acoustic Chip Foam) bonded to an FSC certified softwood batten. May be installed in conjunction with underfloor heating systems.


When installed as part of a complete party floor construction it enables a concrete floor to meet the sound transmission standards of ADE 2003 and subsequent amendments in 2004, 2010, 2013 and 2015.


Treated floor meets with the New Build Robust Detail descriptive FFT3, typically within Robust Details E-FC-1, E-FC-2, E-FC-7 and E-FS-1.

General information

Color

Beige

Material

Wood

Guidance for specification option:

Softwood batten.

Foam

Guidance for specification option:

Reconstituted ACF (Acoustic Chip Foam).

Shape

Rectangle

Length

1800 mm

Width

45 mm

Height

50 mm

Uniclass

Pr_20_76_88_47 Insulating timber floor battensPrimary

CAWS

K11/275 Acoustic separating floor system

K11/125 Battened particleboard floating floor

K11/20 Battened particleboard floating floor

Specification data - Insulating timber floor battens

General requirements

FSC-certified timber.

Size

45 x 50 mm.

Guidance for specification option:

15 mm ACF bonded to a 35 mm softwood batten.

Manufacturer guidance

Overall.

Shape

Rectangular.

Resilient layer

Acoustic chip foam (ACF).

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

Manufacturer guidance

Made with reconstituted foam.

Literature

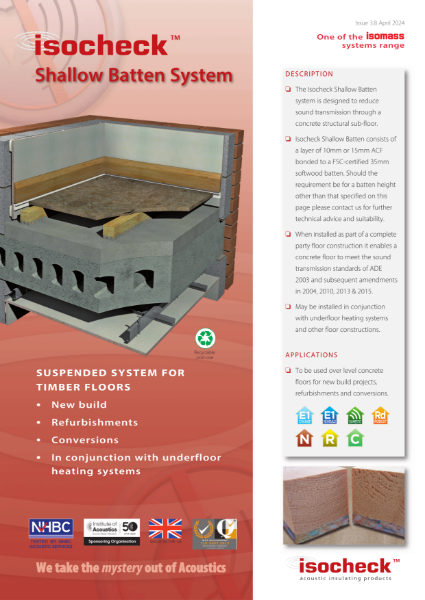

Isocheck Shallow Batten - Data Sheet v3.8

Isocheck Shallow Batten - Data Sheet v3.8

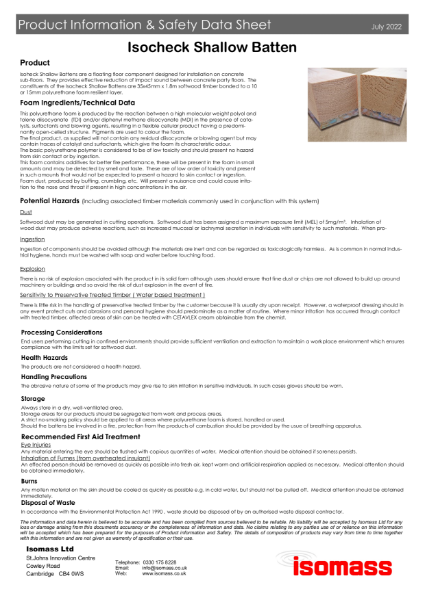

Isocheck Shallow Batten - Safety Data Sheet

Isocheck Shallow Batten - Safety Data Sheet

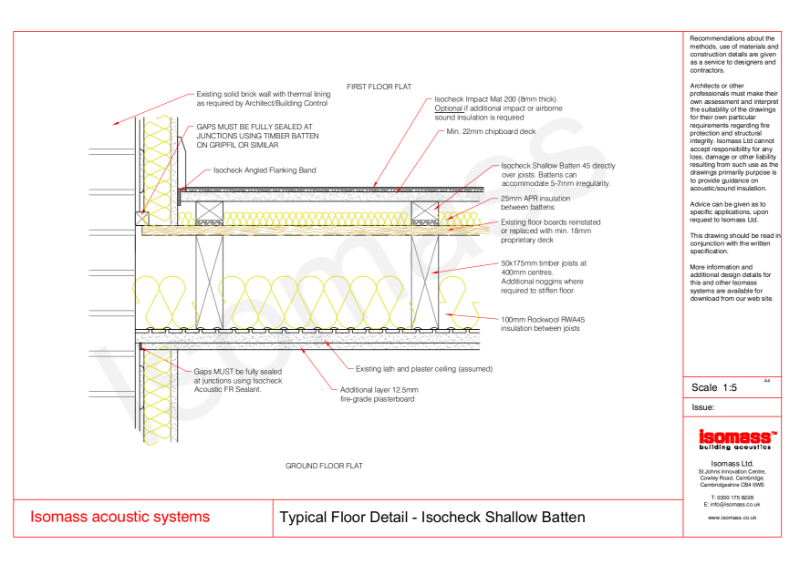

Typical Floor Detail - Isocheck Shallow Batten

Typical Floor Detail - Isocheck Shallow Batten

Similar products from Isomass Ltd

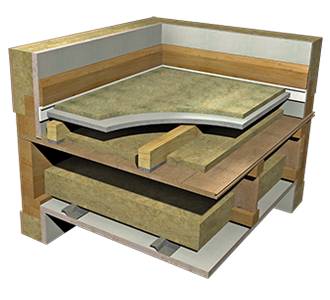

Acoustic floor - Isocheck Deep Batten System  - Non adjustable suspended acoustic floor
