ACO UniFace™ SS
Application

Designed for internal and external applications associated with commercial, private and public sector buildings, including:

  • Shopping centres.
  • Transport hubs.
  • Hospitals.
  • Schools.
  • Kitchens.
  • Warehousing.
  • Landscaping.

Manufactured and classified according to the FACTA specification.

Description

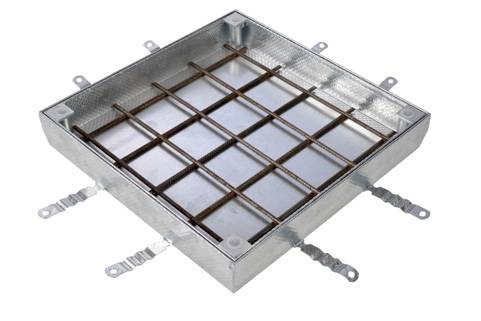

Stainless steel manual lift, high quality recessed floor access cover.

Benefits:

  • Provides a high quality finish.
  • Easy access to underlying services and ducting.
  • Manufactured using recycled materials.
  • Lightweight tray design.
  • Suitable for pedestrian, light vehicle and medium duty forklift truck areas.
  • Reinforcement provided for long-term durability and performance.
  • Durable, 4 mm steel edges blend discreetly with floor finishes.
  • Easily removed with four corner locking and lifting positions.
  • Stainless steel locking bolts provided to ensure safety.
  • Liquid- and odour-tight EPDM seals included.
  • Two lifting/ locking keys provided.
  • Concrete ties securely anchor frame, eliminating movement.
  • Wide range of sizes available for clear openings of 300–1200 mm.
  • Can be used on a variety of floor finishes, including concrete, epoxy surfaces, terrazzo, ceramic tiles, carpets and wood.
  • Suitable for floor finishes of up to 15 mm thickness.

Applications:

Designed for internal and external applications associated with commercial, private and public sector buildings, including:

  • Shopping centres.
  • Transport hubs.
  • Hospitals.
  • Schools.
  • Kitchens.
  • Warehousing.
  • Landscaping.

Manufactured and classified according to the FACTA specification.

General information

Material

Stainless steel, grade 1.4301 (304)

Manufacturer's standard.

Stainless steel, grade 1.4401 (316)

Special order.

Uniclass 2015

Pr_65_52_01_02 Access covers and framesPrimary

CAWS

P30/301 Access covers/ manhole tops and frames

Specification data - Access covers and frames

Product Reference

UniFace™ SS

Type

See 'Options' below and insert product reference.

Material

Stainless steel, grade 1.4301 (304)

Manufacturer's standard.

Stainless steel, grade 1.4401 (316)

Special order.

Locking

Two point

Four point

Accessories/ Other requirements

Not required

Spare lifting/ locking key set (2 x keys), 416960

Spare locking screw and dust cap set (4 x screws and dust caps), 416961

Standard product features

Material:

Stainless steel grade 304, EPDM seals and stainless steel grade 304 locking screws.

Frame depth:

83 mm.

Internal tray depth:

70–110 mm. See manufacturer's literature for information.

Load testing and FACTA class:

- Class B:

  • Maximum wheel load (pneumatic tyres): 5 t.
  • Maximum wheel load (solid tyres): 0.75 t.
  • Gross Laden Vehicle Weight (GLVW): Up to 25 t.

- Class C:

  • Maximum wheel load (pneumatic tyres): 6.5 t.
  • Maximum wheel load (solid tyres): 1 t.
  • Gross Laden Vehicle Weight (GLVW): Up to 38 t.

- Class D:

  • Maximum wheel load (pneumatic tyres): 11 t.
  • Maximum wheel load (solid tyres): 3 t.
  • Gross Laden Vehicle Weight (GLVW): Up to 44 t.

Product Options

Type:

  • 415887: UniFace™ SS 300 x 300 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 415888: UniFace™ SS 400 x 400 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 415889: UniFace™ SS 600 x 400 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 415890: UniFace™ SS 450 x 450 mm Stainless Steel Double Sealed Access Cover - FACTA Class C.
  • 415891: UniFace™ SS 500 x 500 mm Stainless Steel Double Sealed Access Cover - FACTA Class C.
  • 415892: UniFace™ SS 600 x 600 mm Stainless Steel Double Sealed Access Cover - FACTA Class C.
  • 415893: UniFace™ SS 800 x 600 mm Stainless Steel Double Sealed Access Cover - FACTA Class C.
  • 415894: UniFace™ SS 1000 x 600 mm Stainless Steel Double Sealed Access Cover - FACTA Class C.
  • 415895: UniFace™ SS 1200 x 600 mm Stainless Steel Double Sealed Access Cover - FACTA Class C.
  • 415896: UniFace™ SS 635 x 635 mm Stainless Steel Double Sealed Access Cover - FACTA Class B.
  • 415897: UniFace™ SS 700 x 700 mm Stainless Steel Double Sealed Access Cover - FACTA Class B.
  • 415898: UniFace™ SS 800 x 800 mm. Stainless Steel Double Sealed Access Cover - FACTA Class B.
  • 415899: UniFace™ SS 1000 x 800 mm Stainless Steel Double Sealed Access Cover - FACTA Class B.
  • 415900: UniFace™ SS 1000 x 1000 mm Stainless Steel Double Sealed Access Cover - FACTA Class B.
  • 415901: UniFace™ SS 450 x 450 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 415902: UniFace™ SS 500 x 500 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 415903: UniFace™ SS 600 x 600 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 415904: UniFace™ SS 800 x 600 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 415905: UniFace™ SS 1000 x 600 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 415906: UniFace™ SS 635 x 635 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 415907: UniFace™ SS 700 x 700 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 415908: UniFace™ SS 800 x 800 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 415909: UniFace™ SS 1000 x 800 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 415910: UniFace™ SS 1000 x 1000 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 445669: UniFace™ SS 600 x 450 mm Stainless Steel Double Sealed Access Cover - FACTA Class C.
  • 445671: UniFace™ SS 600 x 450 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 445673: UniFace™ SS 750 x 600 mm Stainless Steel Double Sealed Access Cover - FACTA Class C.
  • 445675: UniFace™ SS 750 x 600 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 445677: UniFace™ SS 750 x 750 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 445681: UniFace™ SS 900 x 900 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
  • 445751: UniFace™ SS 900 x 600 mm Stainless Steel Double Sealed Access Cover - FACTA Class C.
  • 445753: UniFace™ SS 900 x 600 mm Stainless Steel Double Sealed Access Cover - FACTA Class D.
