ACO UniFace™ AL SHALLOW VINYL
Application

Suitable for pedestrian, trolley and light-duty car/ van traffic applications. Vinyl flooring and vinyl safety flooring in the following locations:

  • Hospitals.
  • Offices.
  • Residential areas.
  • Leisure facilities.
  • Swimming pools.

Manufactured and classified according to the FACTA specification.

Description

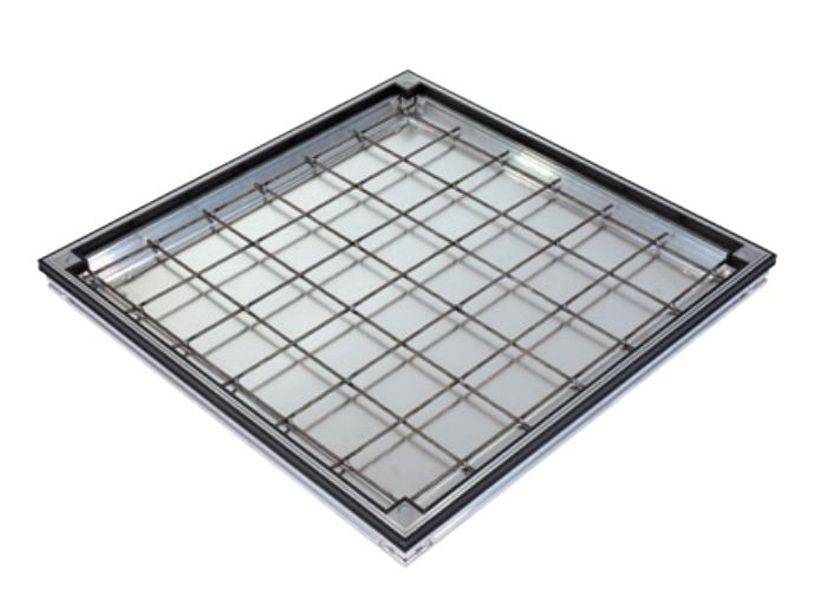

High quality aluminium single recessed floor covers designed for 2–4 mm thick flexible vinyl floor finishes, where a durable welded sealed joint is required between the floor finish and access cover. Integral weldable Polyvinyl Chloride (PVC) trim supplied fitted to the cover and frame ensures vinyl floor installation is quick and simple.

The 50 mm frame depth makes it suitable where installation depths are restricted. A wide range of size options available for clear openings of between 200–1200 mm.

Features and benefits:

  • Two lifting/ locking keys and installation manual provided with each access cover.
  • Reinforcement provided for long term durability and performance.
  • Integral 5 mm wide weldable PVC cover and frame trim for sealed and durable floor joints.
  • 50 mm deep lightweight aluminium frame and cover construction.
  • Easy removal with four corner locking/ lifting positions and stainless steel locking bolts and dust caps as standard.
  • High-performance triple Ethylene Propylene Diene Monomer (EPDM) seals for liquid, odour and dust-tight applications.
  • Aesthetic 4 mm aluminium edges blend discreetly with floor finishes.
  • FACTA Class: AA (Up to 5 tonnes).

Applications:

Suitable for pedestrian, trolley and light-duty car/ van traffic applications. Vinyl flooring and vinyl safety flooring in the following locations:

  • Hospitals.
  • Offices.
  • Residential areas.
  • Leisure facilities.
  • Swimming pools.

Manufactured and classified according to the FACTA specification.

General information

Material

Aluminium construction, weldable PVC trim, EPDM seals and stainless steel grade 304 locking screws

Uniclass 2015

Pr_65_52_01_02 Access covers and framesPrimary

CAWS

P30/301 Access covers/ manhole tops and frames

P31/370 Access covers/ gratings for

Specification data - Access covers and frames

Product Reference

UniFace™ AL SHALLOW VINYL

Type

See 'Options' below and insert product reference.

Accessories/ Other requirements

Not required

Spare lifting/ locking key set (2 x keys), 415571

Spare locking screw and dust cap set (4 x screws and dust caps), 416959

Standard product features

Material:

Aluminium construction, weldable PVC trim, EPDM seals and stainless steel grade 304 locking screws.

Frame depth:

50 mm.

Internal tray depth:

47 mm.

Load testing and FACTA class:

- Class AA:

  • Maximum wheel load (pneumatic tyres): 1.5 t.
  • Maximum wheel load (solid tyres): N/A.
  • Gross Laden Vehicle Weight (GLVW): Up to 5 t.

Product Options

Type:

  • 107260: UniFace™ AL SHALLOW VINYL - 200 x 200 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107261: UniFace™ AL SHALLOW VINYL - 300 x 300 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107262: UniFace™ AL SHALLOW VINYL - 400 x 400 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107263: UniFace™ AL SHALLOW VINYL - 450 x 450 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107264: UniFace™ AL SHALLOW VINYL - 500 x 500 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107265: UniFace™ AL SHALLOW VINYL - 600 x 400 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107266: UniFace™ AL SHALLOW VINYL - 600 x 450 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107267: UniFace™ AL SHALLOW VINYL - 600 x 600 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107268: UniFace™ AL SHALLOW VINYL - 635 x 635 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107269: UniFace™ AL SHALLOW VINYL - 700 x 700 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107270: UniFace™ AL SHALLOW VINYL - 750 x 600 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107271: UniFace™ AL SHALLOW VINYL - 750 x 750 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107272: UniFace™ AL SHALLOW VINYL - 800 x 600 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107273: UniFace™ AL SHALLOW VINYL - 800 x 800 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107274: UniFace™ AL SHALLOW VINYL - 900 x 600 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107275: UniFace™ AL SHALLOW VINYL - 900 x 900 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107276: UniFace™ AL SHALLOW VINYL - 1000 x 600 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107277: UniFace™ AL SHALLOW VINYL - 1000 x 800 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107278: UniFace™ AL SHALLOW VINYL - 1000 x 1000 mm aluminium triple sealed access cover - FACTA Class AA.
  • 107279: UniFace™ AL SHALLOW VINYL - 1200 x 600 mm aluminium triple sealed access cover - FACTA Class AA.
