ACO Threshold Drain
Application

Designed for use in domestic properties with level thresholds to eliminate any water from pooling at external doors.

Description

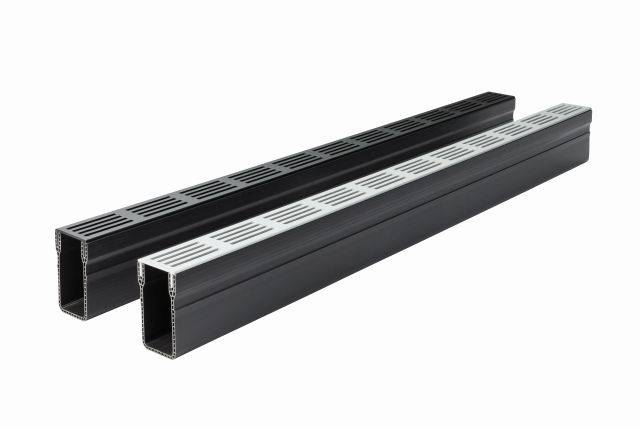

Discreet, 60 mm wide drainage system with a choice of aluminium grate, and casing manufactured from extruded plastic.

Features and benefits:

  • Easy to install.
  • Can be connected to domestic soakaways by a 80 mm diameter pipe.
  • The removable Heelguard™ grating design means that footwear won't become lodged in the grate - the slits are too narrow.
  • Compliant with Part M of the Building Regulations for England and Wales, and Section 4 of the Scottish Building Standards.
  • CE marked, and fully certified to Load Class A 15 (BS EN 1433: 2002).

Applications:

Designed for use in domestic properties with level thresholds to eliminate any water from pooling at external doors.

General information

Material

Aluminium

Uniclass 2015

Pr_65_52_24_24 Drainage channels with gratingsPrimary

CAWS

Q10/180 Drainage channel systems with gratings

Q10/30 Drainage channel system

Specification data - Drainage channels with gratings

Product Reference

ACO Threshold Drain

Colour

Black (19005)

Silver (19000)

Accessories

Not required

Bottom connector (19001)

100 x 100 x 70 mm (l x w x d).

Closing end cap (19004)

20 x 61 x 100 mm (l x w x d).

80 mm diameter bottom outlet (19002)

100 x 61 x 70 mm (l x w x d).

Standard product features

Material:

Aluminium.

Size (l x w x d):

1000 x 61 x 100 mm.

Invert:

93 mm.

Weight:

1.63 kg.

Literature
